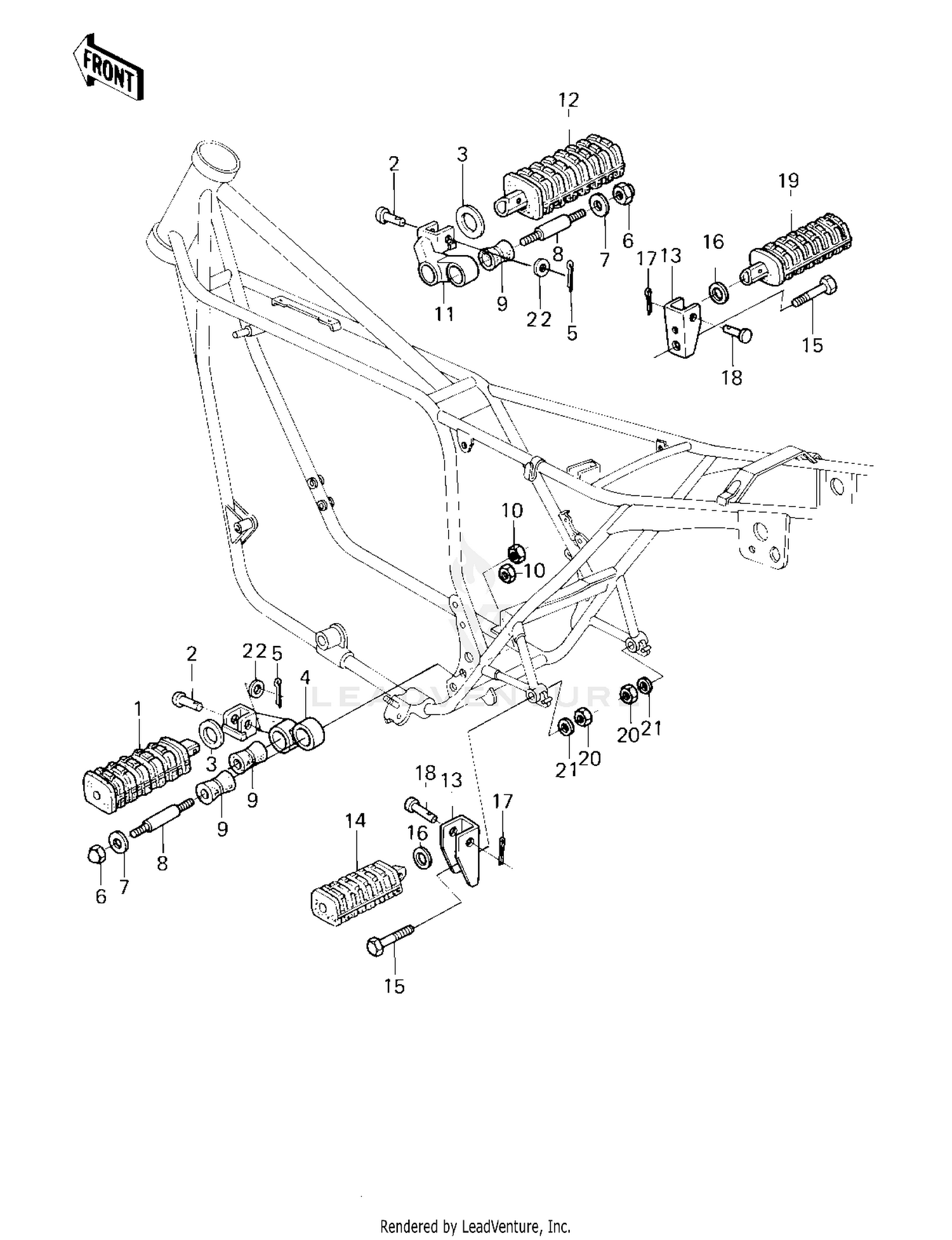

| Ref | Part Number | Description |
|---|
| 1 |
34027-5062 |
STEP-ASSY This part replaces 34028-1018. Price: $75.33 |
| 2 |
92043-115 |
PIN,8X35.5 Price: $9.51 |
| 3 |
92022-250 |
WASHER,25X36X2.3 Price: $5.00 |
| 4 |
34003-1055 |
HOLDER,L H FIRST STEP Price: $72.19 |
| 5 |
550D2516 |
PIN COTTER 2.5X16 Price: $2.79 |
| 6 |
92019-013 |
NUT,CAP AND LOCK,8MM Price: $14.88 |
| 7 |
92102-010 |
CAP,FOOTRESTBAR Price: $8.49 |
| 8 |
92004-048 |
STUD,FOOTREST BAR FIT Price: $14.37 |
| 9 |
92075-140 |
DAMPER RUBBER,FOOTRST Price: $11.03 |
| 10 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 11 |
34003-1056 |
HOLDER,R.H FTRST STEP Price: $52.52 |
| 12 |
34027-5062 |
STEP-ASSY This part replaces 34028-1018. Price: $75.33 |
| 13 |
32054-1021 |
BRACKET,STEP Price: $24.97 |
| 14 |
34028-1009 |
STEP,FOOTREST,REAR,LH Price: $35.18 |
| 15 |
113N1060 |
BOLT-HEX HEAD,10X60 This part replaces 113B1060. Price: $13.63 |
| 16 |
92022-181 |
WASHER-PLAIN Price: $7.33 |
| 17 |
550AA2012 |
PIN,COTTER,2.0X12 This part replaces 550D2012. Price: $1.11 |
| 18 |
92043-1464 |
PIN,6X28 Price: $8.10 |
| 19 |
34028-1010 |
STEP,FOOTREST,REAR,RH Price: $35.18 |
| 20 |
92210-1184 |
NUT,LOCK,10MM This part replaces 92019-021. Price: $6.11 |
| 21 |
411AA1000 |
WASHER-PLAIN,10MM This part replaces 411B1000. Price: $0.96 |
