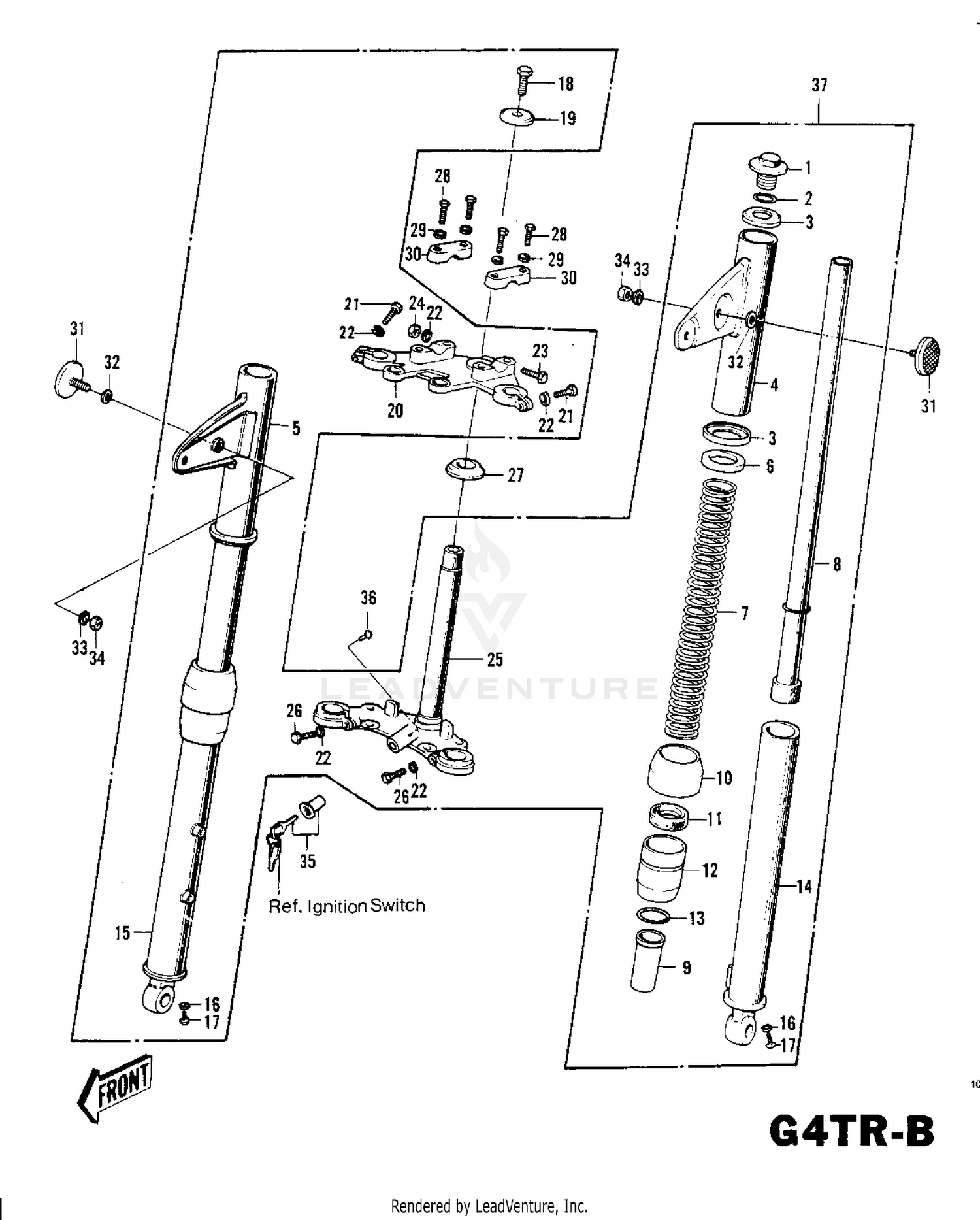

| Ref | Part Number | Description |
|---|
| 1 |
44041-036 |
BOLT-FORK TOP Price: $17.14 |
| 3 |
44043-035 |
WASHER FORK COVER Price: $6.50 |
| 4 |
44033-042-21 |
COVER-L.H FORK,BLACK Price: $32.57 |
| 5 |
44034-041-21 |
COVER-R.H FORK,BLACK Price: $32.57 |
| 6 |
44045-012 |
GASKET FORK COVER Price: $4.11 |
| 7 |
44026-040 |
SPRING-FORK Price: $40.19 |
| 8 |
44013-034 |
TUBE-FORK INNER Price: $186.56 |
| 9 |
44015-013 |
GUIDE-FORK INNER TUBE Price: $29.78 |
| 10 |
44010-006 |
DUST SHIELD FORK Price: $43.93 |
| 11 |
92049-1049 |
OIL SEAL Price: $21.20 |
| 12 |
44007-007 |
NUT FORK OUTER TUBE Price: $59.31 |
| 14 |
44005-043 |
TUBE,LH,FORK OUTER Price: $109.61 |
| 15 |
44006-041 |
TUBE,RH,FORK OUTER Price: $134.16 |
| 16 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 17 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 18 |
44041-007 |
BOLT STRNG STEM HEAD Price: $16.04 |
| 19 |
44043-016 |
WASHER STRNG STEM HD Price: $10.99 |
| 20 |
44039-043 |
HEAD-STEERING STEM Price: $107.49 |
| 21 |
44041-039 |
BOLT-HEX HEAD 10MM Price: $4.64 |
| 22 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 23 |
44041-041 |
BOLT-HEX HEAD,10X30 Price: $4.95 |
| 24 |
314N1000 |
NUT-HEX-FINE,10MM Price: $0.87 |
| 25 |
44037-045 |
STEM-STEERING Price: $105.95 |
| 26 |
44041-010 |
BOLT PINCH Price: $4.59 |
| 27 |
92047-004 |
CONE LOWER BEARING Price: $16.97 |
| 28 |
92001-1405 |
BOLT 8X38 Price: $16.50 |
| 29 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 30 |
46012-1252 |
HOLDER-HANDLE,UPP This part replaces 46012-004. Price: $13.44 |
| 31 |
28001-011 |
REFLECTOR-REFLEX,FRNT Price: $22.07 |
| 32 |
410AA0500 |
WASHER-PLAIN-SMALL This part replaces 411B0500. Price: $0.47 |
| 33 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 34 |
311AA0500 |
NUT-HEX,5MM This part replaces 311B0500. Price: $0.47 |
| 35 |
27016-5025 |
LOCK ASSY,STEERING Price: $35.96 |
| 36 |
92099-001 |
SCREW RIVET Price: $3.89 |
