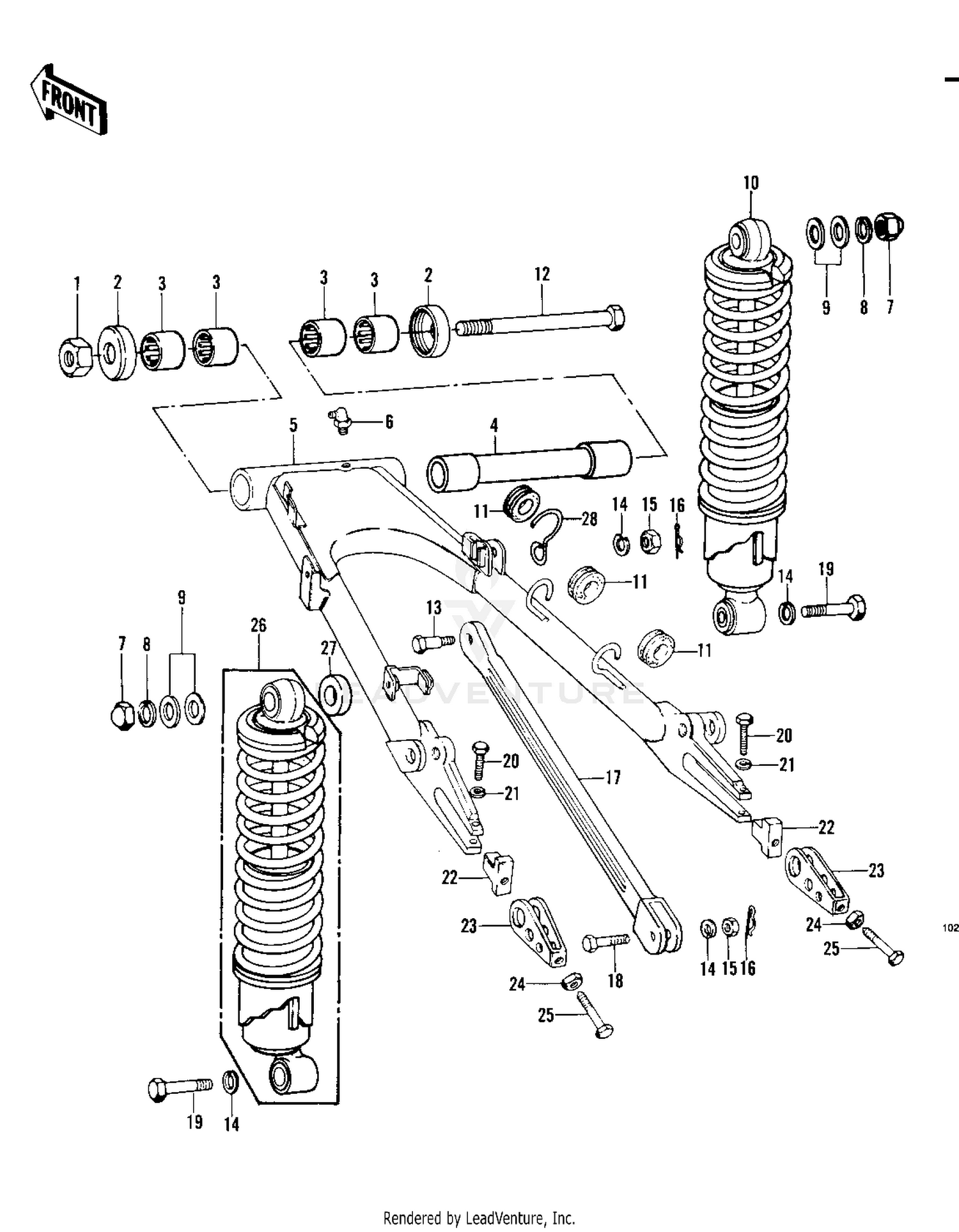

| Ref | Part Number | Description |
|---|
| 1 |
92019-012 |
NUT-SELF LOCKING Price: $25.70 |
| 2 |
33035-009 |
CAP,SWING ARM Price: $17.85 |
| 3 |
92046-1115 |
BEARING-NEEDLE,HK2216 Price: $20.02 |
| 4 |
42036-1011 |
SLEEVE,SWING ARM Price: $194.17 |
| 5 |
33001-1008 |
SWING ARM Price: $239.47 |
| 6 |
92005-002 |
GREASE NIPPLE Price: $8.07 |
| 7 |
92020-014 |
NUT 12MM Price: $9.45 |
| 8 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 9 |
410AA1200 |
WASHER-PLAIN-SMALL,12MM This part replaces 410B1200. Price: $0.72 |
| 11 |
43064-007 |
GROMMET,HOSE CLAMP Price: $5.52 |
| 12 |
33032-036 |
SHAFT,SWING ARM PIVOT Price: $64.39 |
| 13 |
92003-218 |
BOLT,HEX HEAD,10X39 Price: $7.58 |
| 14 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 15 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 16 |
554DA0800 |
PIN-SNAP This part replaces 554A0800. Price: $1.36 |
| 17 |
43007-049 |
TORQUE LINK,REAR HUB Price: $52.17 |
| 18 |
92001-1145 |
BOLT,10X47 Price: $6.96 |
| 19 |
112N1035 |
BOLT-UPSET This part replaces 113N1035. Price: $9.83 |
| 20 |
92002-1838 |
BOLT,FLANGED,8X40 This part replaces 110G0840. Price: $8.19 |
| 21 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 22 |
33044-001 |
STOPPER,CHAIN ADJUST Price: $40.02 |
| 23 |
33040-066 |
ADJUSTER,CHAIN Price: $30.91 |
| 24 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 25 |
92001-143 |
BOLT-CHN ADJUST 10MM Price: $19.74 |
| 27 |
92026-4001 |
SPACER,LH REAR SHOCK Price: $3.84 |
