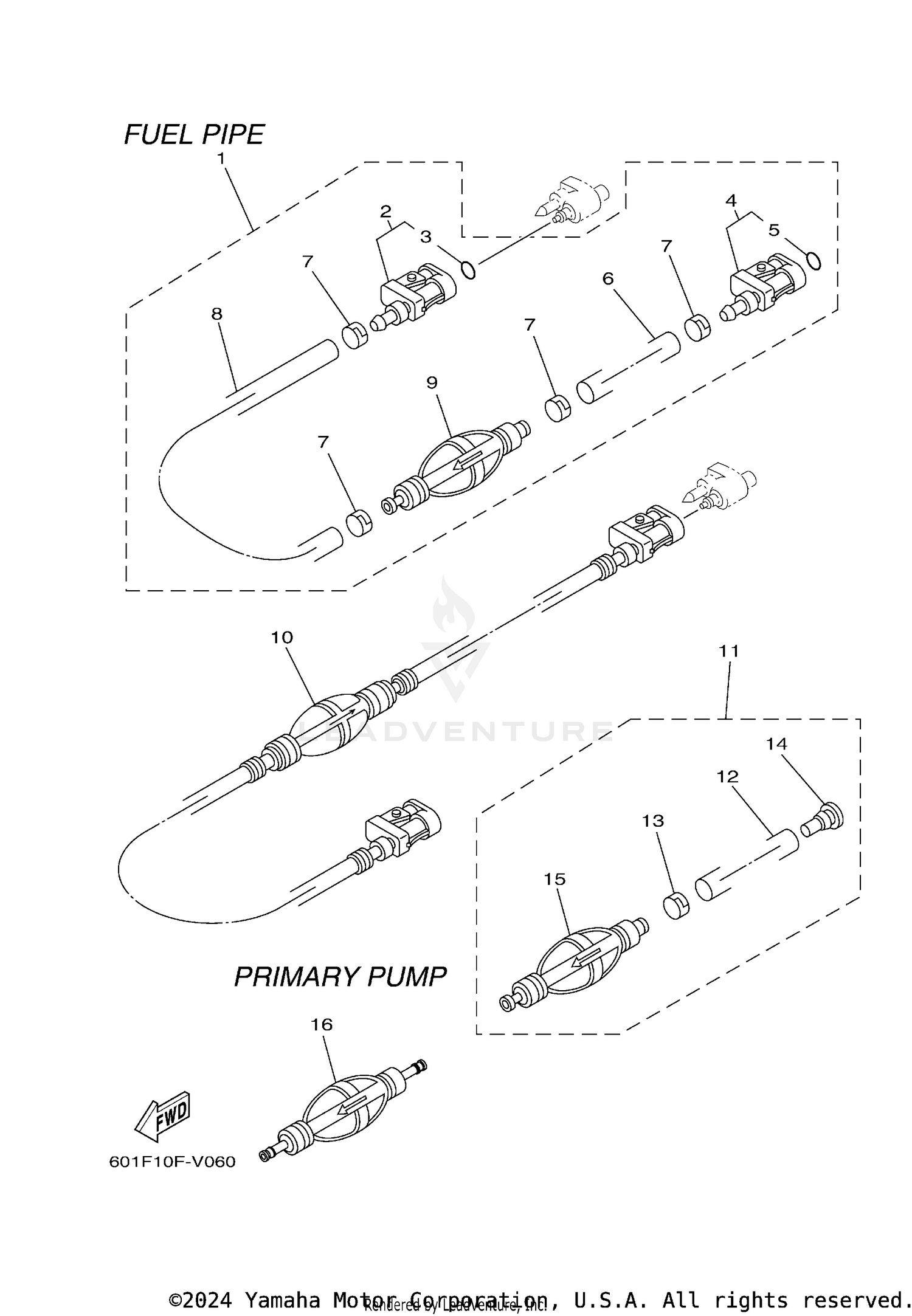

FUEL PIPE
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 6G1-24305-05-00 | FUEL PIPE JOINT COMP Price: $28.40 |
| 3 | 93210-08287-00 | O-RING Price: $5.35 |
| 4 | 6Y1-24305-06-00 | FUEL PIPE JOINT COMP Price: $25.50 |
| 5 | 93210-08287-00 | O-RING Price: $5.35 |
| 6 | 90445-11M58-00 | HOSE (L2050) Price: $33.50 |
| 7 | 650-24351-51-00 | BAND 1 Price: $2.70 |
| 10 | 6YK-24306-64-00 | FUEL PIPE COMP. 1 Price: $115.15 |
| 11 | 6Y2-24307-52-00 | FUEL PIPE COMP. 2 Price: $159.65 |
| 13 | 6E5-24351-51-00 | BAND 1 Price: $10.40 |
| 14 | 90480-06M19-00 | GROMMET Price: $5.35 |
| 15 | 6YK-24360-73-00 | PRIMER PUMP ASSY This part replaces 6Y2-24360-60-00. Price: $42.45 |
