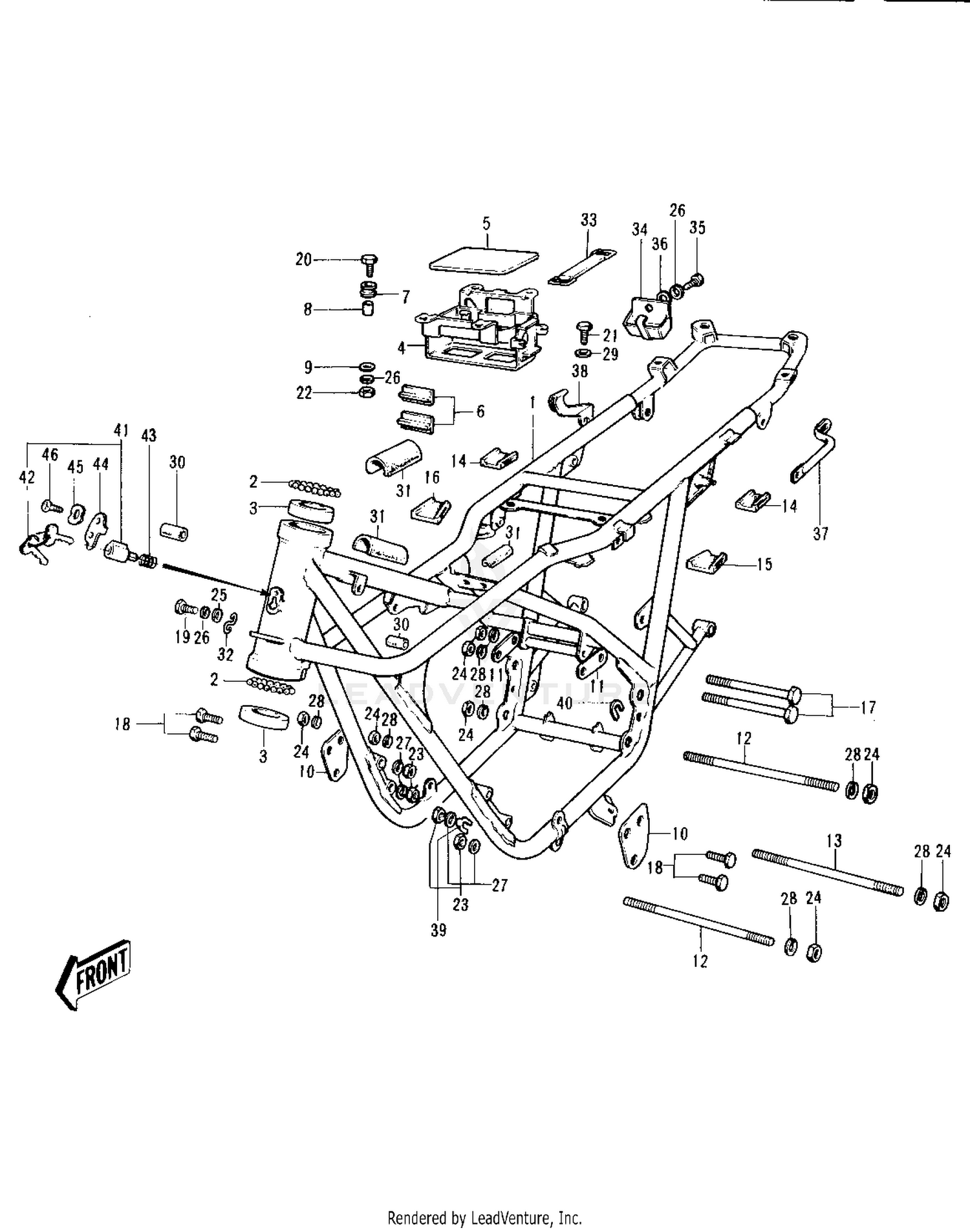

| Ref | Part Number | Description |
|---|
| 1 |
32002-061 |
FRAME Price: $595.18 |
| 2 |
600A0800 |
BALL-STEEL,1/4 Price: $0.62 |
| 3 |
92048-0036 |
RACE,STEERING STEM BEARING This part replaces 92048-006. Price: $11.61 |
| 4 |
32099-008 |
CASE-BATTERY Price: $42.61 |
| 5 |
32103-006 |
MAT BATTERY Price: $5.56 |
| 6 |
32103-003 |
SEAT RECTIFIER RUBBER Price: $8.41 |
| 7 |
92075-076 |
DAMPER RUBBER Price: $4.78 |
| 8 |
92027-129 |
COLLAR,6.8X10X8.5 Price: $5.00 |
| 9 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 10 |
32030-022 |
PLATE-ENGINE MOUNT Price: $5.71 |
| 11 |
32030-023 |
PLATE-ENGINE MOUNT Price: $12.57 |
| 12 |
92003-182 |
BOLT,10X237 Price: $10.92 |
| 13 |
92003-181 |
BOLT,10X225 Price: $12.57 |
| 14 |
31082-007 |
RUBBER PAD Price: $6.51 |
| 15 |
31082-008 |
RUBBER PAD Price: $7.19 |
| 16 |
31082-009 |
RUBBER PAD Price: $9.44 |
| 17 |
92001-1602 |
BOLT,FLANGED,10X110 Price: $11.07 |
| 18 |
92001-1182 |
BOLT,10X45 Price: $10.86 |
| 19 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
| 20 |
112BA0622 |
BOLT-UPSET This part replaces 112B0622. Price: $3.74 |
| 21 |
220AA0614 |
SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48 |
| 22 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 23 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 24 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 25 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 26 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 27 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 28 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 29 |
464H0600 |
WASHER LOCK 6MM Price: $0.68 |
| 30 |
92075-044 |
DAMPER RUBBER Price: $5.11 |
| 31 |
51067-002 |
MAT FUEL TANK Price: $17.44 |
| 32 |
92037-108 |
CLAMP Price: $8.79 |
| 33 |
92071-012 |
GROMMET HARNESS 22MM Price: $4.48 |
| 34 |
32132-001 |
COVER-SPARK PLUG Price: $2.61 |
| 35 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 36 |
92022-024 |
WASHER,7X16X1.2 Price: $3.65 |
| 37 |
32109-013 |
FRAME GRIP Price: $20.82 |
| 38 |
32122-006 |
BRACKET-HELMET HOLDER Price: $3.12 |
| 39 |
92025-049 |
SHIM-ENG FIT RR,0.8MM Price: $0.81 |
| 39 |
92025-050 |
SHIM-ENG FIT RR,1.0MM Price: $0.81 |
| 39 |
92025-051 |
SHIM-ENG FIT RR,1.6MM Price: $0.81 |
| 39 |
92025-052 |
SHIM-ENG FIT RR,2.0MM Price: $0.81 |
| 40 |
92025-053 |
SHIM-ENG FIT FR,0.5MM Price: $3.96 |
| 40 |
92025-054 |
SHIM-ENG FIT FR,0.8MM Price: $3.64 |
| 40 |
92025-055 |
SHIM-ENG FIT FR,1.0MM Price: $3.22 |
| 40 |
92025-056 |
SHIM-ENG FIT FR,1.6MM Price: $2.25 |
| 40 |
92025-057 |
SHIM-ENG FIT FR,2.0MM Price: $4.39 |
| 40 |
92025-058 |
SHIM-ENG FIT FR,2.3MM Price: $5.41 |
| 41 |
27016-030 |
LOCK ASSY-STEERING Price: $20.87 |
| 42 |
27018-016-65 |
KEY SET,#265 Price: $6.23 |
| 42 |
27018-016-79 |
KEY SET,#279 Price: $6.48 |
| 43 |
27032-001 |
SPRING-STEERING LOCK Price: $5.25 |
| 44 |
11012-1134 |
CAP,STEERING LOCK Price: $6.87 |
| 45 |
92097-003 |
WASHER,WAVE Price: $4.50 |
