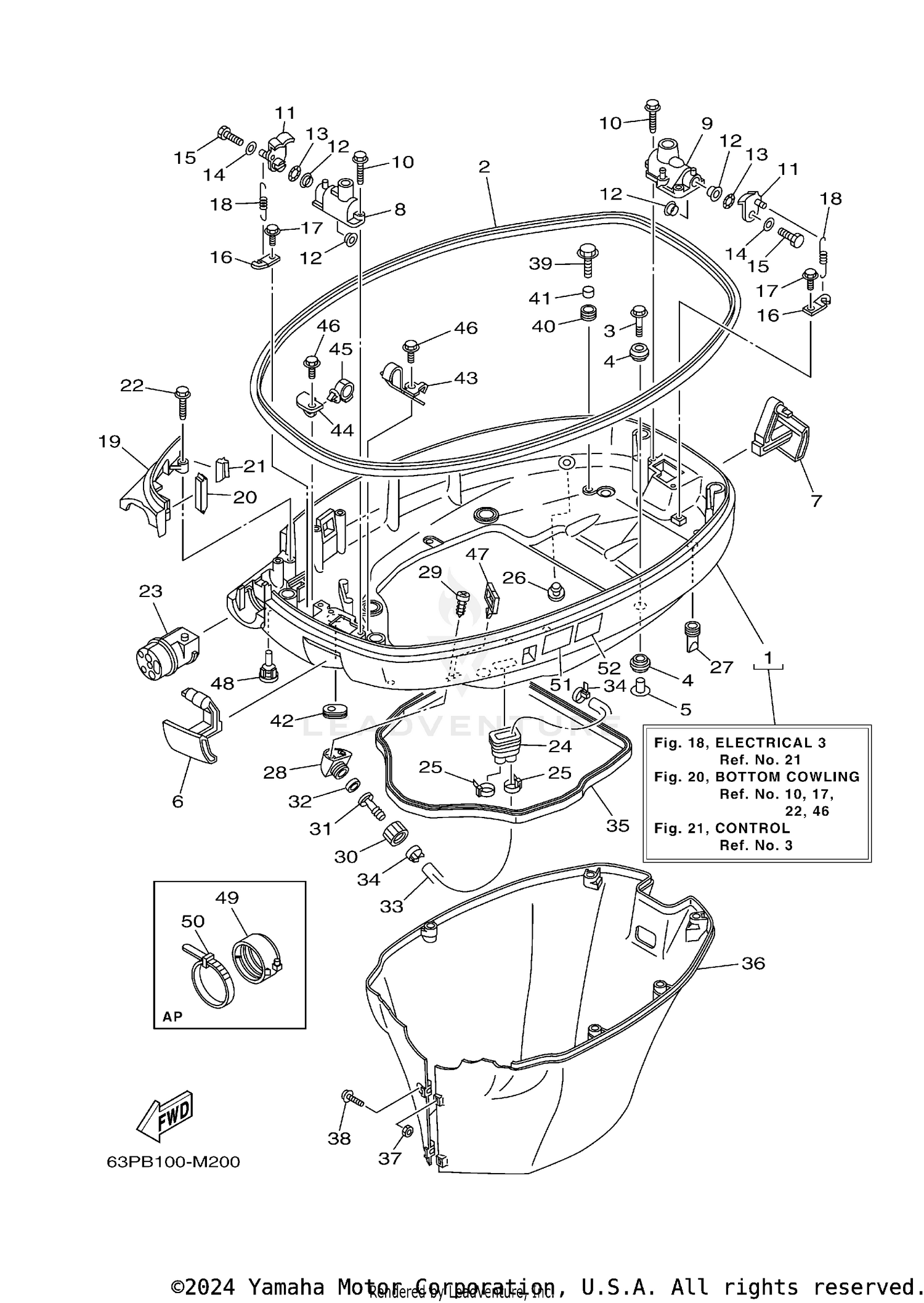

| Ref | Part Number | Description |
|---|
| 1 |
63P-42710-01-8D |
BOTTOM COWLING ASSY Price: $764.55 |
| 2 |
63P-42615-00-00 |
SEAL Price: $130.65 |
| 3 |
90119-08187-00 |
BOLT, WITH WASHER This part replaces 90119-08M22-00. Price: $3.49 |
| 4 |
90480-22M81-00 |
GROMMET Price: $4.80 |
| 5 |
90387-08M37-00 |
COLLAR Price: $11.40 |
| 6 |
63P-42815-00-8D |
LEVER, CLAMP Price: $48.00 |
| 7 |
63P-42816-00-8D |
LEVER, CLAMP Price: $59.80 |
| 8 |
68F-42828-03-9S |
PLATE, CLAMP Price: $65.75 |
| 9 |
63P-42828-00-9S |
PLATE, CLAMP Price: $71.70 |
| 10 |
90109-06M82-00 |
BOLT Price: $2.90 |
| 11 |
63P-42818-01-00 |
LEVER, CLAMP 4 Price: $48.85 |
| 12 |
90386-15M73-00 |
BUSH Price: $8.10 |
| 13 |
90206-15M18-00 |
WASHER, WAVE Price: $5.95 |
| 14 |
90201-06M02-00 |
WASHER, PLATE This part replaces 90201-06068-00. Price: $2.55 |
| 15 |
97080-06020-00 |
BOLT This part replaces 97095-06020-00. Price: $4.50 |
| 16 |
64D-43144-00-00 |
HOOK, SPRING Price: $6.15 |
| 17 |
90109-06M86-00 |
BOLT Price: $1.81 |
| 18 |
90506-16M34-00 |
SPRING, TENSION Price: $5.95 |
| 19 |
63P-42738-00-8D |
PLATE, FITTING Price: $72.05 |
| 20 |
63P-42717-00-00 |
RUBBER, SEAL 2 Price: $7.40 |
| 21 |
63P-42718-00-00 |
RUBBER, SEAL 3 Price: $7.40 |
| 22 |
90109-06M82-00 |
BOLT Price: $2.90 |
| 23 |
63P-42725-01-00 |
GROMMET This part replaces 63P-42725-00-00. Price: $38.60 |
| 24 |
6H1-42726-22-00 |
GROMMET This part replaces 6H1-42726-21-00. Price: $6.70 |
| 25 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 26 |
6P2-44391-00-00 |
NIPPLE, HOSE Price: $6.75 |
| 27 |
61A-42717-00-00 |
RUBBER, SEAL 2 Price: $17.60 |
| 28 |
6DR-12572-00-00 |
ADAPTER This part replaces 68T-12572-00-00. Price: $14.15 |
| 29 |
97780-60520-00 |
SCREW, TAPPING Price: $4.49 |
| 30 |
6R3-12581-00-00 |
JOINT, HOSE 1 Price: $6.40 |
| 31 |
6R3-12582-00-00 |
JOINT, HOSE 2 Price: $6.40 |
| 32 |
6R3-12583-10-00 |
GASKET, HOSE JOINT This part replaces 6R3-12583-00-00. Price: $3.55 |
| 33 |
63P-42541-00-00 |
PIPE 1 Price: $27.15 |
| 34 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 35 |
63P-42716-01-00 |
RUBBER SEAL 1 This part replaces 63P-42716-00-00. Price: $66.05 |
| 36 |
63P-42741-01-8D |
APRON Price: $328.30 |
| 37 |
95380-06600-00 |
NUT, HEXAGON Price: $4.80 |
| 38 |
90159-06M28-00 |
SCREW, WITH WASHER Price: $5.50 |
| 39 |
90109-06M80-00 |
BOLT Price: $2.95 |
| 40 |
90480-13M24-00 |
GROMMET Price: $9.05 |
| 41 |
90387-06M43-00 |
COLLAR Price: $8.85 |
| 42 |
61A-42727-01-00 |
GROMMET This part replaces 61A-42727-00-00. Price: $2.55 |
| 43 |
63P-42811-01-00 |
STAY Price: $30.55 |
| 44 |
63P-42756-00-00 |
STAY, CLAMP Price: $7.05 |
| 45 |
90464-20181-00 |
CLAMP Price: $4.72 |
| 46 |
90109-06M86-00 |
BOLT Price: $1.81 |
| 47 |
90464-23199-00 |
CLAMP Price: $3.20 |
| 48 |
6H4-42748-01-00 |
GROMMET This part replaces 6H4-42748-00-00. Price: $1.55 |
| 51 |
6EE-42794-41-00 |
LABEL, WARNING (GENERAL) This part replaces 6AH-42794-40-00. Price: $17.80 |
