| Ref | Part Number | Description |
|---|
| 1 |
205562044 |
Socket Head Screw M6 X 20, Scotch Grip Price: $2.19 |
| 2 |
205862044 |
Socket Head Screw M6 X 20, Scotch Grip Price: $4.19 |
| 3 |
207089044 |
Hex. Screw M8 X 90 Price: $3.59 |
| 4 |
207503046 |
Hex. Flange Screw M10 X 30, Scotch Grip Price: $2.99 |
| 5 |
207562544 |
Hex. Flange Screw M6 X 25 Price: $1.69 |
| 6 |
207564044 |
Hex. Flange Screw M6 X 40, Scotch Grip Price: $4.49 |
| 7 |
232006414 |
Hex. Nut M10 X 1.5 Price: $1.39 |
| 8 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 9 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 10 |
250000340 |
SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership Price: $8.29 |
| 11 |
250000360 |
Hex. Flange Screw M6 X 1.0 X 30 Price: $2.19 |
| 12 |
250200100 |
Bonded Washer Price: $2.19 |
| 13 |
250300031 |
Clinch Stud M6 X 30 Price: $2.09 |
| 14 |
250400010 |
Rolled Pin M3 X 10 Price: $1.99 |
| 15 |
250400045 |
Spring Pin M5 X 16 Price: $4.69 |
| 16 |
250400048 |
Dowel Pin Price: $2.19 |
| 17 |
250500013 |
Hex. Countersunk Drain Plug This part replaces 250500012. Price: $8.09 |
| 18 |
293200168 |
Oil Seal This part replaces 293250175. Price: $14.99 |
| 19 |
293300122 |
O-Ring Price: $2.19 |
| 20 |
293300130 |
Tight Seal Price: $7.69 |
| 21 |
293300134 |
O-Ring Price: $2.39 |
| 22 |
293350115 |
Ball Bearing This part replaces 293350055. Price: $12.11 |
| 23 |
293350059 |
Ball Bearing Price: $30.99 |
| 24 |
293350063 |
Needle Bearing Price: $23.99 |
| 25 |
293350064 |
Needle Bearing Price: $23.49 |
| 26 |
293350074 |
Ball Bearing Price: $38.49 |
| 27 |
293370054 |
Circlip Price: $8.29 |
| 28 |
293370055 |
Circlip Price: $8.29 |
| 31 |
293710035 |
Straight Fitting Price: $9.09 |
| 32 |
414115200 |
Tie-Rap 180 mm Price: $0.11 |
| 36 |
414484400 |
O-Ring Price: $7.69 |
| 37 |
414554800 |
Spring Clamp Price: $0.90 |
| 38 |
293200158 |
Oil Seal This part replaces 415049300. Price: $14.49 |
| 39 |
504077300 |
Spacer Price: $7.09 |
| 40 |
504078700 |
Ring Price: $21.99 |
| 41 |
504082900 |
Washer Price: $2.69 |
| 42 |
504083100 |
Reverse Shaft Price: $46.99 |
| 43 |
504152282 |
Circlip Price: $3.29 |
| 44 |
293200159 |
Oil Seal This part replaces 504152571. Price: $16.49 |
| 45 |
504152572 |
Circlip Price: $7.09 |
| 46 |
504152576 |
Circlip Price: $10.99 |
| 48 |
504152582 |
Circlip Price: $10.99 |
| 49 |
504152602 |
Adjustment Screw Price: $12.99 |
| 50 |
504152619 |
Magnetic Cap Price: $24.49 |
| 52 |
504152630 |
Drive Chain, 106 Links Price: $184.99 |
| 53 |
504152636 |
Magnetic Plug 1/8 - 27 NPTF Price: $11.99 |
| 54 |
504152689 |
Washer Price: $7.79 |
| 55 |
504152710 |
Double Ball Joint Price: $51.99 |
| 56 |
504152724 |
Sprocket, 29 Teeth Price: $184.99 |
| 57 |
504153431 |
Chaine Tensionner This part replaces 504152748. Price: $16.49 |
| 58 |
504152766 |
Double Ball Joint Price: $18.49 |
| 59 |
504153427 |
Lever This part replaces 504152788. Price: $31.99 |
| 61 |
504152841 |
Tensioner Axle Price: $16.99 |
| 62 |
504152862 |
Washer Price: $10.99 |
| 63 |
Not |
Available As Spare Part - Axle Drive |
| 64 |
504152896 |
Rotation Sensor Price: $38.99 |
| 65 |
504153074 |
Tube Protector This part replaces 504152900. Price: $14.99 |
| 66 |
504152929 |
Cap Ass'y Price: Call Us |
| 67 |
504153886 |
Retaining Ring This part replaces 504152949. Price: $21.99 |
| 68 |
504152951 |
Ball Joint Price: $46.49 |
| 69 |
504153432 |
Fork Ass'y This part replaces 504152954. Price: $38.99 |
| 70 |
504152956 |
Welded Axle Fork Price: $31.99 |
| 71 |
504152960 |
Slinding Gear, 27 Teeth Price: $109.99 |
| 73 |
504152979 |
Coupling Price: $75.99 |
| 74 |
504152739 |
Slider Chain Price: $67.99 |
| 75 |
504153074 |
Tube Protector Price: $14.99 |
| 76 |
504153082 |
Grip Price: $34.99 |
| 77 |
Not |
Available As Spare Part - Sprocket, 7 Teeth |
| 79 |
504153122 |
Chain Slider Price: $16.99 |
| 80 |
504153144 |
Chaincase Cover Ass'y Price: $369.99 |
| 81 |
504154391 |
Track 16 X 154 X 1,5 This part replaces 504152761. Price: $1,219.99 |
| 82 |
504153174 |
Grip Price: $28.99 |
| 83 |
504153178 |
Spring Release Price: $9.59 |
| 85 |
504153184 |
Chaincase Price: $359.99 |
| 86 |
504153187 |
Bearing Housing Price: $31.99 |
| 88 |
504154054 |
Drive Axle Ass'y This part replaces 504153083. Price: $529.99 |
| 89 |
504153418 |
Bearing Housing Ass'y Price: $17.49 |
| 90 |
219704410 |
Polyurethane Hose 10000Mm Long Price: $57.99 |
| 92 |
570048600 |
Alignement Rod Price: $16.49 |
| 93 |
581096900 |
Sprock Ass'y, 19 Teeth Price: $114.99 |
| 94 |
504152930 |
Cap Price: $29.99 |
| 95 |
504153000 |
Countershaft Price: $593.49 |
| 96 |
235381646 |
Torx Screw M8 X 16, Scotch Grip Price: $2.59 |
| 97 |
415129528 |
Track Guide Price: $3.39 |
| 120 |
120CA0612 |
BOLT-SOCKET,6X12 Price: $1.71 |
| 120A |
120CA0675 |
BOLT-SOCKET,6X75 Price: $3.29 |
| 120B |
120CC0630 |
BOLT-SOCKET,6X30 Price: $2.03 |
| 120C |
120CC0640 |
BOLT-SOCKET,6X40 Price: $2.41 |
| 120D |
120CC0650 |
BOLT-SOCKET,6X50 Price: $2.55 |
| 120E |
120CC0665 |
BOLT-SOCKET,6X65 Price: $3.21 |
| 130 |
130BA0610 |
BOLT-FLANGED,6X10 Price: $1.20 |
| 132 |
132BA0614 |
BOLT-FLANGED-SMALL,6X14 Price: $1.46 |
| 132A |
132BA0620 |
BOLT-FLANGED-SMALL,6X20 Price: $2.49 |
| 132B |
132BA0630 |
BOLT-FLANGED-SMALL,6X30 Price: $2.65 |

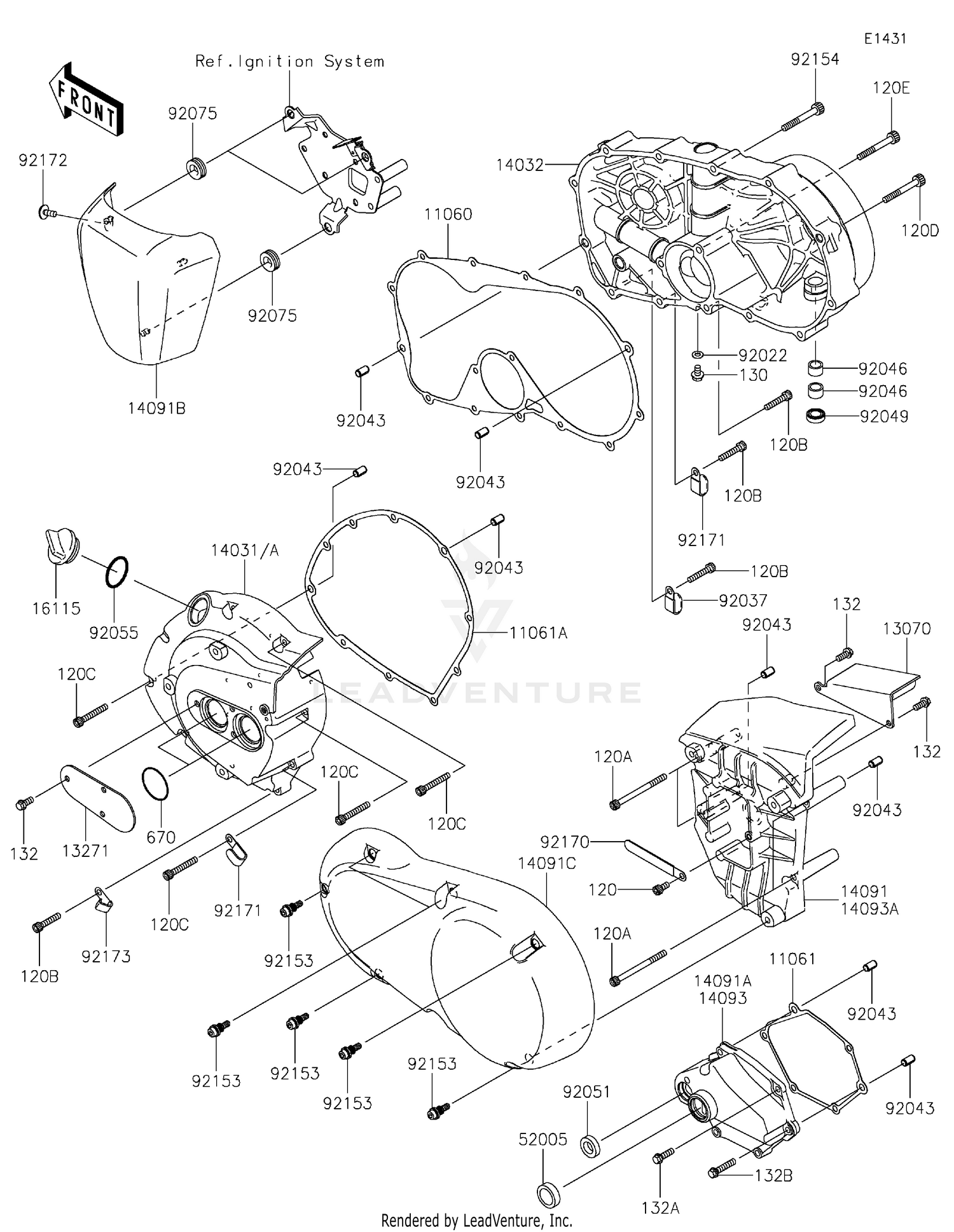

| 11060 |
11061-1517 |
GASKET,CLUTCH COVER This part replaces 11060-1926. Price: $40.86 |
| 11061 |
11061-1519 |
GASKET,MECHANISM COVER This part replaces 11061-0208. Price: $7.69 |
| 11061A |
11061-0209 |
GASKET,GENERATOR COVER Price: $28.84 |
| 13070 |
13070-0055 |
GUIDE,BELT Price: $39.29 |
| 13271 |
13271-0700 |
PLATE Price: $7.75 |
| 14031 |
14031-0620 |
COVER-GENERATOR This part replaces 14031-0056. Price: $252.81 |
| 14031A |
14031-0620 |
COVER-GENERATOR Price: $252.81 |
| 14032 |
14032-0135 |
COVER-CLUTCH Price: $480.58 |
| 14091 |
14091-0510 |
COVER,PULLEY Price: $126.20 |
| 14091A |
14091-0633 |
COVER,CHANGE MECHANISM Price: $139.52 |
| 14091B |
14091-0882-H8 |
COVER,IGNITION COIL,EBONY Price: $99.93 |
| 14091C |
14091-1737 |
COVER,OUTER,LH Price: $163.53 |
| 14093 |
14093-0673 |
COVER,CHANGE MECHANISM Price: $133.34 |
| 14093A |
14093-0674 |
COVER,PULLEY Price: $122.86 |
| 16115 |
16115-1009 |
CAP-OIL FILLER Price: $14.30 |
| 52005 |
52005-1009 |
GAUGE,OIL LEVEL Price: $18.40 |
| 92022 |
92022-077 |
WASHER,6.1X12X1 Price: $3.99 |
| 92037 |
92037-1539 |
CLAMP,L=45 Price: $5.00 |
| 92043 |
92043-1263 |
PIN,6.2X8X14 Price: $0.43 |
| 92046 |
92046-0034 |
BEARING-NEEDLE,HK1210FM Price: $15.63 |
| 92049 |
92049-1271 |
SEAL-OIL,TB12205.5 Price: $9.28 |
| 92051 |
92051-005 |
SEAL-OIL,TB13225.5 Price: $7.74 |
| 92055 |
92055-049 |
RING-O,31.5X2.6 Price: $4.31 |
| 92075 |
92075-1629 |
DAMPER Price: $5.00 |
| 92153 |
92153-1331 |
BOLT,SOCKET,6X22 Price: $10.30 |
| 92154 |
92154-0270 |
BOLT,SOCKET,6X50 Price: $2.75 |
| 92170 |
92170-1925 |
CLAMP Price: $2.40 |
| 92171 |
92171-0739 |
CLAMP Price: $5.65 |
| 92172 |
92172-0101 |
SCREW,5X12 Price: $5.05 |
