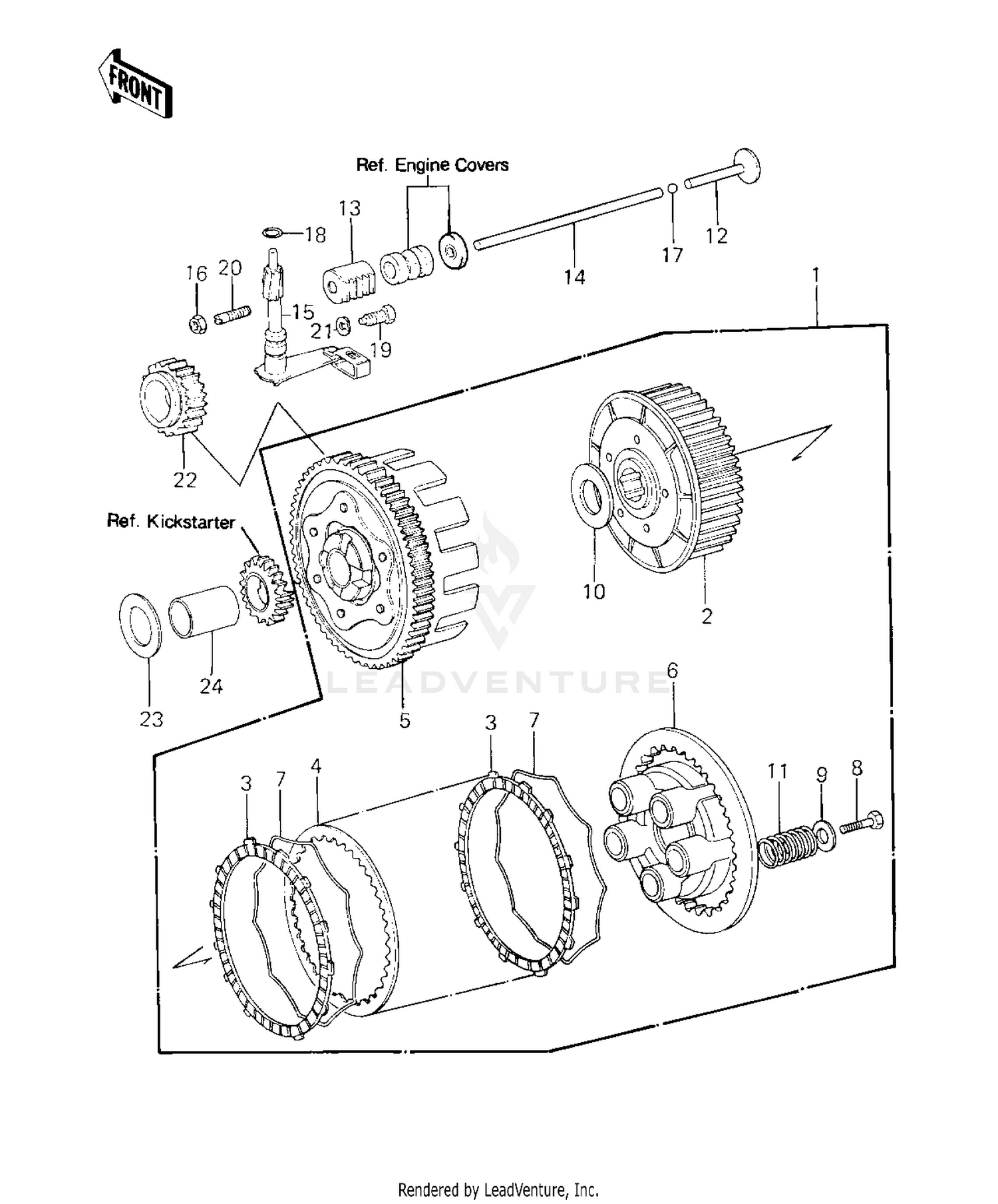

| Ref | Part Number | Description |
|---|
| 2 |
13087-038 |
HUB,CLUTCH Price: $85.84 |
| 3 |
13088-1015 |
PLATE-FRICTION Price: $20.55 |
| 4 |
13089-003 |
PLATE CLUTCH STEEL Price: $14.22 |
| 6 |
13187-004 |
PLATE-CLUTCH SPRING Price: $41.41 |
| 7 |
13229-002 |
RING-CLUTCH STEEL Price: $13.58 |
| 8 |
92003-078 |
BOLT,5X18 Price: $4.78 |
| 9 |
92022-167 |
WASHER-PLAIN,5MM Price: $2.74 |
| 10 |
92022-270 |
WASHER,17.3X30X1.4 Price: $9.84 |
| 11 |
92081-123 |
SPRING,CLUTCH Price: $9.03 |
| 12 |
13116-016 |
PUSHER-CLTCH SPRG PLT Price: $21.08 |
| 13 |
13116-026 |
ROD,CLTCH RELESE PUSH Price: $36.38 |
| 14 |
13116-027 |
ROD,CLUTCH PUSH,LONG Price: $16.78 |
| 15 |
13234-003 |
SHAFT ASY,CLTCH RELES Price: $100.37 |
| 16 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 17 |
600A0700 |
BALL STEEL 7/32' Price: $1.64 |
| 18 |
670B2010 |
O RING,10MM Price: $1.50 |
| 19 |
92003-130 |
BOLT,CLUTCH RELEASE Price: $6.01 |
| 20 |
92014-015 |
SCREW,SLOTTED,6X26 Price: $8.24 |
| 21 |
92031-009 |
WASHER,LOCK Price: $4.58 |
| 23 |
92022-270 |
WASHER,17.3X30X1.4 Price: $9.84 |
