| Ref | Part Number | Description |
|---|
| 1 |
502007836 |
LH Lower Bottom Pan This part replaces 502007447. Price: $224.99 |
| 2 |
502007837 |
RH Lower Bottom Pan This part replaces 502007446. Price: $199.99 |
| 3 |
502007255 |
Heat Isolation Plate Price: $5.79 |
| 4 |
293150211 |
Rivet Price: $2.29 |
| 6 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. Price: $2.19 |
| 12 |
502007635 |
SUPPORT - Call your local BRP dealership Price: $18.99 |
| 13 |
207667056 |
Hex. Flange Screw M6 X 70 Price: $4.49 |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 15 |
502007140 |
Front Grille Price: $89.99 |
| 16 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. Price: $2.19 |
| 17 |
250000722 |
Torx Screw M6 X 20 Price: $1.69 |
| 19 |
502007133 |
Insulator Price: $31.99 |
| 20 |
502007132 |
Insulator Price: $31.99 |
| 21 |
502007008 |
INSULATOR - Call your local BRP dealership Price: $19.49 |
| 22 |
502007009 |
Insulator Price: $19.49 |
| 23 |
250000722 |
Torx Screw M6 X 20 Price: $1.69 |
| 25 |
502007088 |
Insulator Price: $69.99 |
| 26 |
502007131 |
Insulator Price: $31.99 |
| 27 |
502007185 |
Insulator Price: $29.99 |
| 28 |
250000722 |
Torx Screw M6 X 20 Price: $1.69 |
| 32 |
293730041 |
Full Moon Dart 8 mm Price: $2.29 |
| 33 |
502007535 |
LH Bottom Pan Fastener Price: $38.99 |
| 34 |
502007536 |
RH Bottom Pan Fastener Price: $38.99 |
| 35 |
605636003 |
Clinch Nut M6 Hexsert Price: $4.29 |
| 37 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 44 |
605636003 |
Clinch Nut M6 Hexsert Price: $4.29 |
| 45 |
250000722 |
Torx Screw M6 X 20 Price: $1.69 |
| 46 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip Price: $0.98 |
| 47 |
234082410 |
Flat Washer 8 mm Price: $1.49 |
| 48 |
250000722 |
Torx Screw M6 X 20 Price: $1.69 |
| 49 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. Price: $2.19 |

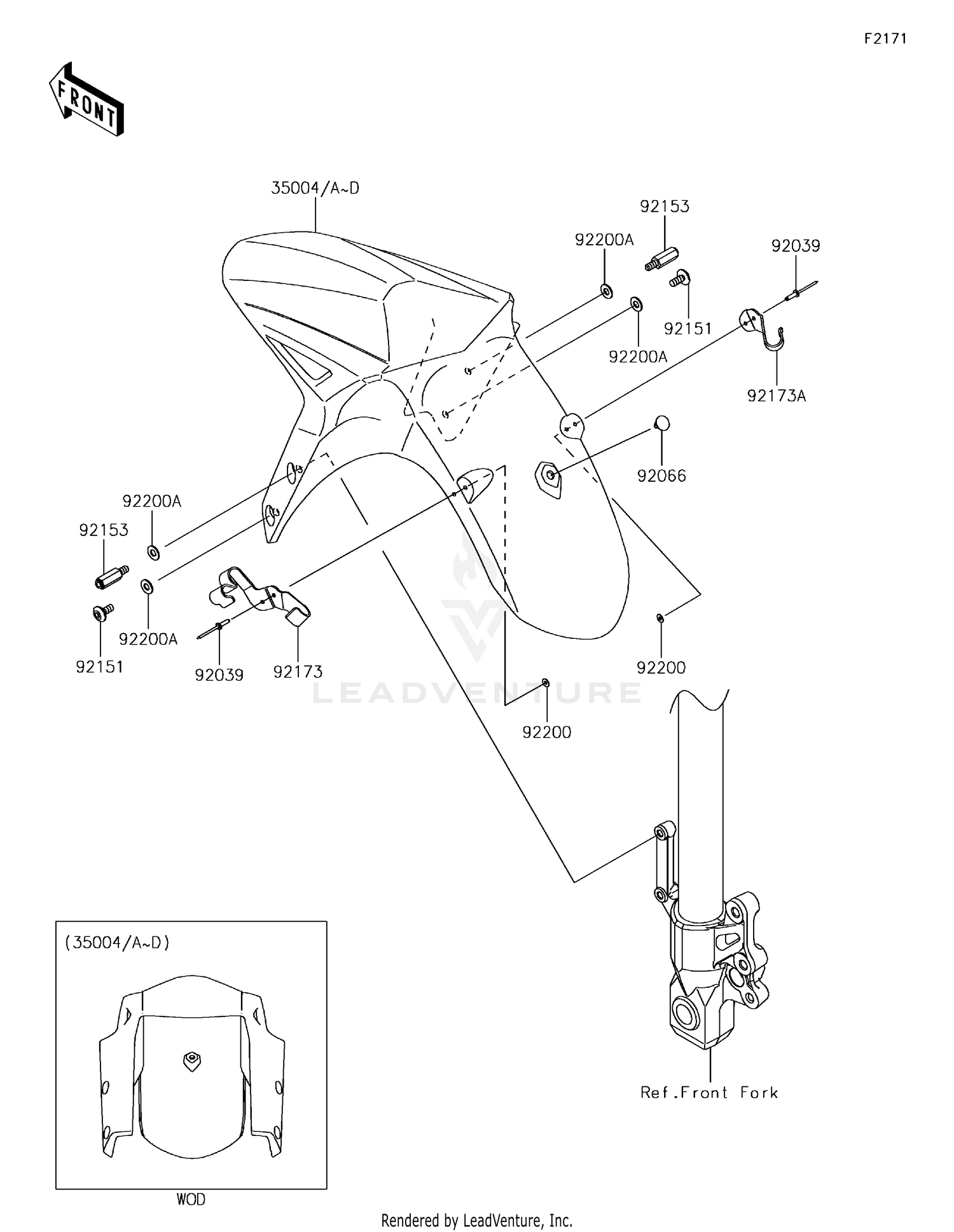

| 35004A |
35004-0340-51P |
FENDER-FRONT,C.L.GREEN Price: $190.18 |
| 35004D |
35004-0340-739 |
FENDER-FRONT,M.F.S.BLACK Price: $202.42 |
| 92039 |
92039-0705 |
RIVET Price: $0.95 |
| 92066 |
92066-0741 |
PLUG,ANCHOR CLIP Price: $2.30 |
| 92151 |
92151-1654 |
BOLT,SOCKET,6X14 Price: $1.83 |
| 92153 |
92153-1533 |
BOLT,6MM Price: $11.93 |
| 92173 |
92173-1286 |
CLAMP,FENDER,LH Price: $6.77 |
| 92173A |
92173-1287 |
CLAMP,FENDER,RH Price: $3.86 |
| 92200 |
92200-0514 |
WASHER,3.3X8X0.5 Price: $0.88 |
