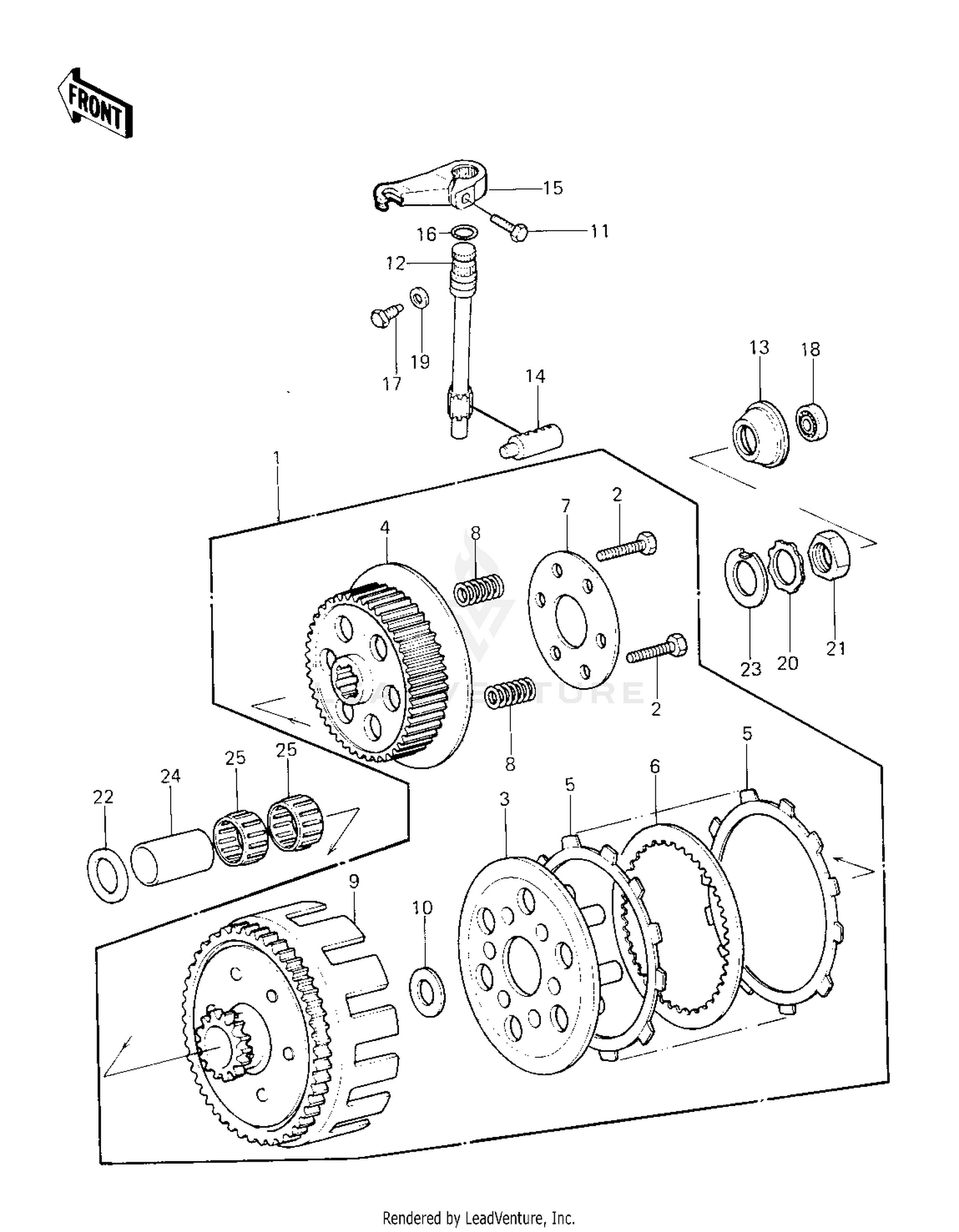

| Ref | Part Number | Description |
|---|
| 3 |
13086-016 |
WHEEL,CLUTCH Price: $71.53 |
| 4 |
13087-1012 |
HUB,CLUTCH Price: $72.02 |
| 5 |
13088-1091 |
PLATE-FRICTION This part replaces 13088-041. Price: $16.22 |
| 6 |
13089-025 |
PLATE,CLUTCH STEEL Price: $36.63 |
| 7 |
13091-016 |
PLATE,CLUTCH SPRING Price: $7.80 |
| 8 |
92081-1151 |
SPRING,CLUTCH Price: $8.49 |
| 10 |
92022-282 |
WASHER,CLUTCH THRUST Price: $9.93 |
| 11 |
112BA0618 |
BOLT-UPSET This part replaces 112G0618. Price: $1.03 |
| 12 |
13106-008 |
SHAFT,CLUTCH RELEASE Price: $78.41 |
| 14 |
13116-025 |
ROD,CLUTCH PUSH Price: $27.21 |
| 16 |
670B2010 |
O RING,10MM Price: $1.50 |
| 17 |
92003-130 |
BOLT,CLUTCH RELEASE Price: $6.01 |
| 18 |
92045-1005 |
BEARING,BALL Price: $29.36 |
| 19 |
92065-092 |
GASKET,R.H ENG COVER Price: $4.34 |
| 20 |
464H1600 |
WASHER,LOCK,16MM Price: $5.98 |
| 21 |
92015-1016 |
NUT,16M/M Price: $5.28 |
| 23 |
92022-1277 |
WASHER,16.8X32X1.6 Price: $6.85 |
| 24 |
92028-1067 |
BUSHING,CLUT,20X25X40 Price: $33.89 |
