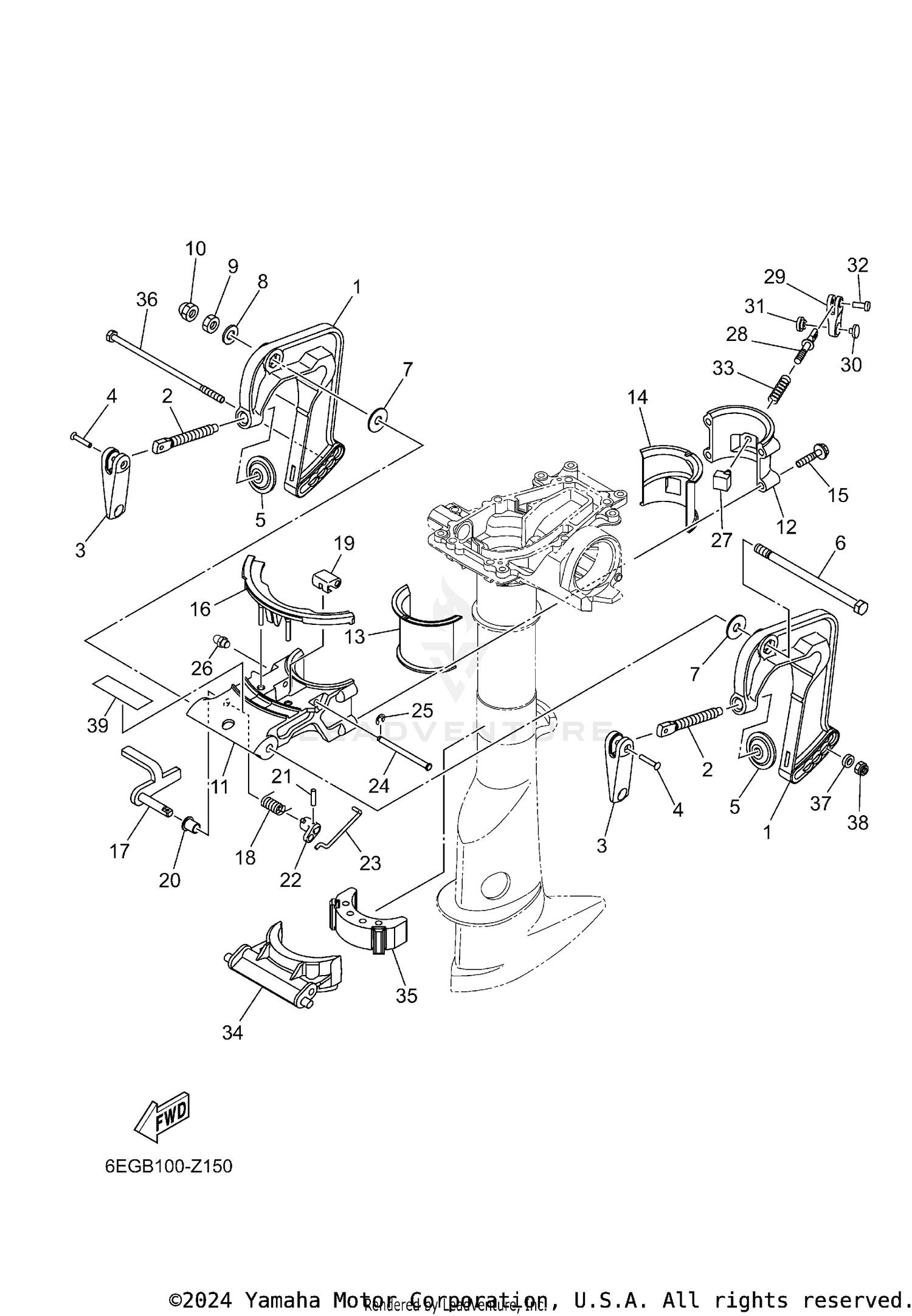

| Ref | Part Number | Description |
|---|
| 1 |
6EG-43111-00-8D |
BRACKET, CLAMP 1 Price: $110.60 |
| 2 |
6E0-43116-01-00 |
SCREW, TRANSOM CLAMP Price: $33.70 |
| 3 |
6E0-43118-01-00 |
HANDLE, TRANSOM CLAMP Price: $8.95 |
| 4 |
90243-04M01-00 |
PIN Price: $5.95 |
| 5 |
648-43114-01-00 |
PAD, TRANSOM CLAMP Price: $14.20 |
| 6 |
90101-08M07-00 |
BOLT Price: $14.49 |
| 7 |
90202-08022-00 |
WASHER, PLATE Price: $4.50 |
| 8 |
92990-08200-00 |
WASHER, PLAIN Price: $2.99 |
| 9 |
99780-08600-00 |
NUT, HEX. This part replaces 95380-08600-00. Price: $2.75 |
| 10 |
95380-08800-00 |
NUT, CROWN Price: $12.49 |
| 11 |
6EG-43311-00-8D |
BRACKET, SWIVEL 1 Price: $123.80 |
| 12 |
6EG-43312-00-8D |
BRACKET, SWIVEL 2 Price: $56.85 |
| 13 |
6EG-42537-00-00 |
BUSHING, PIVOT SHAFT Price: $24.35 |
| 14 |
6EG-42538-00-00 |
BUSHING, PIVOT SHAFT Price: $24.35 |
| 15 |
97E75-06530-00 |
BOLT, HEXAGON W/W DE Price: $2.05 |
| 16 |
6EG-43679-00-00 |
COVER Price: $21.30 |
| 17 |
6EG-43180-00-00 |
TILT STOP LEVER ASSY Price: $98.45 |
| 18 |
6EG-43188-00-00 |
SPRING Price: $15.70 |
| 19 |
6EG-43186-00-00 |
LEVER Price: $19.80 |
| 20 |
90386-08032-00 |
BUSH Price: $5.55 |
| 21 |
91690-20010-00 |
PIN, SPRING Price: $6.40 |
| 22 |
6EG-43185-00-00 |
LEVER, TILT STOP 2 Price: $12.15 |
| 23 |
6EG-43164-00-00 |
ROD, TILT LOCK Price: $11.65 |
| 24 |
6EG-43166-00-00 |
PIN Price: Call Us |
| 25 |
99080-04600-00 |
CIRCLIP Price: $1.99 |
| 26 |
93700-06M03-00 |
NIPPLE, GREASE This part replaces 93700-06004-00. Price: $8.25 |
| 27 |
6EG-42528-00-00 |
PLATE, FRICTION Price: $17.25 |
| 28 |
6EG-42529-00-00 |
SCREW, FRICTION PIECE Price: $20.30 |
| 29 |
6L5-42561-00-00 |
KNOB, STEERING LOCK Price: $11.40 |
| 30 |
6L5-44196-00-00 |
INDICATOR 3 Price: $6.15 |
| 31 |
6L5-44197-00-00 |
INDICATOR 4 Price: $6.15 |
| 32 |
90266-04M05-00 |
RIVET Price: $4.40 |
| 33 |
90501-121A6-00 |
SPRING, COMPRESSION Price: Call Us |
| 34 |
6EG-43351-00-00 |
RECEIVER, THRUST Price: $21.30 |
| 35 |
69M-44557-00-00 |
MOUNT DAMPER, LOWER FRONT Price: $78.15 |
| 36 |
90101-06062-00 |
BOLT Price: $6.40 |
| 37 |
90201-06040-00 |
WASHER, PLATE Price: $3.00 |
| 38 |
95780-06300-00 |
NUT, FLANGE Price: $7.70 |
