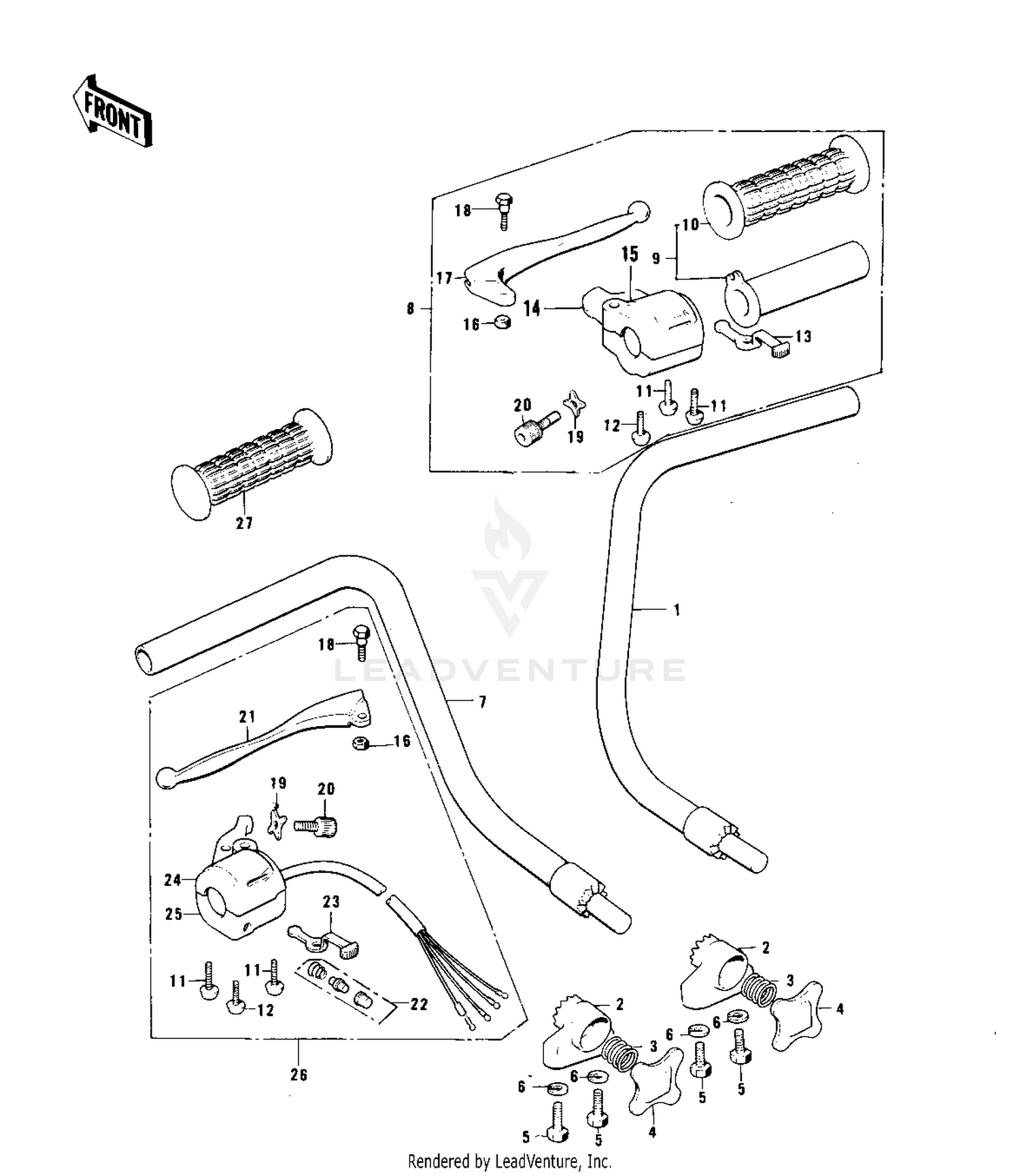

| Ref | Part Number | Description |
|---|
| 1 |
46007-010 |
HANDLEBAR,RH Price: $69.63 |
| 2 |
46012-009 |
HOLDER-HANDLEBAR Price: $24.99 |
| 3 |
92081-090 |
SPRING Price: $5.33 |
| 4 |
46129-001 |
KNOB-HANDLEBAR HOLDER Price: $10.48 |
| 5 |
113G1018 |
BOLT,HEX HEAD,10X18 Price: $5.21 |
| 6 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 7 |
46007-011 |
HANDLEBAR,LH Price: $63.28 |
| 8 |
46017-077 |
GRIP ASSY,R.H Price: $142.77 |
| 9 |
46019-024 |
GRIP ASSY,THROTTLE Price: $48.53 |
| 10 |
46061-015 |
RUBBER,R.H.GRIP Price: $23.82 |
| 11 |
220AA0520 |
SCREW-PAN-CROS This part replaces 220B0520. Price: $0.68 |
| 12 |
220AA0518 |
SCREW-PAN-CROS This part replaces 220B0518. Price: $4.96 |
| 13 |
46043-002 |
KNOB ASSY R.H SWITCH Price: $4.20 |
| 16 |
92019-014 |
NUT-LOCK,5MM Price: $4.50 |
| 17 |
46058-004 |
LEVER FRONT BRAKE Price: $24.84 |
| 18 |
92007-046 |
BOLT,HEX HEAD,5X22 Price: $7.62 |
| 19 |
92210-1131 |
NUT,CABLE ADJUST LOCK This part replaces 46056-001. Price: $5.55 |
| 20 |
46055-003 |
SCREW,CABLE ADJUST,8MM Price: $16.33 |
| 21 |
46092-015 |
LEVER-CLUTCH Price: $20.99 |
| 22 |
27010-1009 |
SWITCH ASSY,HORN BUTN This part replaces 46078-003. Price: $9.20 |
| 23 |
46088-001 |
KNOB ASSY L.H SWITCH Price: $8.74 |
| 27 |
46075-020 |
RUBBER,L.H GRIP Price: $24.62 |
