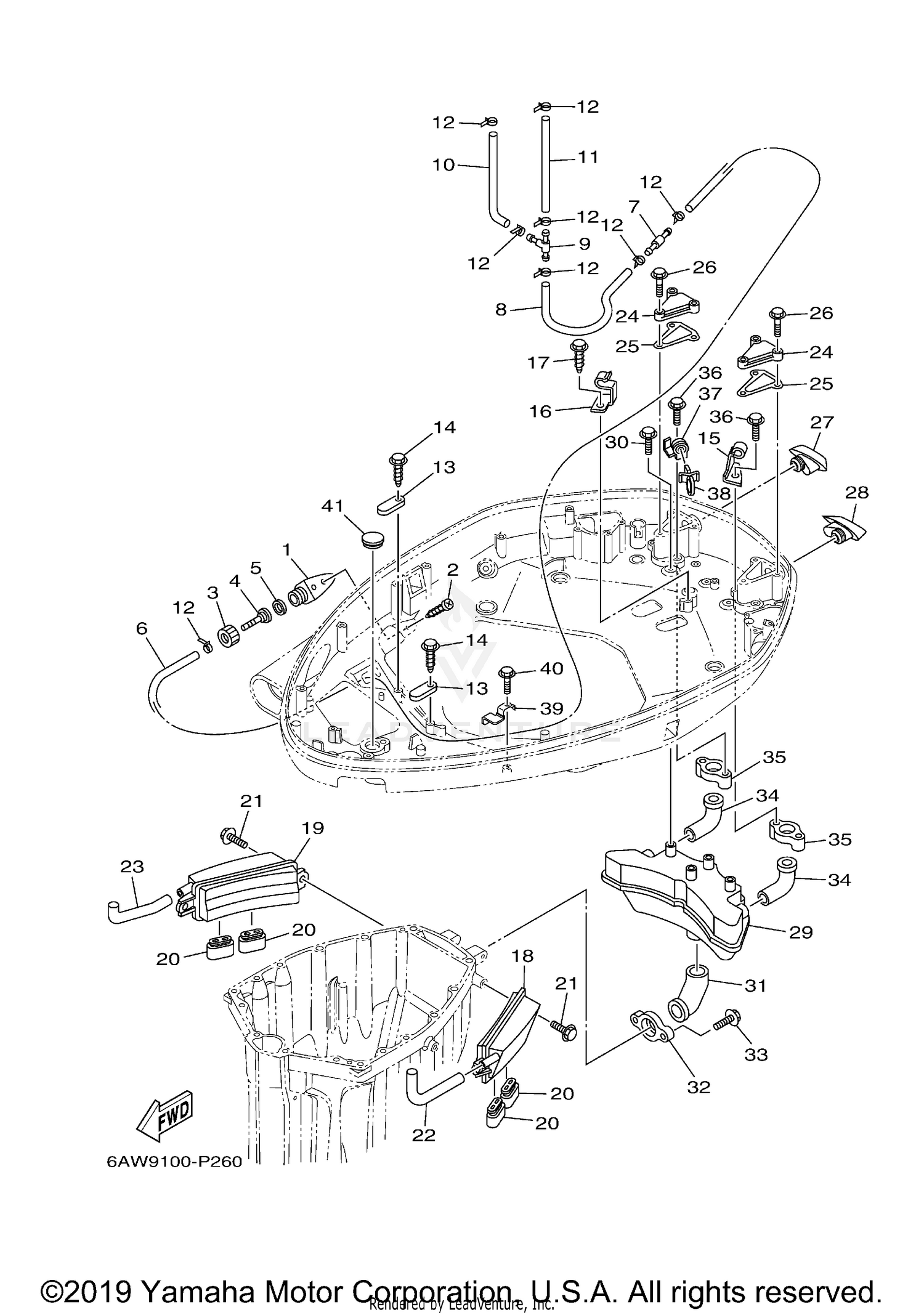

| Ref | Part Number | Description |
|---|
| 1 |
6AW-12572-00-00 |
ADAPTER Price: $15.55 |
| 2 |
97780-60520-00 |
SCREW, TAPPING Price: $4.49 |
| 3 |
6R3-12581-00-00 |
JOINT, HOSE 1 Price: $6.40 |
| 4 |
6AW-12582-00-00 |
JOINT, HOSE 2 Price: $5.95 |
| 5 |
6R3-12583-10-00 |
GASKET, HOSE JOINT This part replaces 6R3-12583-00-00. Price: $3.55 |
| 6 |
90445-14015-00 |
HOSE (L1520) Price: $47.80 |
| 7 |
6AW-42785-00-00 |
PIPE Price: $5.80 |
| 8 |
90445-14013-00 |
HOSE (L480) Price: $20.20 |
| 9 |
6AW-42169-00-00 |
JOINT Price: $11.35 |
| 10 |
66V-24314-00-00 |
PIPE 4 Price: $7.99 |
| 11 |
90445-110F5-00 |
HOSE This part replaces 90445-116J1-00. Price: $17.49 |
| 12 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 13 |
6E5-82588-00-00 |
PLATE Price: $28.55 |
| 14 |
90109-06M81-00 |
BOLT Price: $2.70 |
| 15 |
90465-08M82-00 |
CLAMP Price: $9.80 |
| 16 |
6AW-42744-00-00 |
STAY Price: $25.15 |
| 17 |
90109-06M86-00 |
BOLT Price: $1.81 |
| 18 |
6AW-42733-00-00 |
BOX, DRAIN Price: $43.25 |
| 19 |
6AW-42734-00-00 |
BOX, DRAIN 2 Price: $43.25 |
| 20 |
69J-42717-01-00 |
RUBBER, SEAL 2 This part replaces 69J-42717-00-00. Price: $3.15 |
| 21 |
95D95-06016-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 22 |
6AW-42786-00-00 |
HOSE, DRAIN 1 Price: $15.40 |
| 23 |
6AW-42787-00-00 |
HOSE, DRAIN 2 Price: $17.70 |
| 24 |
6AW-42723-00-9S |
COVER, BOTTOM Price: $38.75 |
| 25 |
6AW-42721-00-00 |
GASKET 1 Price: $6.25 |
| 26 |
90109-06M81-00 |
BOLT Price: $2.70 |
| 27 |
6AW-42769-01-00 |
SEAL, RUBBER This part replaces 6AW-42769-00-00. Price: $24.60 |
| 28 |
6AW-42629-01-00 |
SEAL This part replaces 6AW-42629-00-00. Price: $24.60 |
| 29 |
6AW-14750-00-00 |
SILENCER ASSY Price: $79.15 |
| 30 |
95D95-06016-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 31 |
6AW-1475E-00-00 |
PIPE 2 Price: $12.45 |
| 32 |
6AW-14763-00-00 |
SPACER Price: $36.75 |
| 33 |
95D75-06025-00 |
BOLT, FLANGE DEEP Price: $3.45 |
| 34 |
6AW-1475F-00-00 |
PIPE 3 Price: $9.10 |
| 35 |
6AW-14764-00-CA |
SPACER Price: $41.00 |
| 36 |
95D95-06016-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 37 |
6AW-8339X-00-00 |
CLAMP, CORD Price: $8.40 |
| 38 |
90464-12001-00 |
CLAMP Price: $2.65 |
| 39 |
6AW-42767-00-00 |
BRACKET Price: $15.10 |
| 40 |
90109-06M86-00 |
BOLT Price: $1.81 |
