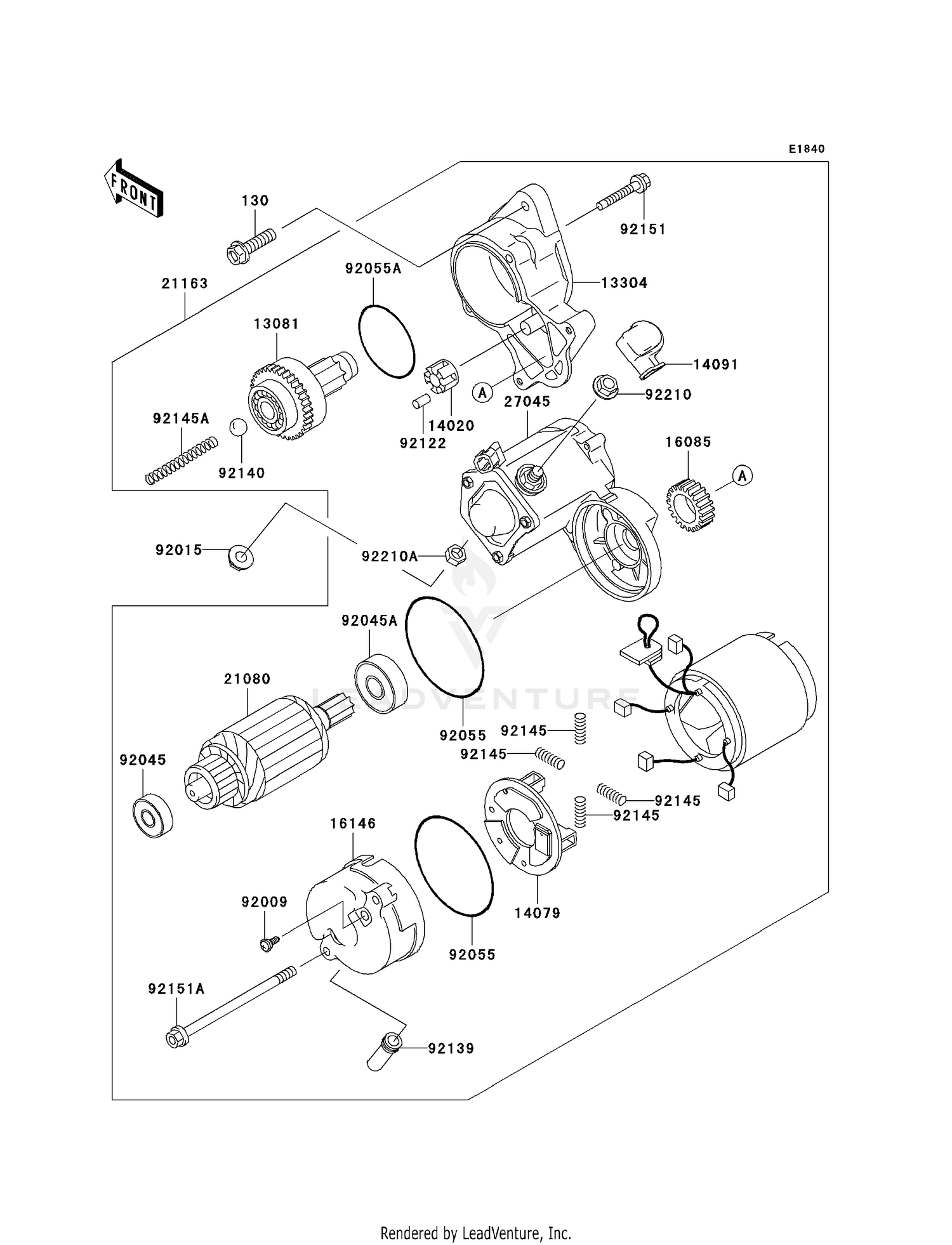

STARTER MOTOR (-FD620DE485832)
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 130CA0830 | BOLT-FLANGED,8X30 Price: $1.08 |
| 13081 | 13081-2231 | CLUTCH-ASSY Price: $130.94 |
| 13304 | 13304-2201 | HOUSING-ASSY Price: $302.87 |
| 14020 | 14020-2112 | RETAINER Price: $11.16 |
| 14079 | 14079-2064 | HOLDER-ASSY Price: $82.67 |
| 14091 | 14091-2080 | COVER Price: $6.12 |
| 16085 | 16085-2055 | GEAR Price: $40.82 |
| 16146 | 16146-2228 | COVER-ASSY Price: $109.74 |
| 21080 | 21080-2070 | ARMATURE Price: $419.40 |
| 21163 | 21163-6010 | STARTER-ELECTRIC,KIT This part replaces 21163-2124. Price: $848.71 |
| 27045 | 27045-2018 | SWITCH-ASSY Price: $469.27 |
| 92009 | 92009-2455 | SCREW Price: $2.80 |
| 92015 | 92015-1143 | NUT,8MM Price: $0.65 |
| 92045 | 92045-2257 | BEARING-BALL,60102RKMDSH2C3 Price: $27.70 |
| 92045A | 92045-2258 | BEARING-BALL Price: $33.65 |
| 92055 | 92055-2199 | RING-O Price: $7.63 |
| 92055A | 92055-2200 | RING-O Price: $5.00 |
| 92122 | 92122-2057 | ROLLER Price: $2.41 |
| 92139 | 92139-2051 | BUSHING Price: $8.49 |
| 92140 | 92140-2061 | BALL Price: $2.39 |
| 92145 | 92145-2096 | SPRING Price: $3.69 |
| 92145A | 92145-2097 | SPRING Price: $3.69 |
| 92151 | 92151-2167 | BOLT Price: $2.41 |
| 92151A | 92151-2168 | BOLT Price: $13.21 |
| 92210 | 92210-2084 | NUT Price: $6.18 |
