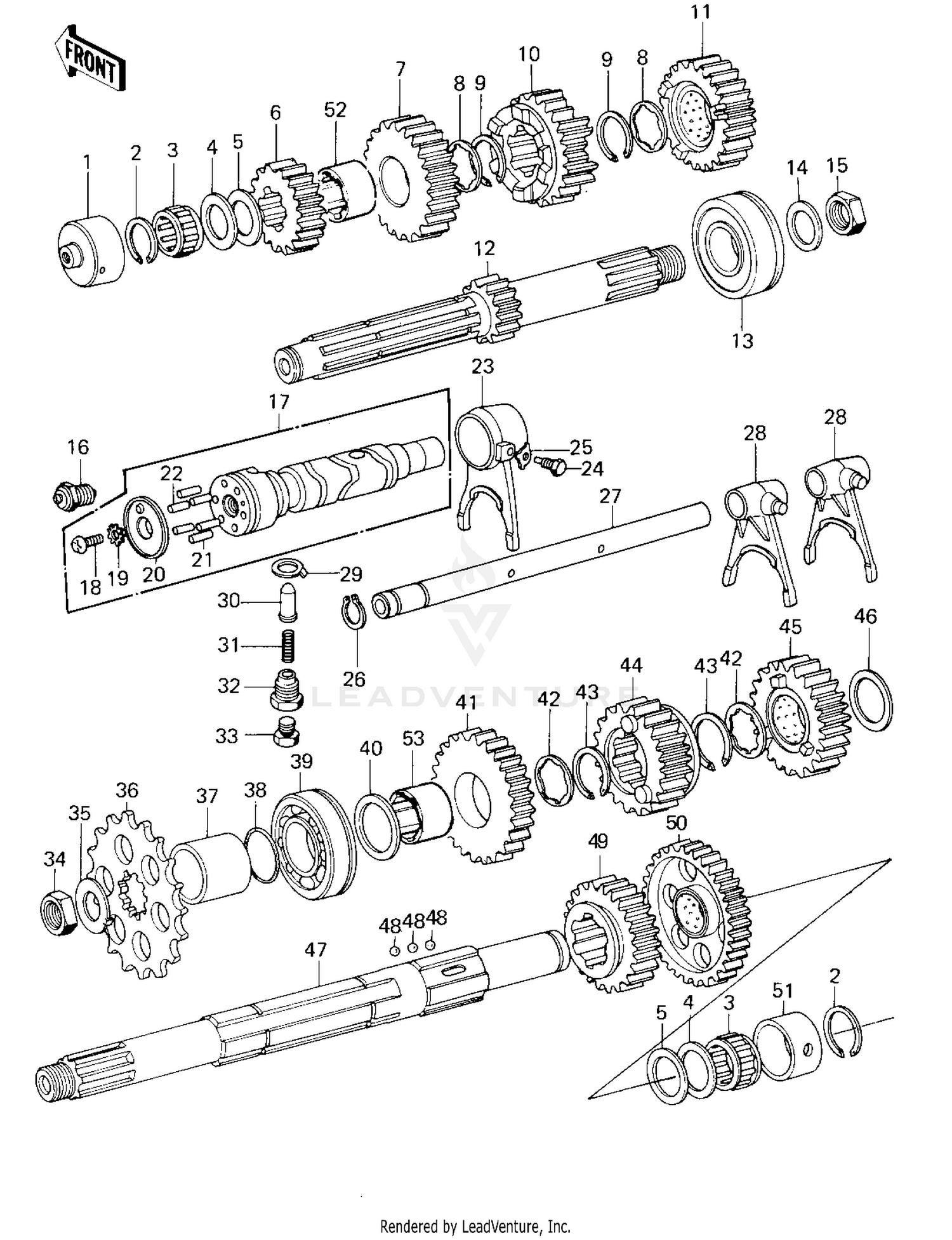

| Ref | Part Number | Description |
|---|
| 1 |
92028-122 |
BUSH,DRIVE SHAFT Price: $99.68 |
| 2 |
92033-025 |
RING-SNAP,20X25.5X1.2 Price: $4.96 |
| 3 |
92046-031 |
BEARING-NEEDLE,FWF-223014 Price: $19.72 |
| 8 |
92024-042 |
WASHER,THRUST,26MM Price: $11.07 |
| 9 |
480J2800 |
CIRCLIP-TYPE-C,28MM Price: $4.70 |
| 13 |
92045-1028 |
BEARING,BALL,5305NSH2 This part replaces 92045-022. Price: $132.72 |
| 14 |
92125-002 |
WASHER Price: $16.45 |
| 15 |
92015-1555 |
NUT,20MM Price: $13.08 |
| 16 |
13151-5003 |
SWITCH,NEUTRAL Price: $21.18 |
| 17 |
13239-1010 |
DRUM ASSY,GEAR CHANGE Price: $353.47 |
| 18 |
220AA0614 |
SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48 |
| 19 |
464G0600 |
WASHER LOCK 6MM Price: $2.89 |
| 20 |
13142-013 |
PLATE,GEAR CHNG DRUM Price: $1.74 |
| 23 |
13140-046 |
FORK,SELECTOR,3RD Price: $209.24 |
| 24 |
92043-016 |
PIN SELECT FORK GUIDE Price: $26.54 |
| 25 |
92031-001 |
WASHER LOCK 10MM Price: $11.45 |
| 26 |
480J1200 |
CIRCLIP-TYPE-C,12MM Price: $0.62 |
| 27 |
13209-011 |
ROD,SHIFT Price: $23.50 |
| 28 |
13140-045 |
FORK,SELECTOR,4TH&TOP Price: $254.98 |
| 29 |
92024-047 |
WASHER,LOCK Price: $3.25 |
| 30 |
92043-085 |
PIN Price: $10.92 |
| 31 |
92081-106 |
SPRING Price: $4.67 |
| 32 |
92001-112 |
BOLT,CHG DRUM POSITN Price: $53.14 |
| 33 |
92001-119 |
BOLT Price: $10.41 |
| 34 |
92016-028 |
NUT,20MM Price: $9.91 |
| 35 |
92024-044 |
WASHER,LOCK,20MM Price: $13.52 |
| 36 |
13144-1001 |
ENGINE SPROCKET,15T Price: $95.11 |
| 37 |
92027-288 |
COLLAR,ENG SPROCKET Price: $39.34 |
| 38 |
92055-035 |
RING-O Price: $5.00 |
| 39 |
92045-021 |
BEARING,BL305 256217 Price: $184.13 |
| 40 |
92022-210 |
WASHER,PLAIN,25MM Price: $8.37 |
| 42 |
92024-043 |
WASHER,TOOTHED,30.3X40X1.5 Price: $13.07 |
| 43 |
480J3000 |
CIRCLIP-TYPE-C,30MM Price: $6.22 |
| 46 |
92022-209 |
WASHER,PLAIN,30MM Price: $9.50 |
| 47 |
13128-5006 |
SHAFT,OUTPUT Price: $211.40 |
| 48 |
600A0600 |
BALL-STEEL,3/16 Price: $1.07 |
| 51 |
92028-123 |
BUSH,OUTPUT SHAFT Price: $54.72 |
| 52 |
92028-1124 |
BUSHING,TOP GEAR Price: $45.48 |
