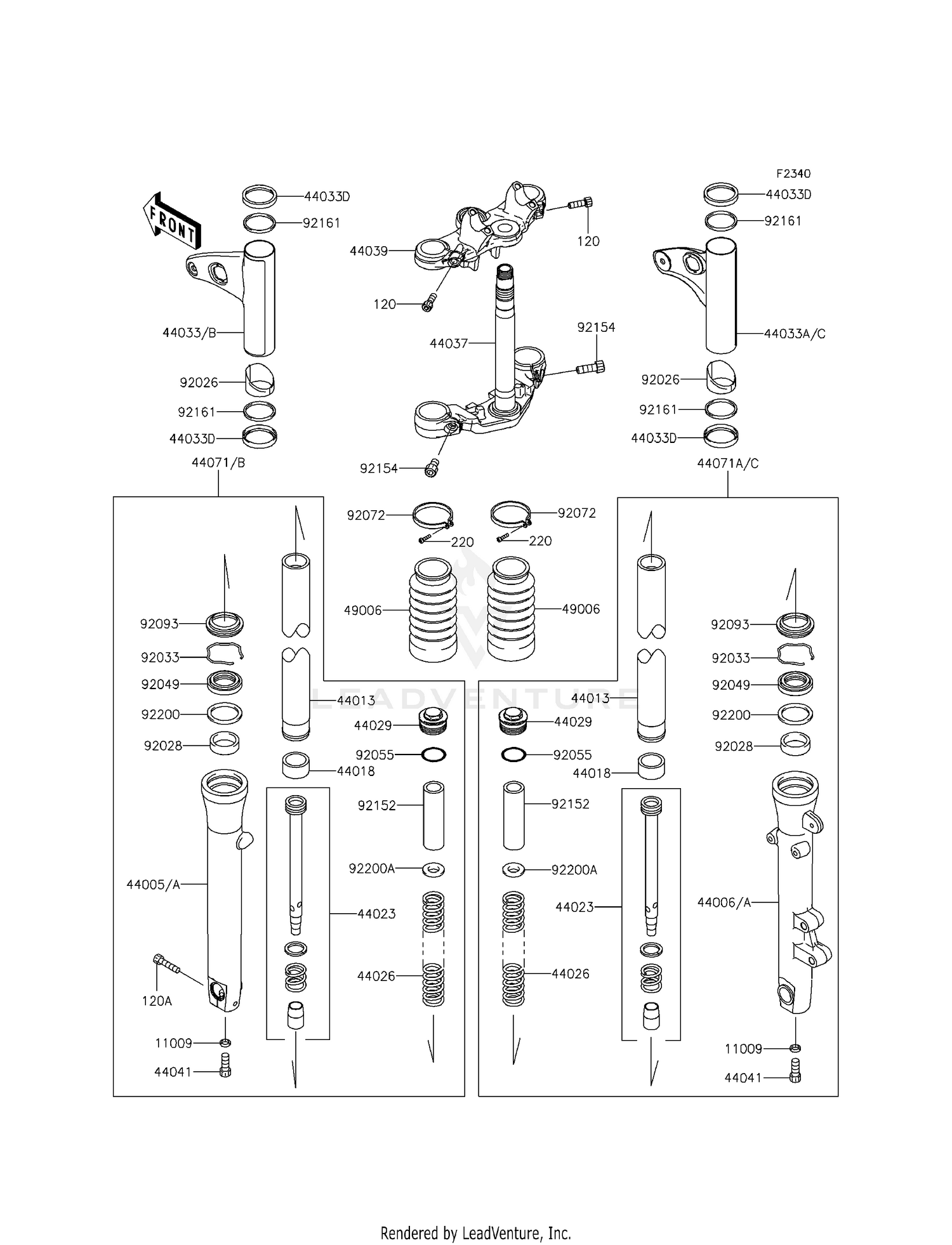

| Ref | Part Number | Description |
|---|
| 120 |
120CA0825 |
BOLT-SOCKET,8X25 Price: $2.06 |
| 120A |
120CA0835 |
BOLT-SOCKET,8X35 Price: $2.80 |
| 220 |
220AB0416 |
SCREW-PAN-CROS,4X16 This part replaces 220C0416. Price: $1.81 |
| 11009 |
44045-057 |
GASKET,FORK CYLINDER This part replaces 11009-1325. Price: $4.86 |
| 44005A |
44005-0084-21 |
PIPE-LEFT FORK OUTER, Price: $473.72 |
| 44006A |
44006-0080-21 |
PIPE-RIGHT FORK OUTER Price: $473.72 |
| 44013 |
44013-1488 |
PIPE-FORK INNER Price: $77.45 |
| 44018 |
44018-1064 |
PISTON-FORK,INNER PIP Price: $21.59 |
| 44023 |
44023-1152 |
CYLINDER-SET-FORK Price: $126.22 |
| 44026 |
44026-0032 |
SPRING-FRONT FORK Price: $69.29 |
| 44029 |
44029-1140-KX |
SEAT-FORK SPRING,SILVER This part replaces 44029-1140. Price: $41.13 |
| 44033B |
44033-0066 |
COVER-FORK,LH Price: $96.49 |
| 44033C |
44033-0067 |
COVER-FORK,RH Price: $96.49 |
| 44033D |
44033-1197 |
COVER-FORK Price: $25.71 |
| 44037 |
44037-0051-10 |
HOLDER-FORK UNDER,BLA Price: $377.28 |
| 44039 |
44039-0041-10 |
HOLDER-FORK UPPER,BLA Price: $275.87 |
| 44041 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 44071B |
44071-0729-21 |
DAMPER-ASSY,FORK,LH,F Price: $802.17 |
| 44071C |
44071-0730-21 |
DAMPER-ASSY,FORK,RH,F Price: $802.17 |
| 49006 |
49006-1335 |
BOOT,FORK Price: $75.86 |
| 92026 |
92026-1432 |
SPACER,FORK COVER Price: $5.93 |
| 92028 |
92028-1940 |
BUSHING Price: $28.90 |
| 92033 |
92033-1036 |
RING-SNAP Price: $6.51 |
| 92049 |
92049-1515 |
SEAL-OIL,FORK OUTER T Price: $19.76 |
| 92072 |
92072-1046 |
BAND,BOOT Price: $10.04 |
| 92093 |
92093-1510 |
SEAL,FORK OUTER TUBE Price: $19.00 |
| 92152 |
92152-1173 |
COLLAR,FORK,L=115 Price: $8.66 |
| 92154 |
92154-0445 |
BOLT Price: $3.39 |
| 92161 |
92161-0512 |
DAMPER Price: $5.70 |
| 92200 |
92200-1029 |
WASHER Price: $8.66 |
