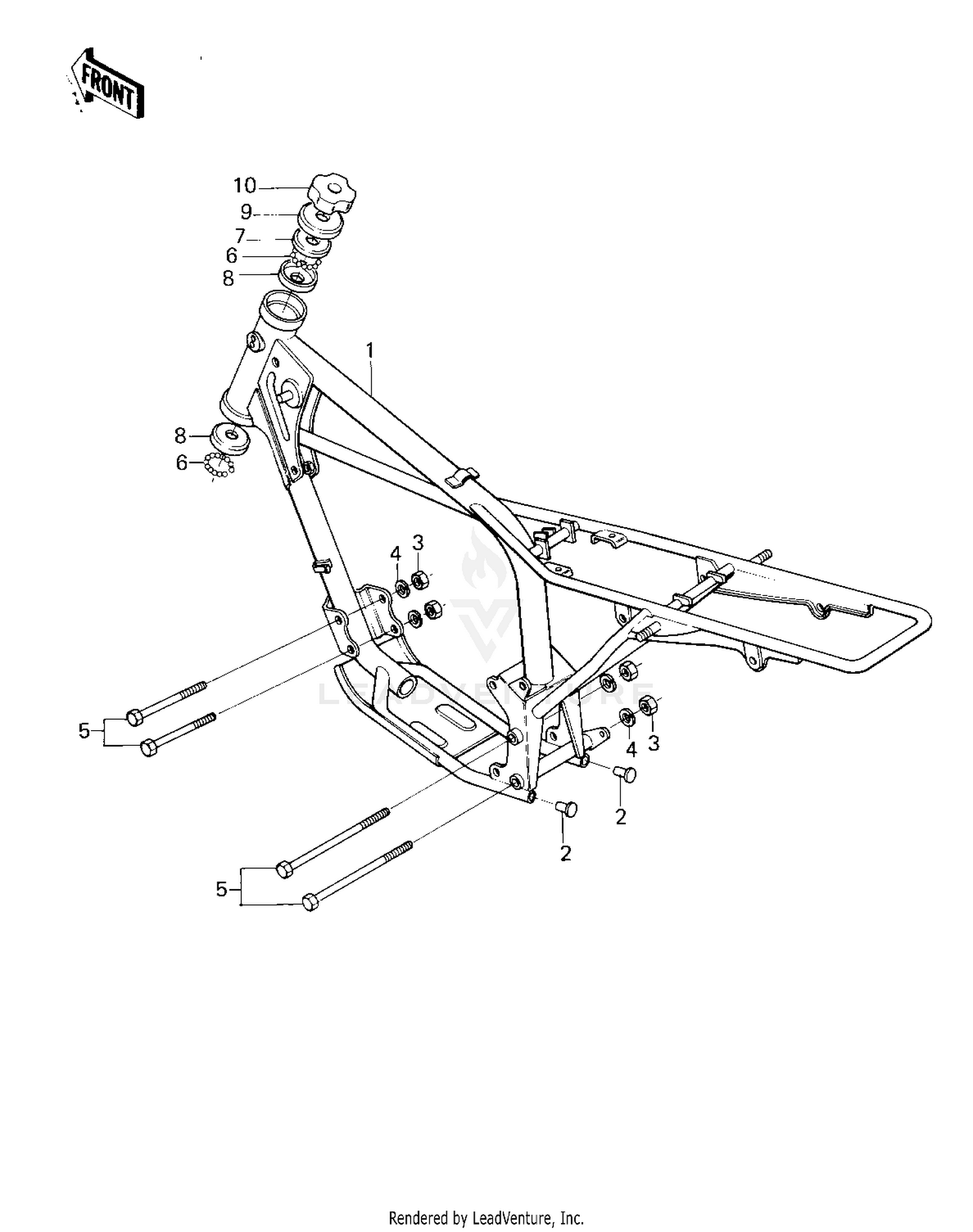

FRAME/FRAME FITTINGS
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 32002-1122 | FRAME Price: $447.77 |
| 2 | 32112-001 | CAP PIPE END Price: $4.71 |
| 3 | 314AA1000 | NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 4 | 461DA1000 | WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 5 | 92001-1603 | BOLT,FLANGED,10X115 Price: $10.65 |
| 6 | 600A0600 | BALL-STEEL,3/16 Price: $1.07 |
| 7 | 92047-005 | CONE UPPER BEARING Price: $12.12 |
| 8 | 92048-004 | RACE BEARING Price: $11.51 |
| 9 | 46098-004 | CAP STEERING STEM Price: $6.16 |
