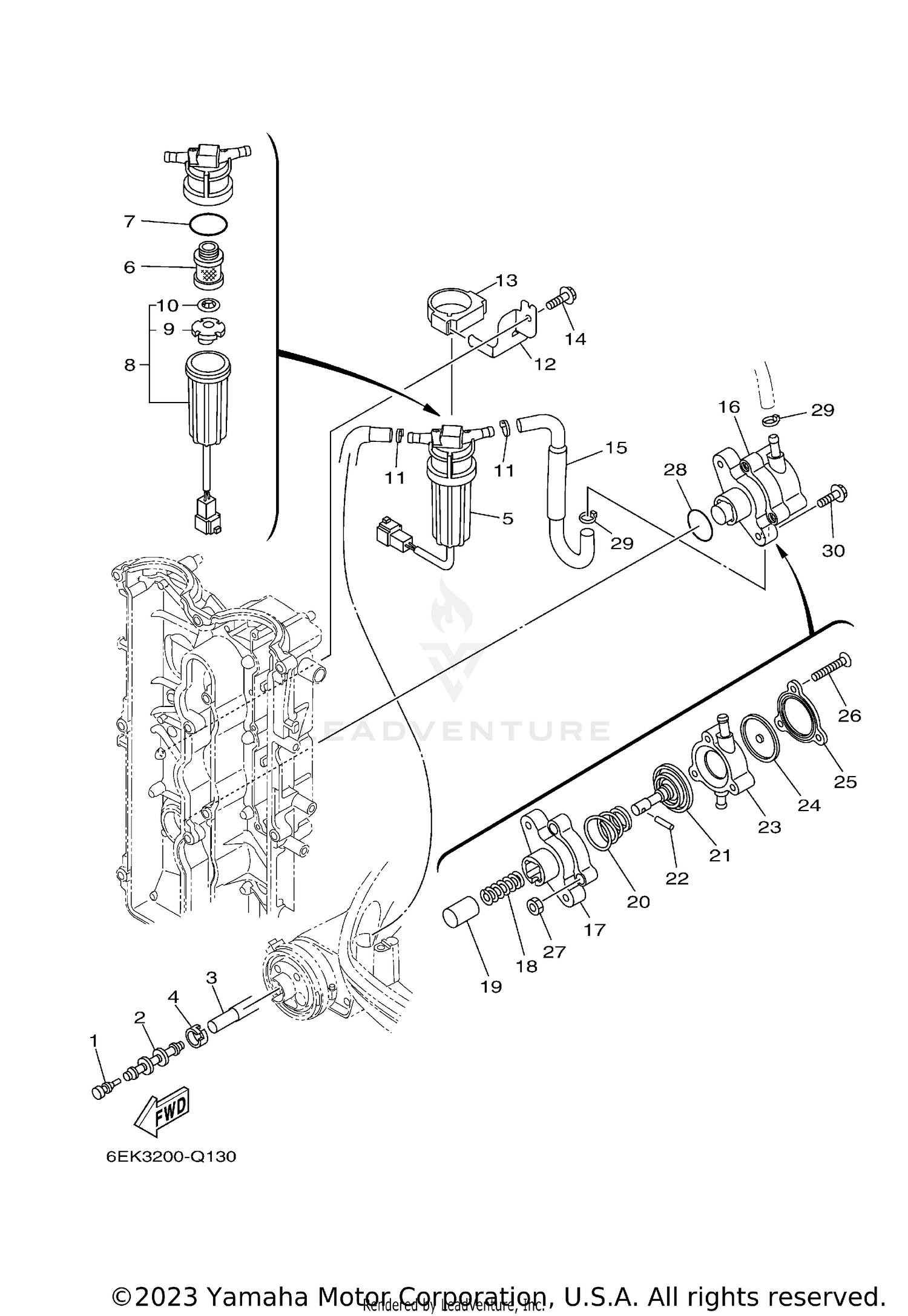

FUEL 1
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 689-85547-01-00 | DAMPER Price: $5.65 |
| 2 | 6AW-24377-01-00 | PIPE, JOINT 2 Price: $24.50 |
| 3 | 6EK-24314-00-00 | PIPE 4 Price: $70.10 |
| 4 | 6E5-24351-51-00 | BAND 1 Price: $10.40 |
| 5 | 6EK-24560-01-00 | FILTER ASSY This part replaces 6EK-24560-00-00. Price: $60.99 |
| 6 | 6D8-WS24A-00-00 | ELEMENT, FILTER (WIT This part replaces 6D8-24563-00-00. Price: $25.35 |
| 7 | 6D8-24564-00-00 | GASKET Price: $7.95 |
| 8 | 6D8-WS24B-00-00 | CUP, FILTER (WITH TA This part replaces 6D8-24562-00-00. Price: $134.55 |
| 9 | 6D8-24469-00-00 | FLOAT, WATER LEVEL Price: $10.95 |
| 10 | 6D8-24519-00-00 | CLIP Price: $5.55 |
| 11 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 12 | 6EK-24566-00-00 | BRACKET, FILTER Price: $7.20 |
| 13 | 6EK-24568-00-00 | BAND, FILTER Price: $4.05 |
| 14 | 95D95-06016-00 | BOLT, FLANGE DEEP Price: $0.95 |
| 15 | 6EK-24311-00-00 | PIPE, FUEL 1 Price: $18.15 |
| 16 | 6EK-24410-00-00 | FUEL PUMP ASSY Price: $166.60 |
| 17 | 68V-24412-00-00 | BODY 1 Price: $65.75 |
| 18 | 68V-24454-00-00 | SPRING Price: $17.15 |
| 19 | 63P-13131-00-00 | PLUNGER Price: $75.05 |
| 20 | 63P-24423-00-00 | SPRING, DIAPHRAGM Price: $12.65 |
| 21 | 68V-24411-00-00 | DIAPHRAGM Price: $66.70 |
| 22 | 68V-24374-00-00 | PIN Price: $6.75 |
| 23 | 6EK-24413-00-00 | BODY 2 Price: $80.50 |
| 24 | 68V-24471-10-00 | DIAPHRAGM Price: $73.40 |
| 25 | 6EK-24414-00-00 | BODY 3 Price: $15.10 |
| 26 | 68V-24444-00-00 | SCREW Price: $5.50 |
| 27 | 68V-24149-00-00 | NUT Price: $6.75 |
| 28 | 93210-29198-00 | O-RING This part replaces 93210-30682-00. Price: $8.49 |
| 29 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
