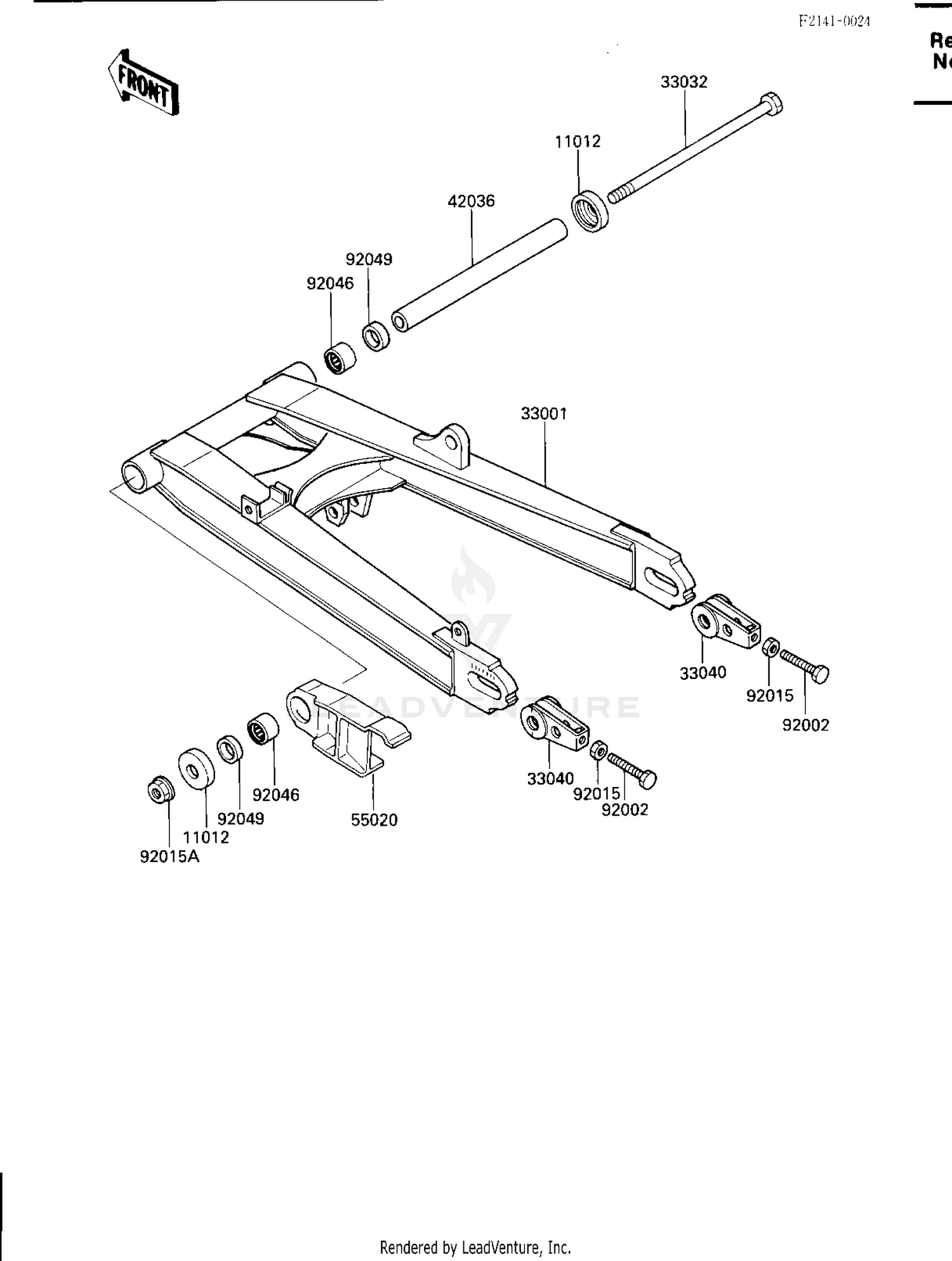

SWING ARM
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 11012 | 11012-1441 | CAP,SWING ARM Price: $16.15 |
| 33001 | 33001-1237-P1 | ARM-COMP-SWING,SILVER Price: $428.63 |
| 33032 | 33032-1114 | SHAFT-SWING ARM Price: $57.60 |
| 33040 | 33040-1051 | ADJUSTER-CHAIN Price: $27.81 |
| 42036 | 42036-1018 | SLEEVE,SWING ARM Price: $52.33 |
| 55020 | 55020-1188 | GUARD,CHAIN Price: $50.37 |
| 92002 | 92002-1958 | BOLT,8X50 This part replaces 92002-1060. Price: $8.35 |
| 92015 | 92015-1364 | NUT,8MM Price: $3.92 |
| 92015A | 92015-1407 | NUT,14MM Price: $9.91 |
| 92046 | 92046-1140 | BEARING-NEEDLE,TA2230 Price: $23.42 |
