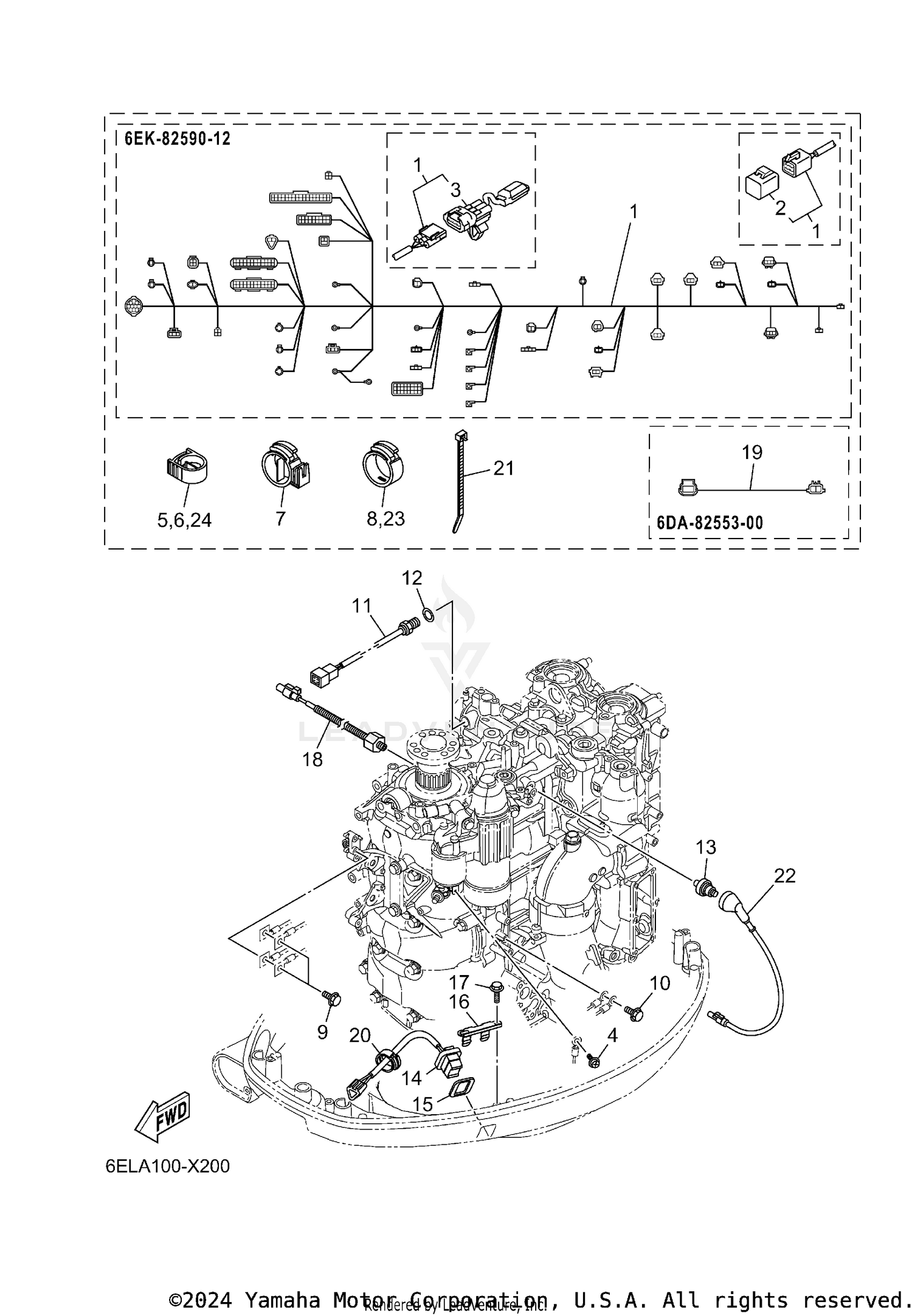

ELECTRICAL 5
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6EK-82590-12-00 | WIRE HARNESS ASSY Price: $581.40 |
| 2 | 6Y8-82582-11-00 | CAP 1 (4 PIN) Price: $7.00 |
| 4 | 97985-04308-00 | SCREW, WITH WASHER Price: $1.55 |
| 5 | 90464-18004-00 | CLAMP Price: $4.40 |
| 6 | 90464-18004-00 | CLAMP Price: $4.40 |
| 7 | 90464-22005-00 | CLAMP Price: $1.40 |
| 8 | 90464-16001-00 | CLAMP Price: $2.39 |
| 9 | 97E95-06516-00 | BOLT, HEXAGON W/W Price: $4.20 |
| 10 | 97E95-06516-00 | BOLT, HEXAGON W/W Price: $4.20 |
| 11 | 6CJ-85790-00-00 | THERMOSENSOR ASSY Price: $72.60 |
| 12 | 90430-14115-00 | GASKET Price: $3.00 |
| 13 | 68V-82504-00-00 | OIL PRESSURE SWITCH ASSY Price: $84.90 |
| 14 | 69J-82563-01-00 | TRIM & TILT SWITCH ASSY Price: $63.90 |
| 15 | 69J-82587-01-00 | GASKET Price: $5.55 |
| 16 | 69J-83614-00-00 | BRACKET Price: $19.20 |
| 17 | 90109-06M86-00 | BOLT Price: $1.81 |
| 18 | 6CJ-85780-02-00 | SENSOR, KNOCK Price: $355.85 |
| 19 | 6DA-82553-00-00 | EXTENSION, WIRE LEAD Price: $26.45 |
| 20 | 90464-16001-00 | CLAMP Price: $2.39 |
| 21 | 90465-13M18-00 | CLAMP Price: $1.85 |
| 22 | 6EK-82553-11-00 | EXTENSION, WIRE LEAD Price: $25.95 |
| 23 | 90464-16001-00 | CLAMP Price: $2.39 |
