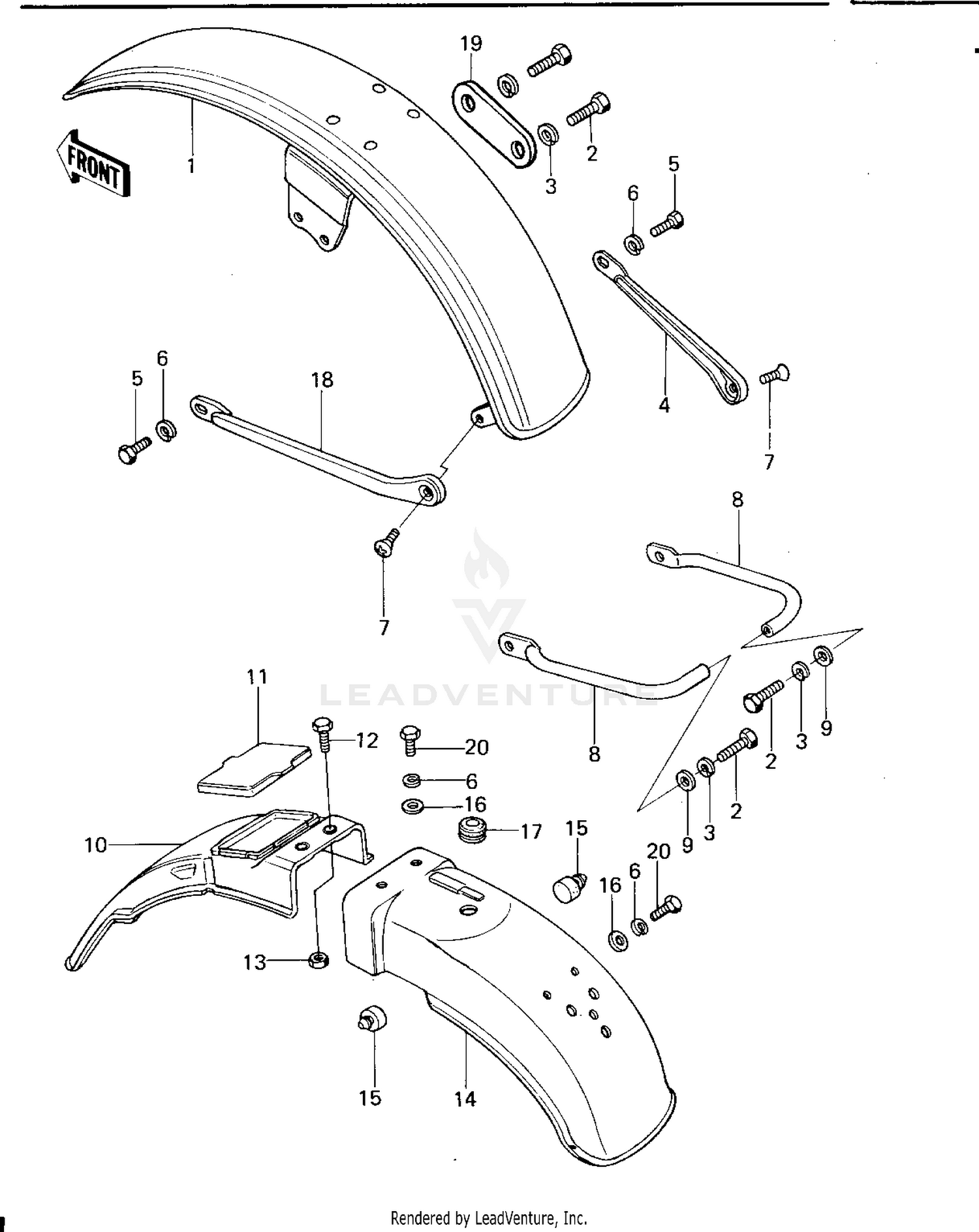

| Ref | Part Number | Description |
|---|
| 1 |
35001-1017 |
FENDER-FR Price: $234.79 |
| 2 |
115BA0816 |
BOLT-SMALL-UPSET This part replaces 115G0816. Price: $0.70 |
| 3 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 4 |
35010-030 |
STAY,FRONT FENDER Price: $12.97 |
| 5 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
| 6 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 7 |
222E0616 |
SCREW,OVL CNTSNK,6X16 Price: $4.42 |
| 8 |
32109-016 |
GRIP,FRAME Price: $64.50 |
| 9 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 10 |
35022-1046 |
FENDER-RR Price: $81.19 |
| 11 |
32099-019 |
CASE,MANUAL Price: $5.78 |
| 12 |
112BA0616 |
BOLT-UPSET,6X16 This part replaces 112G0616. Price: $1.17 |
| 13 |
92017-014 |
NUT,LOCK 6MM Price: $7.51 |
| 14 |
35022-153 |
FENDER-RR Price: $114.76 |
| 15 |
92075-135 |
DAMPER RUBBER,RR FEND Price: $5.59 |
| 16 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 17 |
92071-019 |
GROMMET HARNESS 10MM Price: $3.89 |
| 19 |
92026-1008 |
SPACER,FRONT FENDER Price: $7.34 |
