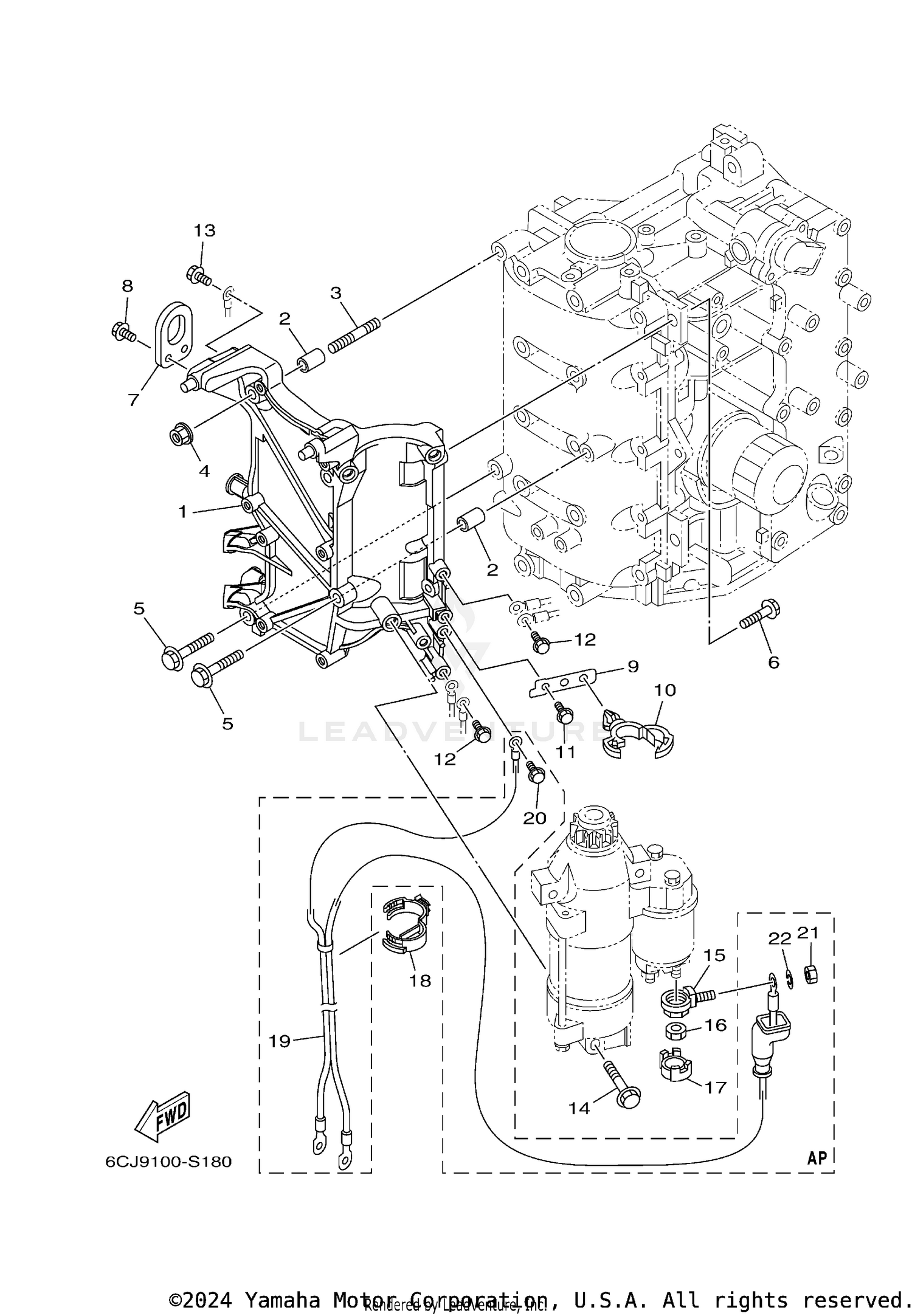

| Ref | Part Number | Description |
|---|
| 1 |
6CJ-81822-00-00 |
BRACKET, STARTING MOTOR Price: $180.20 |
| 2 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 3 |
95680-08330-00 |
BOLT, STUD Price: $5.55 |
| 4 |
90179-08M34-00 |
NUT Price: $4.50 |
| 5 |
97E95-08535-00 |
BOLT, HEXAGON W/W Price: $1.85 |
| 6 |
97E95-08525-00 |
BOLT, HEXAGON W/W Price: $1.50 |
| 7 |
62Y-11119-00-00 |
HANGER, ENGINE Price: $13.25 |
| 8 |
97E95-06520-00 |
BOLT, HEXAGON W/W Price: $3.05 |
| 9 |
6CJ-85525-00-00 |
PLATE Price: $9.85 |
| 10 |
90464-20181-00 |
CLAMP Price: $4.72 |
| 11 |
97E95-06516-00 |
BOLT, HEXAGON W/W Price: $4.20 |
| 12 |
97E95-06516-00 |
BOLT, HEXAGON W/W Price: $4.20 |
| 13 |
97E95-06516-00 |
BOLT, HEXAGON W/W Price: $4.20 |
| 14 |
97513-08545-00 |
BOLT, WITH WASHER Price: $2.99 |
| 15 |
60V-81925-00-00 |
TERMINAL Price: $30.70 |
| 16 |
90179-08003-00 |
NUT Price: $3.20 |
| 17 |
68F-82582-00-00 |
COVER, WIRE HARNESS Price: $3.45 |
| 18 |
90464-28003-00 |
CLAMP This part replaces 90464-30003-00. Price: $4.46 |
