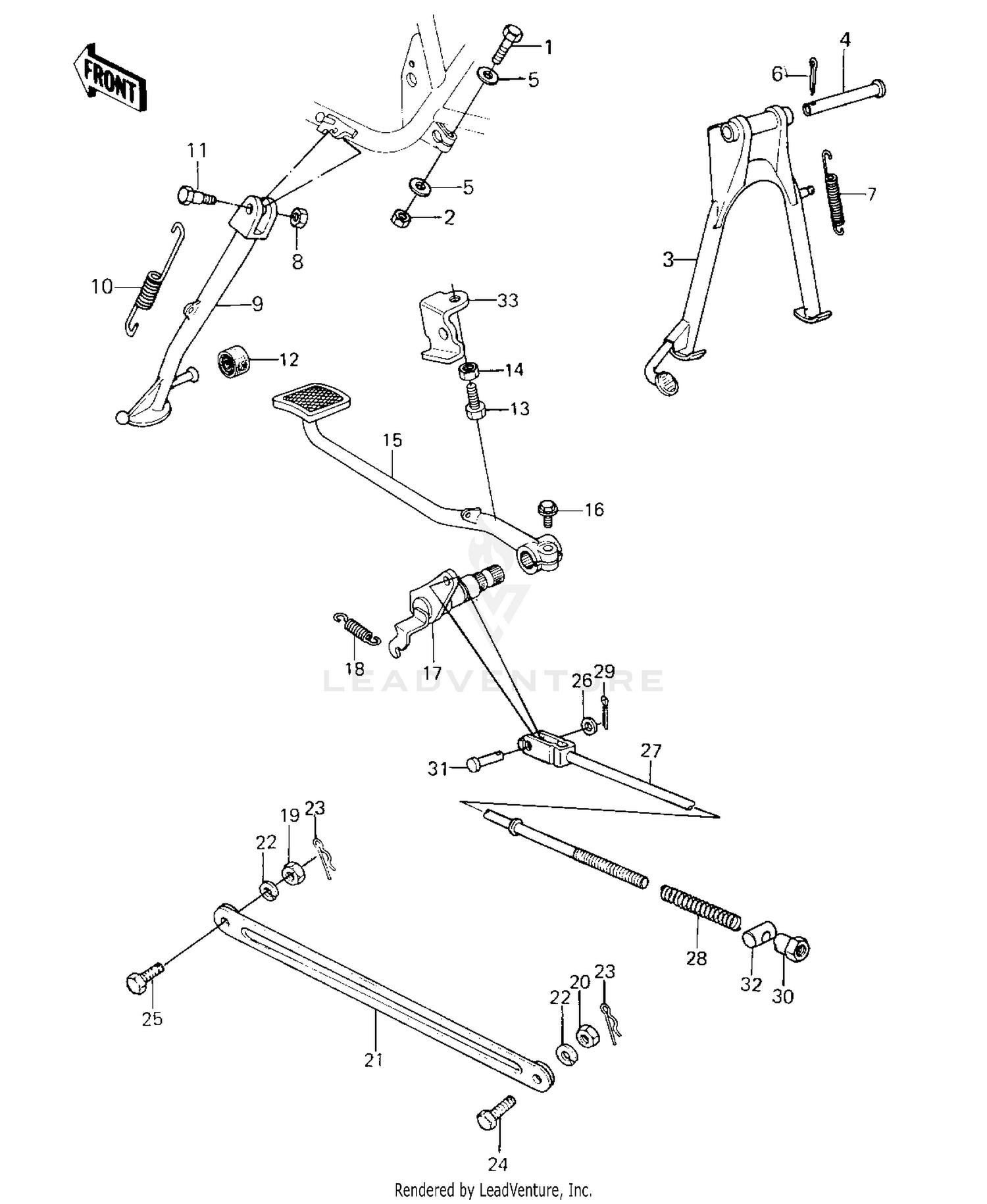

| Ref | Part Number | Description |
|---|
| 1 |
115BA0840 |
BOLT-SMALL-UPSET This part replaces 114G0840. Price: $6.45 |
| 2 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 317B0800. Price: $0.68 |
| 3 |
34011-1026 |
STAND-MAIN Price: $120.65 |
| 4 |
34019-016 |
SHAFT,MAIN STAND Price: $24.35 |
| 5 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 6 |
550AA3030 |
PIN-COTTER,3.0X30 This part replaces 550D3030. Price: $2.51 |
| 7 |
92081-1265 |
SPRING,MAIN STAND Price: $15.02 |
| 8 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 9 |
34024-1047 |
STAND-SIDE Price: $76.52 |
| 10 |
92145-0106 |
SPRING,STAND This part replaces 34025-005. Price: $7.58 |
| 11 |
92003-079 |
BOLT,SIDE STAND Price: $11.79 |
| 12 |
92075-1205 |
DAMPER,STAND STOPPER Price: $24.97 |
| 13 |
112BA0620 |
BOLT-UPSET This part replaces 110B0620. Price: $2.28 |
| 14 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 15 |
43001-1048 |
PEDAL,BRAKE Price: $154.68 |
| 16 |
130BA0825 |
BOLT-FLANGED,8X25 This part replaces 92001-1172. Price: $2.95 |
| 17 |
43004-1013 |
SHAFT,BRAKE Price: $36.94 |
| 18 |
92145-0100 |
SPRING,BRAKE PEDAL RETURN This part replaces 92081-1147. Price: $11.48 |
| 19 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 20 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 21 |
43007-027 |
TORQUE LINK-REAR BRK Price: $27.18 |
| 22 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 23 |
554DA0800 |
PIN-SNAP This part replaces 554A0800. Price: $1.36 |
| 24 |
92003-034 |
BOLT HEX HEAD 10MM Price: $13.21 |
| 25 |
92151-1876 |
BOLT,10X29 This part replaces 92003-096. Price: $10.72 |
| 26 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 27 |
43011-1014 |
ROD,BRAKE Price: $35.74 |
| 28 |
43012-001 |
SPRING,BRAKE ROD Price: $4.65 |
| 29 |
550AA2015 |
PIN-COTTER,2.0X15 This part replaces 550D2015. Price: $1.12 |
| 30 |
92015-042 |
NUT,BRAKE ROD Price: $6.22 |
| 31 |
92043-064 |
PIN,6X17 Price: $4.69 |
| 32 |
92043-065 |
PIN-BRAKE ROD Price: $5.57 |
