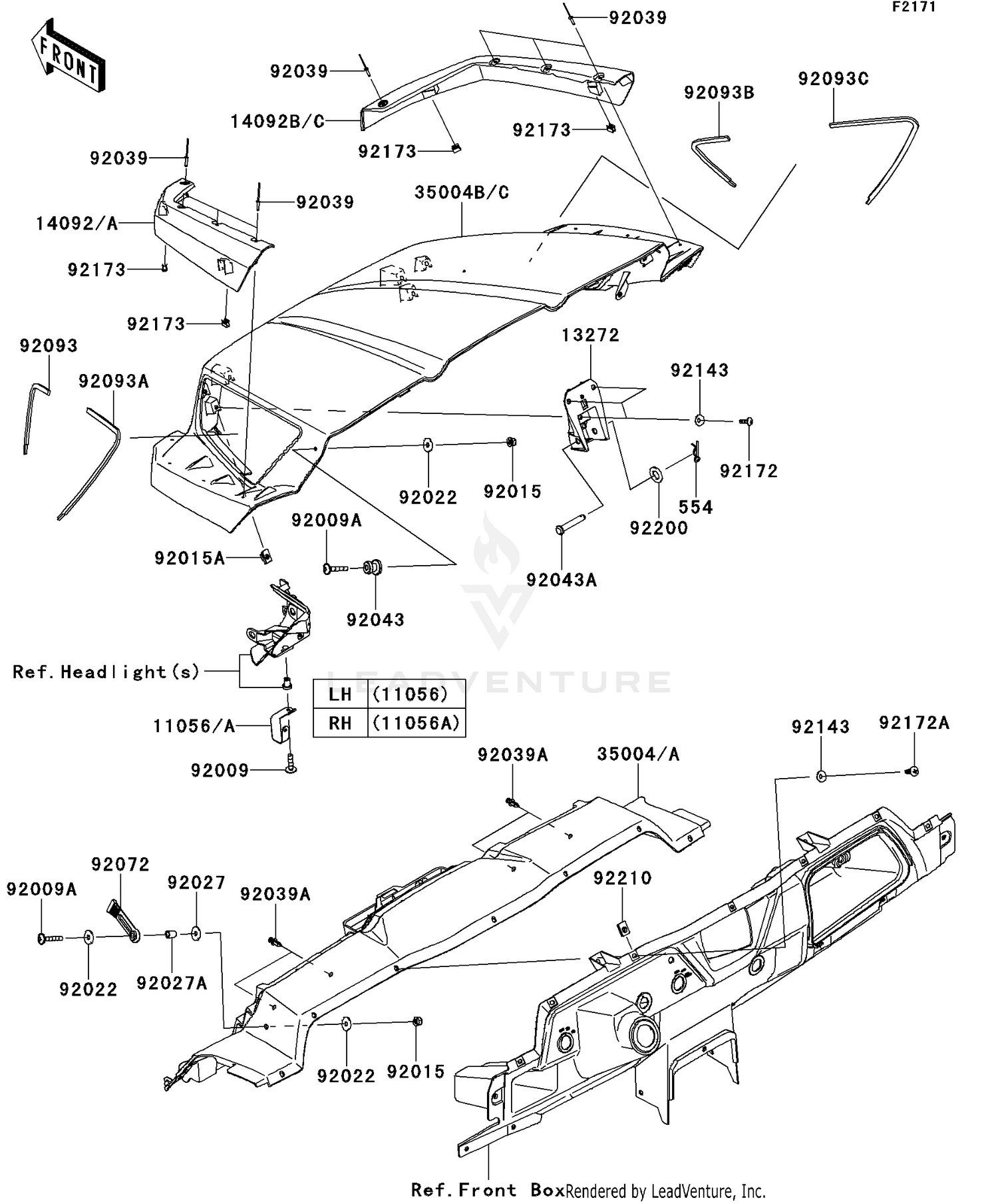

| Ref | Part Number | Description |
|---|
| 554 |
554DA1200 |
PIN-SNAP,12MM Price: $3.96 |
| 11056 |
11056-0129 |
BRACKET,LH Price: $5.57 |
| 11056A |
11056-0130 |
BRACKET,RH Price: $5.57 |
| 13272 |
13272-0871 |
PLATE Price: $49.98 |
| 14092 |
14092-0746-266 |
COVER,OVER FENDER,LH, Price: $84.90 |
| 14092B |
14092-0756-266 |
COVER,OVER FENDER,RH, Price: $84.90 |
| 35004 |
35004-0303-266 |
FENDER-FRONT,RR,B.WHI Price: $55.36 |
| 35004B |
35004-0333-266 |
FENDER-FRONT,FR,B.WHI This part replaces 35004-0308-266. Price: $258.83 |
| 92009 |
92009-1465 |
SCREW,6X25 Price: $3.92 |
| 92009A |
92009-1672 |
SCREW,6X35 Price: $3.92 |
| 92015 |
92015-1339 |
NUT,LOCK,FLANGED,6MM Price: $1.35 |
| 92015A |
92015-1627 |
NUT,5MM Price: $5.93 |
| 92022 |
92022-193 |
WASHER,6.5X20X1.6,WHITE Price: $5.33 |
| 92027 |
92027-1260 |
COLLAR,L=5.1 Price: $6.22 |
| 92027A |
92027-162 |
COLLAR,6.8X10X12 Price: $6.57 |
| 92039 |
92039-0769 |
RIVET,5X23.3 This part replaces 92039-0704. Price: $1.86 |
| 92039A |
92039-0776 |
RIVET This part replaces 92039-1229. Price: $1.19 |
| 92043 |
92043-0197 |
PIN Price: $2.98 |
| 92043A |
92043-0716 |
PIN,12.4X72.4 Price: $7.24 |
| 92072 |
92072-0144 |
BAND Price: $6.62 |
| 92093 |
92093-0168 |
SEAL,FR,LH Price: $7.53 |
| 92093A |
92093-0169 |
SEAL,RR,LH Price: $7.53 |
| 92093B |
92093-0170 |
SEAL,FR,RH Price: $7.53 |
| 92093C |
92093-0171 |
SEAL,RR,RH Price: $7.53 |
| 92143 |
92143-1087 |
COLLAR Price: $4.31 |
| 92172 |
92172-0322 |
SCREW,5X16 Price: $2.15 |
| 92172A |
92172-0488 |
SCREW,TAPPING,6X20 Price: $3.02 |
| 92173 |
92173-0104 |
CLAMP Price: $3.52 |
| 92200 |
92200-0451 |
WASHER,13X24X2 Price: $2.97 |
