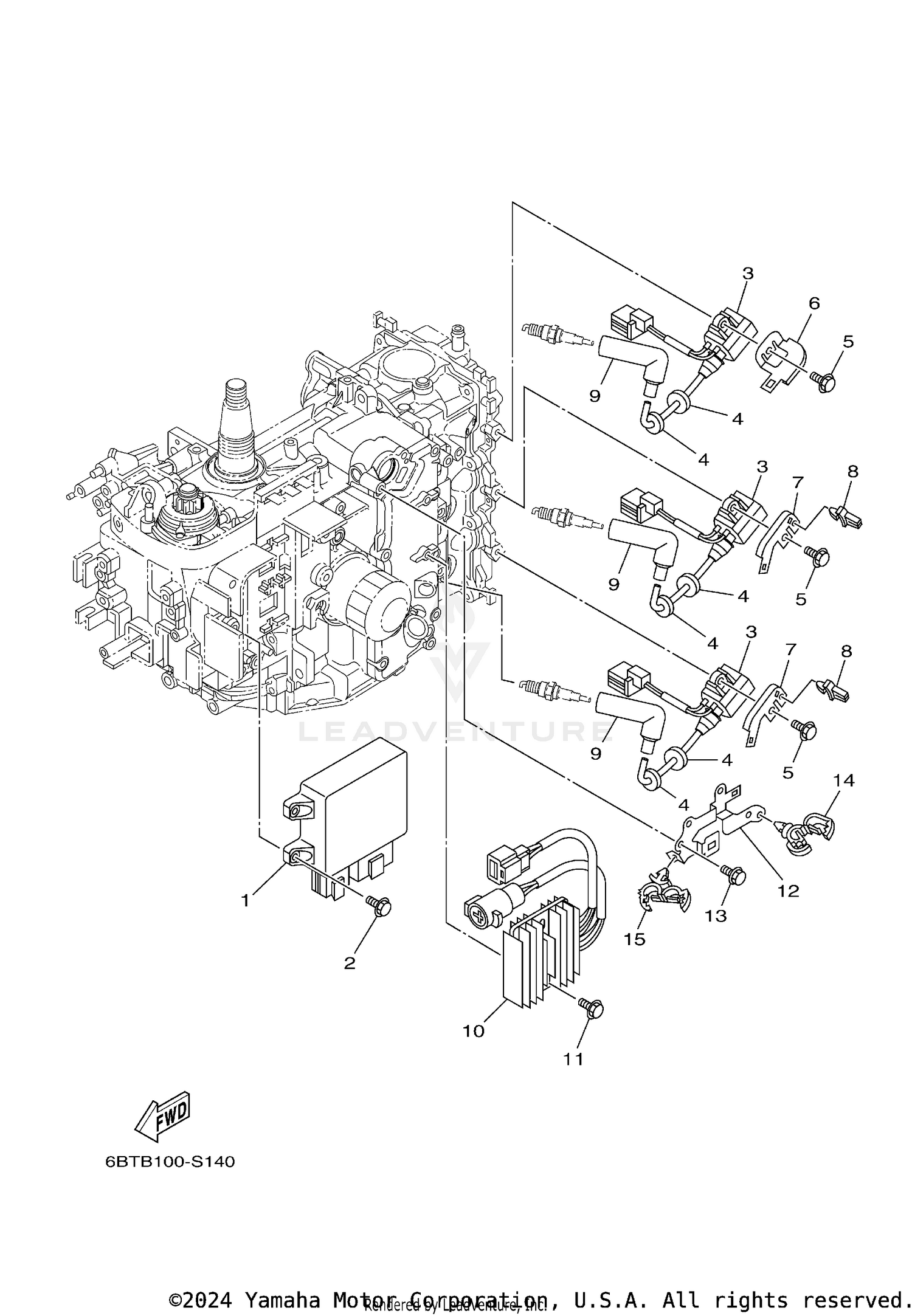

ELECTRICAL 1
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6BG-8591A-22-00 | ENGINE CONTROL UNIT ASSY Price: $1,372.25 |
| 2 | 97E95-06525-00 | BOLT, HEXAGON W/W Price: $1.00 |
| 3 | 6BG-85570-00-00 | IGNITION COIL ASSY Price: $125.25 |
| 4 | 90480-25003-00 | GROMMET Price: $5.50 |
| 5 | 97E95-06525-00 | BOLT, HEXAGON W/W Price: $1.00 |
| 6 | 6BG-82398-00-00 | PLATE 3 Price: $15.10 |
| 7 | 6BG-82389-00-00 | PLATE 2 Price: $7.05 |
| 8 | 90464-06001-00 | CLAMP Price: $3.20 |
| 9 | 6AH-82370-00-00 | PLUG CAP ASSY Price: $79.65 |
| 10 | 6BG-81960-00-00 | RECTIFIER & REGULATOR ASSY Price: $255.80 |
| 11 | 97E95-06525-00 | BOLT, HEXAGON W/W Price: $1.00 |
| 12 | 6BG-81528-00-00 | CLAMP 1 Price: $31.10 |
| 13 | 97E95-06516-00 | BOLT, HEXAGON W/W Price: $4.20 |
| 14 | 90464-13249-00 | CLAMP Price: $3.55 |
