| Ref | Part Number | Description |
|---|
| 10a |
417222937 |
Fixed Flange Ass'y Price: $239.99 |
| 10aa |
250000418 |
Hex. Flange Screw M6 X 18, Scotch Grip Price: $4.19 |
| 10ab |
417223501 |
Calibration Screw Price: $14.49 |
| 10ac |
417005600 |
Washer Price: $4.19 |
| 10ad |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 10ae |
732401030 |
O-Ring Price: $1.19 |
| 10af |
417222992 |
Slider Shoe Price: $4.59 |
| 10ag |
417225070 |
Ring Gear_Starter This part replaces 417223738. Price: $244.99 |
| 10ah |
250000533 |
Hex. Flange Screw M8 X 1.25 X 16 Price: $3.09 |
| 10aj |
417009205 |
Guard Price: $21.99 |
| 10ak |
250000412 |
Hex. Flange Screw M6 X 12, Scotch Grip Price: $4.19 |
| 10c |
417222758 |
Bushing Price: $22.49 |
| 10e |
293370037 |
Circlip Price: $3.29 |
| 10h |
417222947 |
Roller Price: $21.99 |
| 10j |
417004302 |
Stopper Washer Price: $15.99 |
| 10k |
417004308 |
Pin Price: $14.49 |
| 10m |
250400060 |
Cotter Pin Price: $2.09 |
| 10n |
417223164 |
Lever Axle Price: $4.59 |
| 10p |
417222312 |
Spring Seat Price: $9.79 |
| 10q |
414817800 |
Spring (Blue/Violet) Price: $42.99 |
| 10s |
417009204 |
Bushing Price: $17.49 |
| 10u |
205084044 |
Socket Head Screw M8 X 1.25 X 40 Price: $2.89 |
| 10v |
250200009 |
Lock Washer 8 mm Price: $2.19 |
| 10w |
417223669 |
Governor Cup Ass'y Price: $489.99 |
| 10y |
417222515 |
Ramp 412 Price: $39.99 |
| 10z |
250400050 |
Spring Pin M10 X 22 Price: $3.09 |
| 20 |
250200144 |
Conical Spring Washer M14 Price: $4.49 |
| 30 |
417120000 |
Drive Pulley Bolt Price: $66.99 |
| 100b |
417127016 |
Pulley Roller Price: $25.99 |
| 100c |
417127294 |
Pivot Stud Price: $14.99 |
| 100d |
250200009 |
Lock Washer 8 mm Price: $2.19 |
| 100f |
250400063 |
Spring Pin M3 X 30 Price: $2.19 |
| 100n |
417127318 |
Bushing ID 41mm OD 45mm X 19mm L Price: $19.49 |
| 100q |
293370049 |
Circlip Price: $5.09 |
| 100r |
417127039 |
Black, Return Spring Price: $47.99 |
| 100s |
417127116 |
Swivel Abutment Price: $9.59 |
| 100t |
250000757 |
Button Head Torx Screw M8 X 25 S.Gr Price: $2.09 |
| 100v |
415129604 |
Calibration Ass'y Price: $22.49 |
| 100w |
250000981 |
Socket Screw M5 X 25 Price: $1.69 |
| 100x |
234051410 |
Flat Washer M5 Price: $0.55 |
| 100y |
232551414 |
Elastic Stop Nut M5 Price: $0.89 |
| 100z |
417127155 |
Washer Price: $8.39 |
| 120 |
517302322 |
Strength Washer Price: $12.99 |
| 130 |
207287544 |
Hex. Cap Screw M8 X 75 Price: $5.29 |
| 160 |
417300265 |
Spacer Price: $2.39 |
| 200 |
417300586 |
Drive Belt This part replaces 417300197. Price: $154.99 |
| 300 |
417300357 |
Belt Guard Price: $93.99 |
| 330 |
417300423 |
Front Bracket Price: $7.49 |
| 340 |
390909200 |
Avex Rivet Price: $0.30 |
| 350 |
417300381 |
Guide Price: $11.99 |
| 360 |
417300439 |
CVT Air Duct Price: $29.99 |
| 370 |
293150103 |
Pop Rivet 3/16" Price: $0.57 |
| 400 |
417300422 |
Front Support Price: $8.79 |
| 410 |
293150104 |
Pop Rivet 3/16" Price: $1.09 |
| 420 |
517225900 |
Flat Washer Price: $0.18 |
| 450 |
417300421 |
Reinforcement Plate Price: $4.49 |
| 460 |
390909100 |
Avex Rivet Price: $0.30 |
| 500 |
417300448 |
BELT GUARD BRACKET - Call your local BRP dealership Price: $31.99 |
| 510 |
250000742 |
Torx Screw M5 X 14 Price: $1.49 |

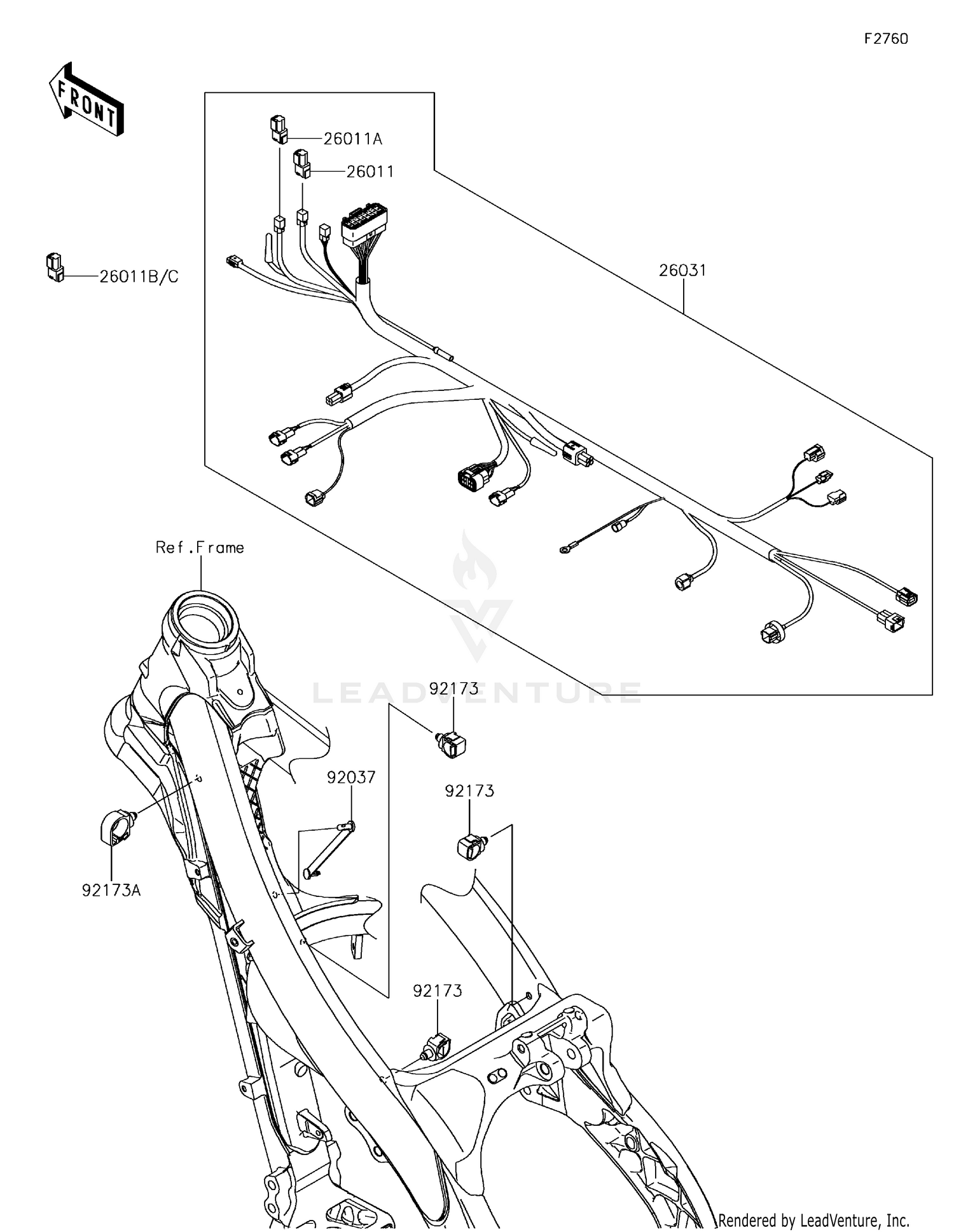

| 26011 |
26011-0273 |
WIRE-LEAD,NATURAL Price: $15.62 |
| 26011A |
26011-0727 |
WIRE-LEAD,GREEN Price: $15.80 |
| 26011B |
26011-0728 |
WIRE-LEAD,MODE SELECT,BLACK Price: $15.80 |
| 26011C |
26011-0748 |
WIRE-LEAD,MODE SELECT,WHITE Price: $15.80 |
| 26031 |
26031-2255 |
HARNESS,MAIN Price: $332.78 |
| 92037 |
92037-1903 |
CLAMP,SPEED,L=80.5 Price: $7.84 |
| 92173 |
92173-0736 |
CLAMP,12MM DIA. Price: $5.05 |
