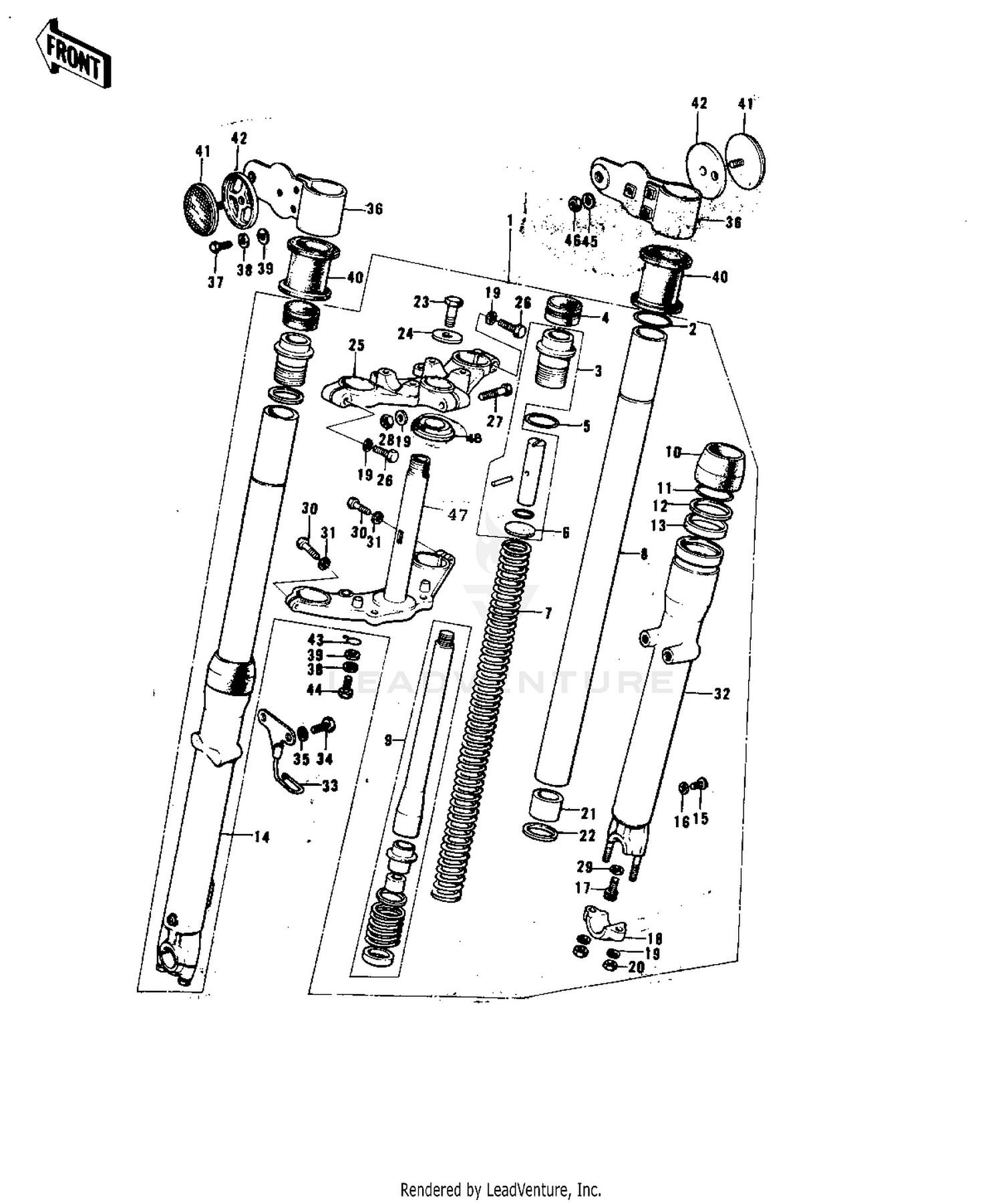

| Ref | Part Number | Description |
|---|
| 1 |
44001-127 |
FORK-FRONT Price: $829.88 |
| 2 |
44044-009 |
CIRCLIP Price: $6.43 |
| 3 |
44041-047 |
BOLT,FORK TOP Price: $37.17 |
| 4 |
44062-004 |
CAP-FORK TOP BOLT Price: $3.11 |
| 6 |
44029-015 |
WASHER-FORK SPRG SEAT Price: $0.71 |
| 7 |
44026-028 |
SPRING-FORK Price: $29.30 |
| 8 |
44013-022 |
TUBE-FORK INNER Price: $195.20 |
| 9 |
44022-009 |
CYLINDER-FORK Price: $95.88 |
| 10 |
44010-019 |
DUST SHIELD-FORK Price: $10.02 |
| 11 |
44044-005 |
CIRCLIP OIL SEAL FIT Price: $9.20 |
| 12 |
44043-023 |
WASHER OIL SEAL FIT Price: $3.76 |
| 13 |
44009-026 |
OIL SEAL This part replaces 44009-011. Price: $60.50 |
| 14 |
44005-053 |
TUBE,LH,FORK OUTER Price: $181.01 |
| 15 |
44041-062 |
SCREW Price: $3.64 |
| 16 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 17 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 18 |
44063-007 |
HOLDER,FRONT AXLE Price: $16.73 |
| 19 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 20 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 21 |
44018-003 |
PISTON FORK Price: $15.50 |
| 22 |
44044-008 |
CIRCLIP FORK PISTON Price: $9.78 |
| 23 |
44041-007 |
BOLT STRNG STEM HEAD Price: $16.04 |
| 24 |
44043-016 |
WASHER STRNG STEM HD Price: $10.99 |
| 25 |
44039-060 |
HEAD,STEERING STEM Price: $152.64 |
| 26 |
44041-044 |
BOLT-STEERING STEM HD Price: $9.20 |
| 27 |
44041-042 |
BOLT-STEERING STEM HD Price: $5.13 |
| 28 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 29 |
44045-030 |
GASKET FORK CYL BOLT Price: $4.99 |
| 30 |
92003-064 |
BOLT-HEX HEAD,12X36 Price: $25.59 |
| 31 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 32 |
44006-051 |
TUBE,RH,FORK OUTER Price: $198.31 |
| 33 |
54030-007 |
GUIDE-CABLE Price: $7.09 |
| 34 |
115G0812 |
BOLT-SMALL-UPSET,8X12 This part replaces 114G0812. Price: $4.16 |
| 35 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 36 |
23064-010-21 |
BRACKET-HEAD LAMP,BLK Price: $10.95 |
| 37 |
92007-027 |
BOLT-HEX HEAD,6X18 Price: $6.02 |
| 38 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 39 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 40 |
92075-059 |
DAMPER RUBBER Price: $6.51 |
| 41 |
28012-006 |
REFLECTOR-REFLEX,FRNT Price: $23.68 |
| 42 |
92075-137 |
DAMPER RUBBER Price: $5.32 |
| 43 |
92037-083 |
CLAMP Price: $3.01 |
| 44 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 45 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 46 |
311AA0500 |
NUT-HEX,5MM This part replaces 311B0500. Price: $0.47 |
| 47 |
44037-055 |
STEM,STEERING Price: $132.58 |
