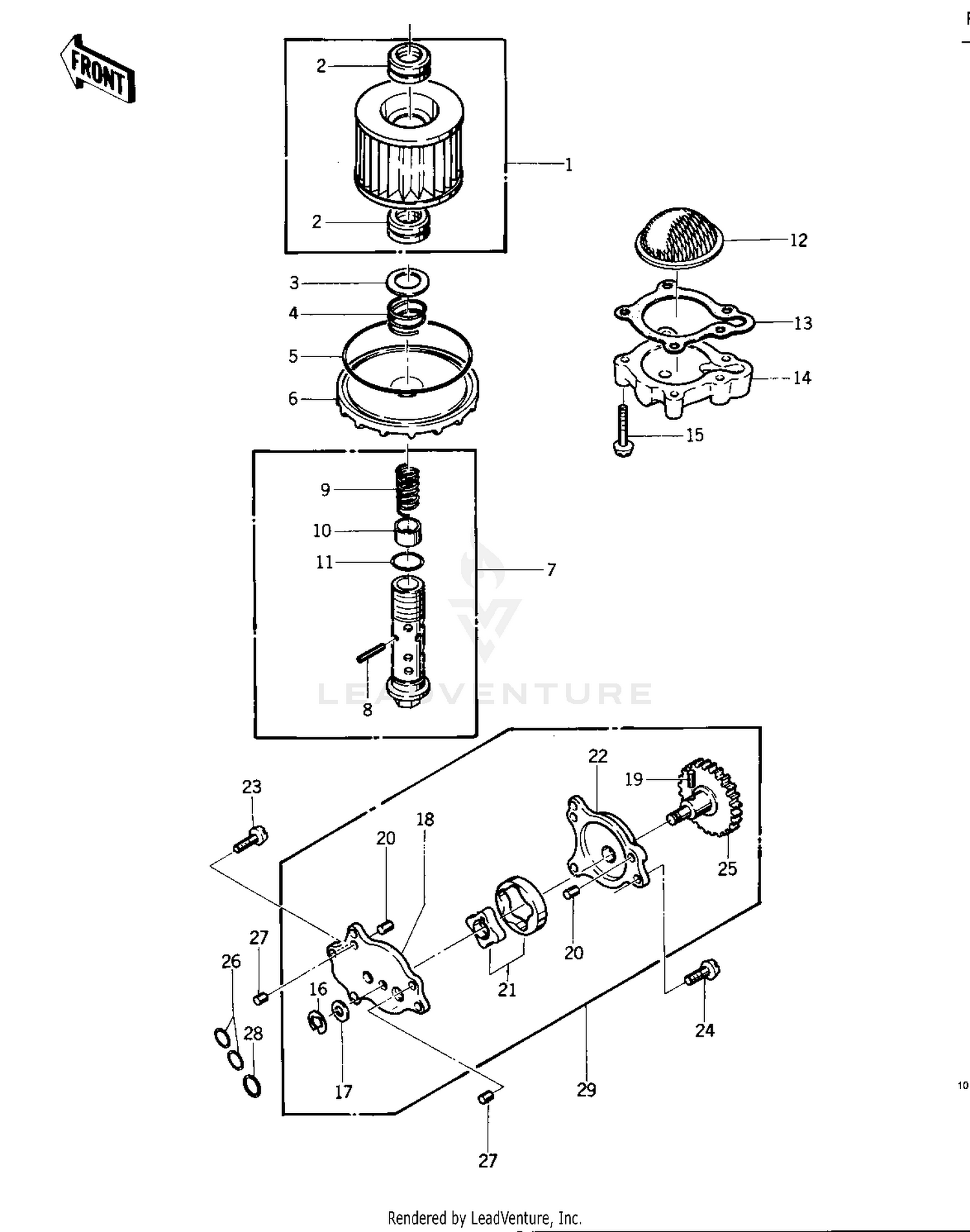

| Ref | Part Number | Description |
|---|
| 1 |
16099-003 |
ELEMENT-OIL FILTER Price: $12.20 |
| 2 |
16135-010 |
GROMMET,OIL FILTER Price: $3.79 |
| 3 |
92026-1535 |
SPACER This part replaces 92022-144. Price: $7.62 |
| 4 |
92081-1018 |
SPRING,OIL FILTER Price: $4.65 |
| 5 |
671B2590 |
O RING,90MM Price: $9.91 |
| 6 |
16101-004 |
COVER,OIL FILTER Price: $25.50 |
| 7 |
16126-1108 |
VALVE,OIL FILTER Price: $41.98 |
| 8 |
92043-111 |
PIN,SPRING,2X20 Price: $6.27 |
| 9 |
92081-133 |
SPRING,PISTON Price: $9.08 |
| 10 |
92136-001 |
PISTON Price: $6.05 |
| 11 |
670B2016 |
O RING,16MM Price: $1.36 |
| 12 |
16111-003 |
FILTER,OIL Price: $20.68 |
| 13 |
11009-1874 |
GASKET,OIL FILTER COV Price: $7.55 |
| 14 |
16101-003 |
COVER,OIL STRAINER Price: $19.22 |
| 15 |
220AA0630 |
SCREW-PAN-CROS,6X30 This part replaces 220B0630. Price: $3.67 |
| 16 |
482K5000 |
CIRCLIP 5MM Price: $2.96 |
| 17 |
92026-098 |
WASHER,THRUST Price: $4.10 |
| 18 |
16142-002 |
COVER,OIL PUMP Price: $21.17 |
| 19 |
551A0408 |
PIN-DOWEL,4X8 Price: $0.78 |
| 20 |
551A0608 |
PIN-DOWEL,6X8 Price: $3.92 |
| 21 |
16154-001 |
ROTOR ASSY,OIL PUMP Price: $44.71 |
| 22 |
16141-002 |
BODY,OIL PUMP Price: $43.19 |
| 23 |
220B0618 |
SCREW-PAN-CROS,6X18 Price: $3.35 |
| 24 |
220AA0625 |
SCREW-PAN-CROS,6X25 This part replaces 220B0625. Price: $2.78 |
| 25 |
16085-023 |
GEAR,OIL PUMP DRIVEN Price: $77.66 |
| 26 |
92055-072 |
O RING,11.5MM Price: $6.46 |
| 27 |
551A0608 |
PIN-DOWEL,6X8 Price: $3.92 |
| 28 |
92055-073 |
O RING,13.5MM Price: $10.04 |
