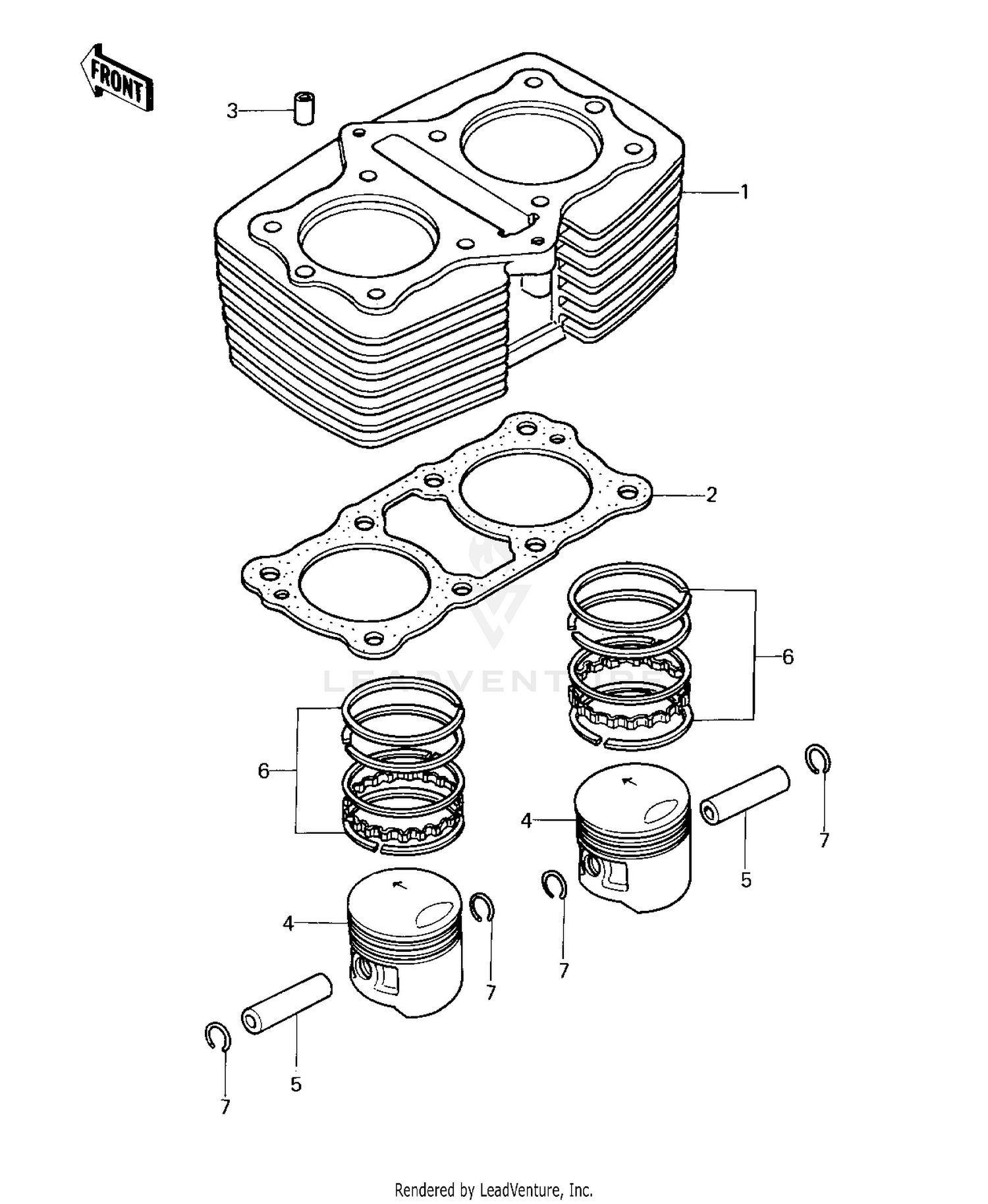

CYLINDER/PISTONS ('80 D1)
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11006-1004 | CYLINDER ASSY Price: $500.34 |
| 2 | 11060-1519 | GASKET,CYLINDER BASE This part replaces 11009-1176. Price: $23.11 |
| 3 | 92043-1037 | PIN,DOWEL,10X14 Price: $0.74 |
| 4 | 13001-1032 | PISTON,STD Price: $120.31 |
| 4 | 13027-1015 | PISTON,0.040",O/S Price: $116.54 |
| 4 | 13029-1014 | PISTON,0.020",O/S Price: $116.54 |
| 5 | 13002-1011 | PIN-PISTON Price: $36.07 |
| 6 | 13008-5029 | RING SET,PISTON,STD Price: $112.62 |
| 6 | 13024-5015 | RING SET,0.040",O/S Price: $93.21 |
| 6 | 13025-5015 | RING SET,0.020",O/S Price: $93.21 |
