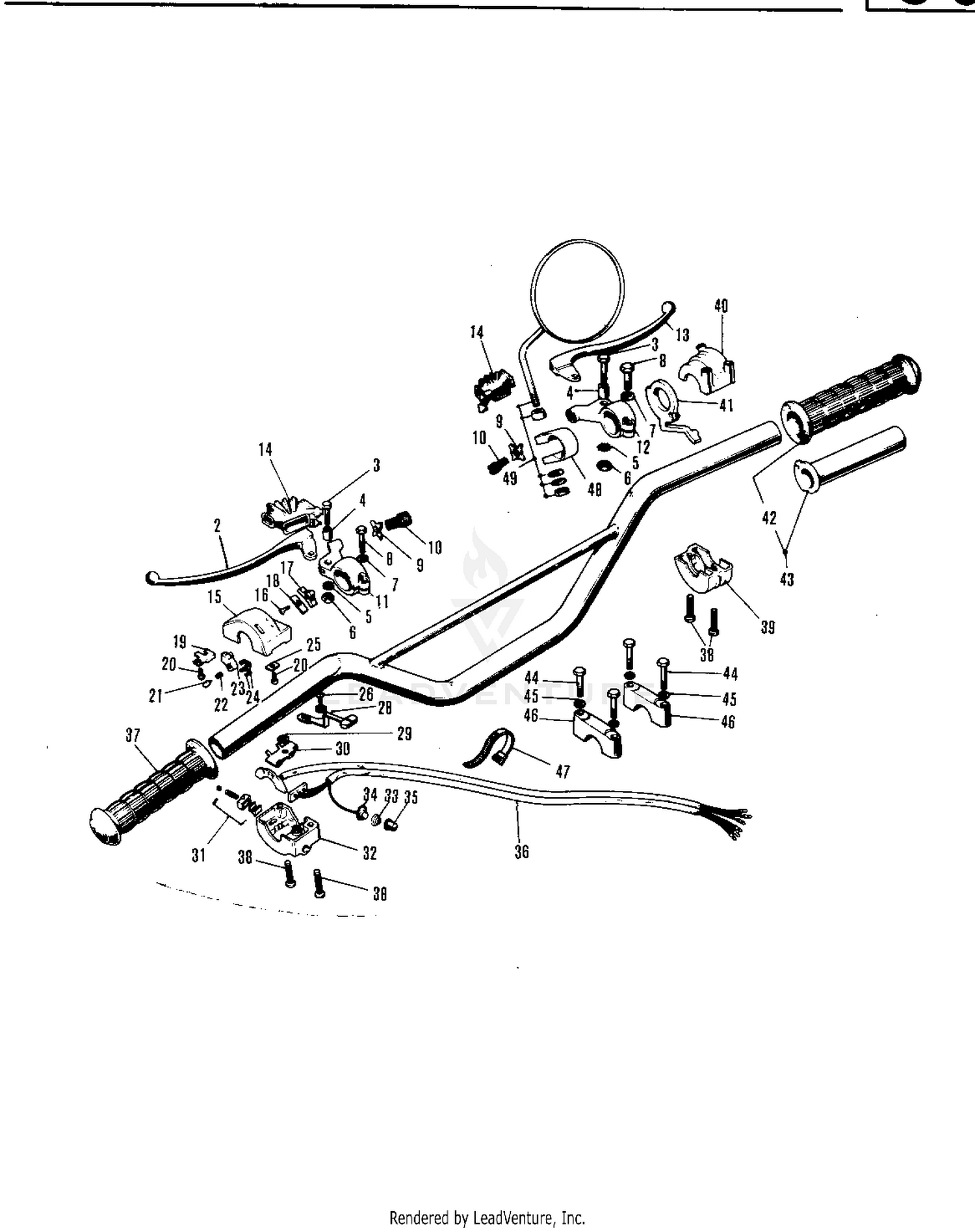

| Ref | Part Number | Description |
|---|
| 1 |
46004-016 |
HANDLEBAR Price: $99.22 |
| 2 |
46092-015 |
LEVER-CLUTCH Price: $20.99 |
| 3 |
92007-020 |
BOLT HEX HEAD 5X20 Price: $6.37 |
| 4 |
46059-011 |
COLLAR LEVER Price: $8.03 |
| 5 |
464EA0500 |
WASHER-TOOTHED This part replaces 464H0500. Price: $1.01 |
| 6 |
312AA0500 |
NUT-HEX,5MM This part replaces 312B0500. Price: $0.47 |
| 7 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 8 |
110N0622 |
BOLT, HEX HEAD 6X22 Price: $4.56 |
| 9 |
92210-1131 |
NUT,CABLE ADJUST LOCK This part replaces 46056-001. Price: $5.55 |
| 10 |
46055-003 |
SCREW,CABLE ADJUST,8MM Price: $16.33 |
| 11 |
46094-010 |
HOLDER,CLUTCH LEVER Price: $42.97 |
| 12 |
46060-006 |
HOLDER-FR BRAKE LEVER Price: $34.55 |
| 13 |
46058-004 |
LEVER FRONT BRAKE Price: $24.84 |
| 15 |
46086-013 |
CASE L.H SWITCH UPPER Price: $12.76 |
| 16 |
221B0308A |
SCREW CNTSNK HD 3X8 Price: $5.98 |
| 17 |
46044-011 |
KNOB-L.H SWITCH Price: $8.72 |
| 18 |
46031-003 |
SPRING L.H SW KNOB Price: $1.92 |
| 19 |
46085-014 |
HOLDER L.H SW LOWER B Price: $1.73 |
| 20 |
92009-1123 |
SCREW,3X5 This part replaces 220B0305A. Price: $0.59 |
| 21 |
46079-002 |
CONTACT L.H SWITCH Price: $1.76 |
| 22 |
46031-004 |
SPRING L.H SWITCH Price: $1.84 |
| 23 |
46089-003 |
SWITCH L.H Price: $4.03 |
| 24 |
46080-002 |
PLATE L.H SW CONTACT Price: $1.76 |
| 25 |
46085-013 |
HOLDER L.H SW UPPER A Price: $1.76 |
| 26 |
220AA0308 |
SCREW-PAN-CROS,3X8 This part replaces 220B0308. Price: $0.59 |
| 28 |
46044-006 |
KNOB-SWITCH Price: $4.93 |
| 29 |
92095-010 |
WASHER Price: $3.64 |
| 30 |
46085-015 |
HOLDER L.H SW LOWER Price: $1.35 |
| 31 |
46089-004 |
SLIDE BLOCK AY-L.H SW Price: $7.37 |
| 32 |
46077-015 |
CASE L.H SWITCH LOWER Price: $13.52 |
| 33 |
27010-1009 |
SWITCH ASSY,HORN BUTN Price: $9.20 |
| 34 |
27010-1009 |
SWITCH ASSY,HORN BUTN Price: $9.20 |
| 35 |
27010-1009 |
SWITCH ASSY,HORN BUTN Price: $9.20 |
| 36 |
46082-017 |
WIRING HARNESS-L.H SW Price: $25.42 |
| 37 |
46075-017 |
RUBBER-L.H GRIP Price: $33.73 |
| 38 |
220AA0522 |
SCREW-PAN-CROS,5X22 This part replaces 220B0522. Price: $0.75 |
| 39 |
46023-005 |
CASE-R.H LOWER Price: $18.64 |
| 40 |
46041-005 |
CASE-R.H.UPPER Price: $80.99 |
| 41 |
46096-006 |
LEVER-STARTER Price: $36.18 |
| 42 |
46061-012 |
RUBBER-R.H GRIP Price: $35.79 |
| 43 |
46019-013 |
GRIP ASSY-THROTTLE Price: $21.26 |
| 44 |
92001-1405 |
BOLT 8X38 Price: $16.50 |
| 45 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 47 |
92072-030 |
BAND,L=123 Price: $5.00 |
| 48 |
56006-001 |
BRACKET Price: $18.51 |
