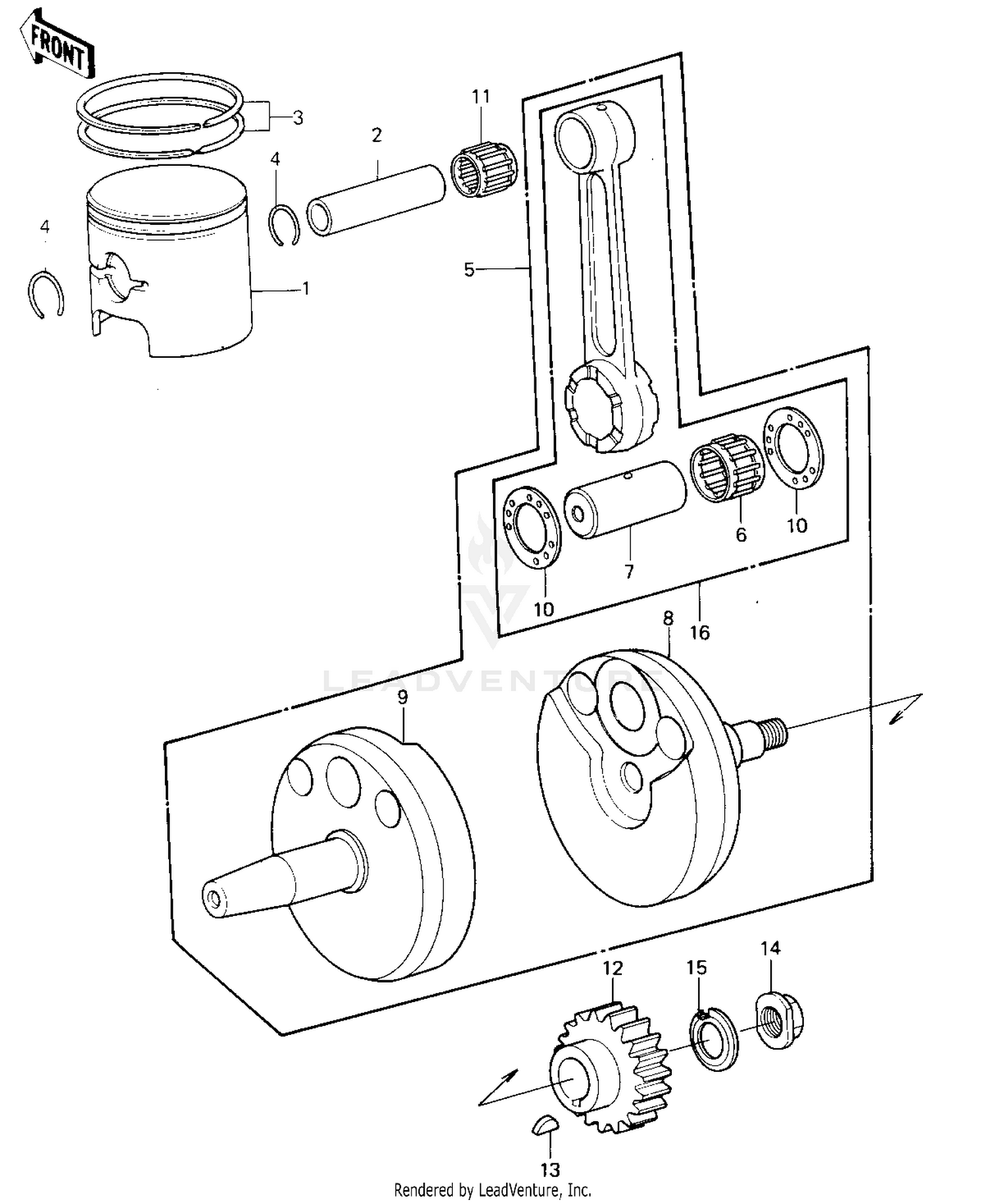

CRANKSHAFT/PISTON ('81KDX250-B1)
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13001-1039 | PISTON,STD Price: $129.65 |
| 2 | 13002-017 | PIN-PISTON Price: $29.98 |
| 3 | 13008-5026 | RING SET,STD Price: $81.44 |
| 4 | 92036-015 | CIRCLIP-PISTON PIN Price: $4.95 |
| 5 | 13031-1049 | CRANKSHAFT ASSY Price: $365.52 |
| 6 | 13034-049 | BEARING,BIG END NEEDL Price: $38.29 |
| 7 | 13035-034 | PIN,CRANK Price: $85.12 |
| 8 | 13037-1069 | CRANKSHAFT,R.H Price: $229.10 |
| 9 | 13037-1097 | CRANKSHAFT Price: $411.63 |
| 10 | 92026-1500 | SPACER,24X42X1.6 This part replaces 92026-1241. Price: $9.48 |
| 11 | 13033-1010 | BEARING-SMALL END Price: $25.15 |
| 12 | 13097-1028 | GEAR,PRIMARY Price: $108.62 |
| 13 | 510A5100 | KEY-WOODRUFF Price: $2.70 |
| 14 | 92015-069 | NUT,CRANKSHAFT Price: $35.67 |
| 15 | 92024-061 | WASHER,LOCK Price: $6.03 |
