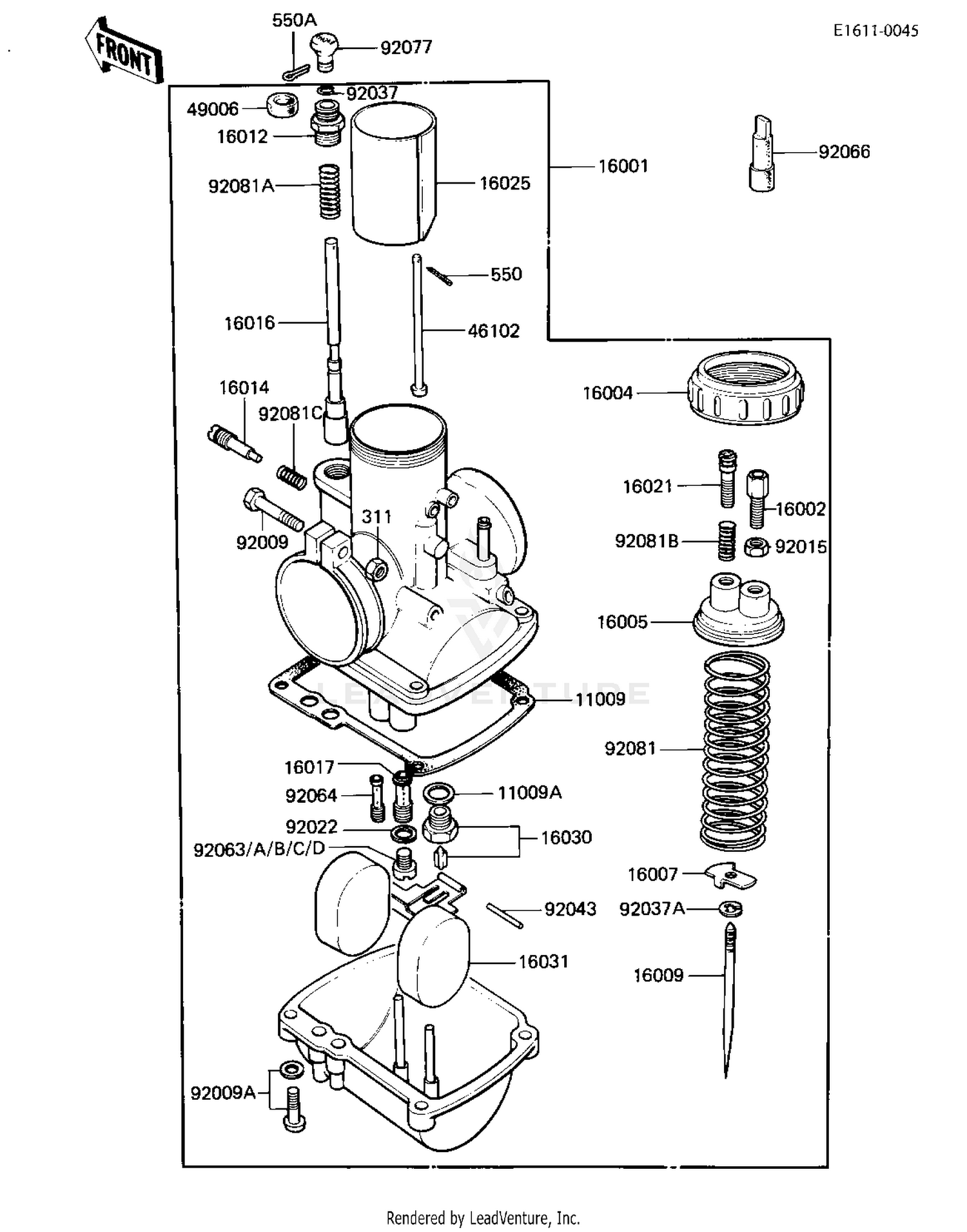

| Ref | Part Number | Description |
|---|
| 311 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 550 |
550AA1210 |
PIN-COTTER,1.2X10 This part replaces 550D1210. Price: $2.65 |
| 11009 |
16019-021 |
GASKET,FLOAT CHAMBER Price: $20.79 |
| 11009A |
16029-002 |
WASHER VALVE SEAT Price: $4.46 |
| 16001 |
16001-251 |
CARBURETOR ASSY Price: $294.27 |
| 16002 |
16002-017 |
ADJUSTER,CABLE Price: $13.38 |
| 16004 |
16004-010 |
CAP MIXING CHAMBER Price: $20.59 |
| 16005 |
16005-005 |
TOP MIXING CHAMBER Price: $20.79 |
| 16007 |
16007-020 |
SPRING SEAT,THRTL TL Price: $10.97 |
| 16009 |
16009-059 |
JET NEEDLE 4EJ7 Price: $37.51 |
| 16012 |
16012-010 |
CAP STARTER PLUNGER Price: $14.79 |
| 16014 |
16014-002 |
SCREW PILOT AIR ADJST Price: $18.22 |
| 16016 |
16016-012 |
PLUNGER,STARTER Price: $40.35 |
| 16017 |
16017-089 |
NEEDLE JET 0-6 Price: $45.79 |
| 16021 |
16021-002 |
SCREW,THROTTLE STOP Price: $18.22 |
| 16025 |
16025-057 |
VALVE,THROTTLE CA2.0 Price: $91.39 |
| 16030 |
16030-009 |
FLOAT VALVE ASSY Price: $53.06 |
| 16031 |
16031-015 |
FLOAT Price: $56.16 |
| 46102 |
16024-012 |
ROD,THROTTLE VLV STP Price: $10.79 |
| 49006 |
16036-012 |
CAP,STARTER PLUNGER Price: $11.46 |
| 92009 |
16010-004 |
SCREW CLAMP Price: $5.57 |
| 92009A |
223AA0418 |
SCREW-PAN-WS-CROS This part replaces 16033-012. Price: $1.88 |
| 92015 |
16003-004 |
NUT CABLE ADJUST LOCK Price: $7.34 |
| 92022 |
16034-001 |
WASHER MAIN JET Price: $4.31 |
| 92037 |
92037-1077 |
CIRCLIP Price: $5.73 |
| 92037A |
16008-010 |
CIRCLIP Price: $9.21 |
| 92043 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
| 92063 |
92063-1323 |
JET-MAIN,#A85R This part replaces 92063-093. Price: $16.92 |
| 92063A |
92063-1032 |
MAIN JET,#77.5R Price: $16.92 |
| 92063B |
92063-109 |
MAIN JET NO 75R Price: $16.50 |
| 92063C |
92063-1030 |
MAIN JET, #A80 Price: $16.92 |
| 92063D |
92063-1322 |
JET-MAIN,#A82,5R This part replaces 92063-124. Price: $16.92 |
| 92064 |
92064-020 |
PILOT JET #17.5 ISO Price: $19.96 |
| 92066 |
16147-001 |
PLUG,CARBURETOR CAP Price: $5.17 |
| 92077 |
92077-022 |
KNOB,CARBURETOR Price: $10.64 |
| 92081 |
16006-013 |
SPRING THROTTLE VALVE Price: $15.02 |
| 92081A |
16013-010 |
SPRING,STARTER PLUNGR Price: $5.68 |
| 92081B |
16022-005 |
SPRING THR STOP SCREW Price: $8.68 |
| 92081C |
16022-007 |
SPRING,PILOT AIR SCREW Price: $8.13 |
