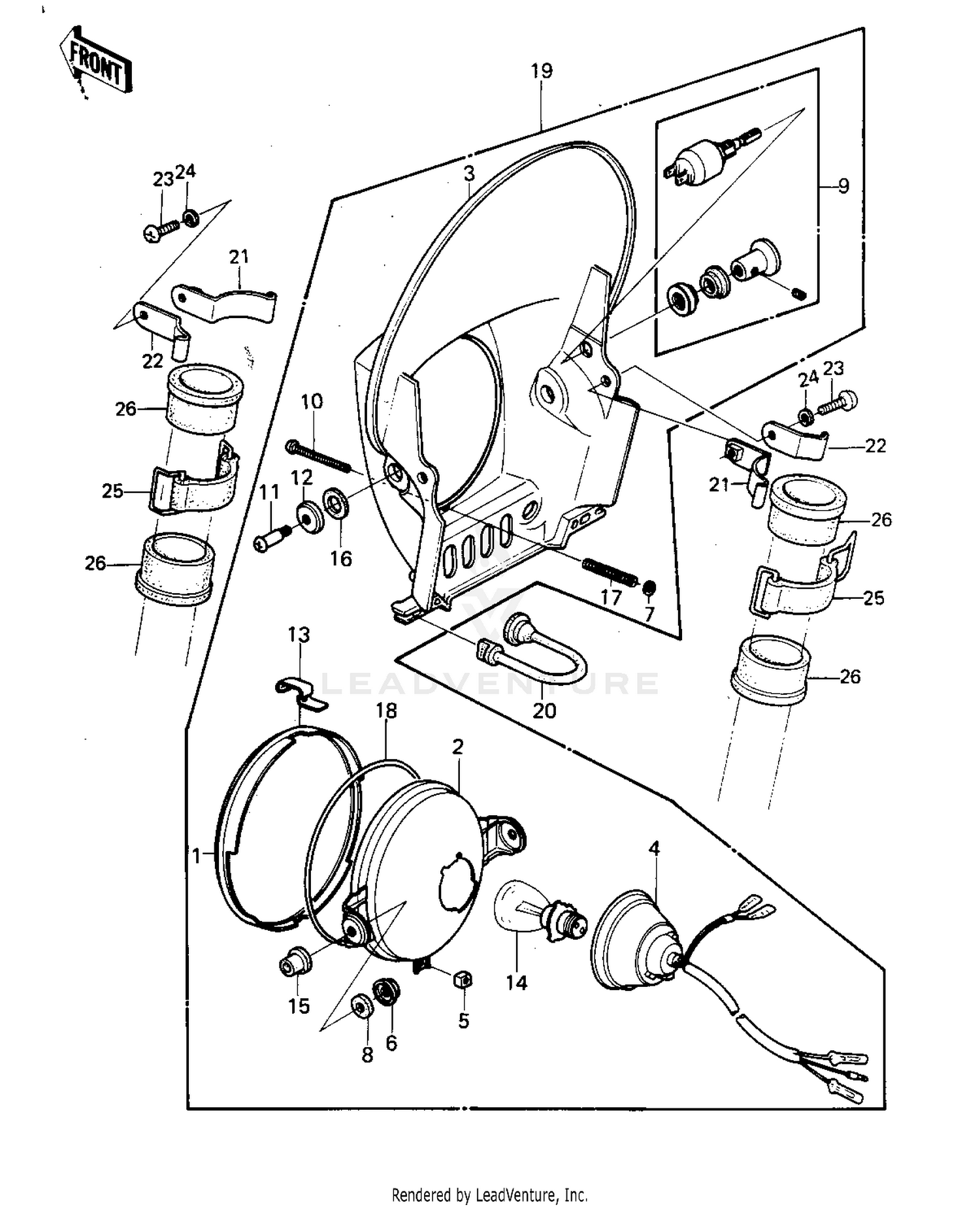

| Ref | Part Number | Description |
|---|
| 1 |
14025-4002 |
COVER,HEAD LAMP Price: $28.58 |
| 2 |
23004-4001 |
LAMP,HEAD Price: $51.10 |
| 3 |
23005-5002-7F |
BODY-COMP-HEAD LAMP,L Price: $175.22 |
| 4 |
23008-4001 |
SOCKET,HEAD LAMP Price: $93.40 |
| 5 |
23020-018 |
NUT,4MM,FOCUS ADJUST Price: $4.65 |
| 6 |
23020-023 |
NUT,HEAD LAMP RIM FIT Price: $5.45 |
| 7 |
23021-004 |
WASHER Price: $2.91 |
| 8 |
23021-012 |
WASHER-PLAIN,5MM Price: $5.43 |
| 9 |
27004-4001 |
SWITCH,HEAD LAMP Price: $89.23 |
| 10 |
92009-4002 |
SCREW,ADJUSTING,4X43 Price: $6.63 |
| 11 |
92009-4003 |
SCREW,HEAD LAMP Price: $2.74 |
| 12 |
92022-4005 |
WASHER,HEAD LAMP Price: $6.60 |
| 13 |
92037-4001 |
CLAMP,HEAD LAMP Price: $8.92 |
| 14 |
92069-4001 |
BULB,6V 35/25W Price: $16.50 |
| 15 |
92075-4009 |
DAMPER,HEAD LAMP Price: $4.05 |
| 16 |
92075-4010 |
DAMPER,HEAD LAMP Price: $4.58 |
| 17 |
92081-4003 |
SPRING,FOCUS ADJUSTNG Price: $2.74 |
| 18 |
92093-4001 |
SEAL,HEAD LAMP Price: $5.78 |
| 19 |
23001-4001 |
HEAD LAMP ASSY Price: $216.11 |
| 20 |
92072-077 |
BAND,HEAD LAMP Price: $10.25 |
| 21 |
11034-1718 |
BRACKET,HEAD LAMP BOD Price: $3.78 |
| 22 |
11034-1719 |
BRACKET,HEAD LAMP BOD Price: $3.77 |
| 23 |
220AA0616 |
SCREW-PAN-CROS,6X16 This part replaces 220B0616. Price: $3.04 |
| 24 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 25 |
92072-076 |
BAND,FUEL TANK Price: $26.49 |
