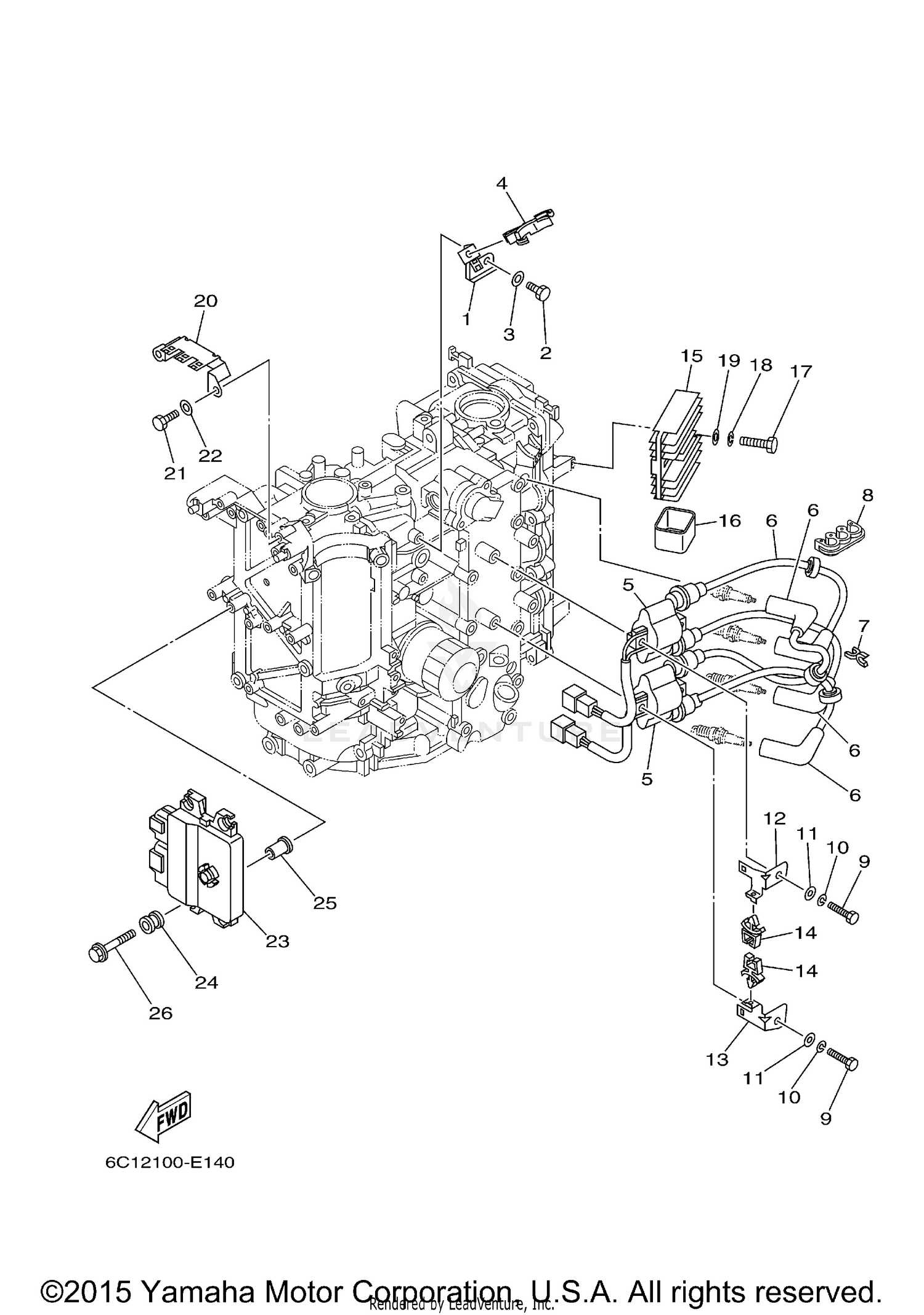

| Ref | Part Number | Description |
|---|
| 1 |
6C5-85525-00-00 |
PLATE Price: $5.55 |
| 2 |
97D95-06014-00 |
BOLT, HEXAGON DEEP This part replaces 97095-06014-00. Price: $1.55 |
| 3 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 4 |
90464-18246-00 |
CLAMP Price: $2.44 |
| 5 |
63P-82310-01-00 |
IGNITION COIL ASSY Price: $176.15 |
| 6 |
6C5-82340-01-00 |
HIGH TENSION CORD ASSY 1 Price: $49.35 |
| 7 |
90464-07M41-00 |
CLAMP Price: $5.50 |
| 8 |
90464-07M05-00 |
CLAMP Price: $3.55 |
| 9 |
97013-06030-00 |
BOLT This part replaces 97095-06030-00. Price: $2.45 |
| 10 |
92995-06100-00 |
WASHER, SPRING Price: $3.45 |
| 11 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 12 |
6C5-82316-01-00 |
BRACKET, IGNITION COIL Price: $13.35 |
| 13 |
6C5-82316-11-00 |
BRACKET, IGNITION COIL Price: $13.35 |
| 14 |
90464-06001-00 |
CLAMP Price: $3.20 |
| 15 |
6D3-81960-01-00 |
RECTIFIER & REGULA This part replaces 6D3-81960-00-00. Price: $186.99 |
| 16 |
6C5-81961-00-00 |
COVER Price: $4.20 |
| 17 |
90101-06M27-00 |
BOLT This part replaces 97095-06025-00. Price: $3.35 |
| 18 |
92995-06100-00 |
WASHER, SPRING Price: $3.45 |
| 19 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 20 |
6C5-82171-00-00 |
STAY, FUSE BOX Price: $68.05 |
| 21 |
97D95-06014-00 |
BOLT, HEXAGON DEEP This part replaces 97095-06014-00. Price: $1.55 |
| 22 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 24 |
6C5-82317-01-00 |
DAMPER, IGNITION COIL This part replaces 6C5-82317-00-00. Price: $4.15 |
| 25 |
90387-06119-00 |
COLLAR Price: $4.80 |
