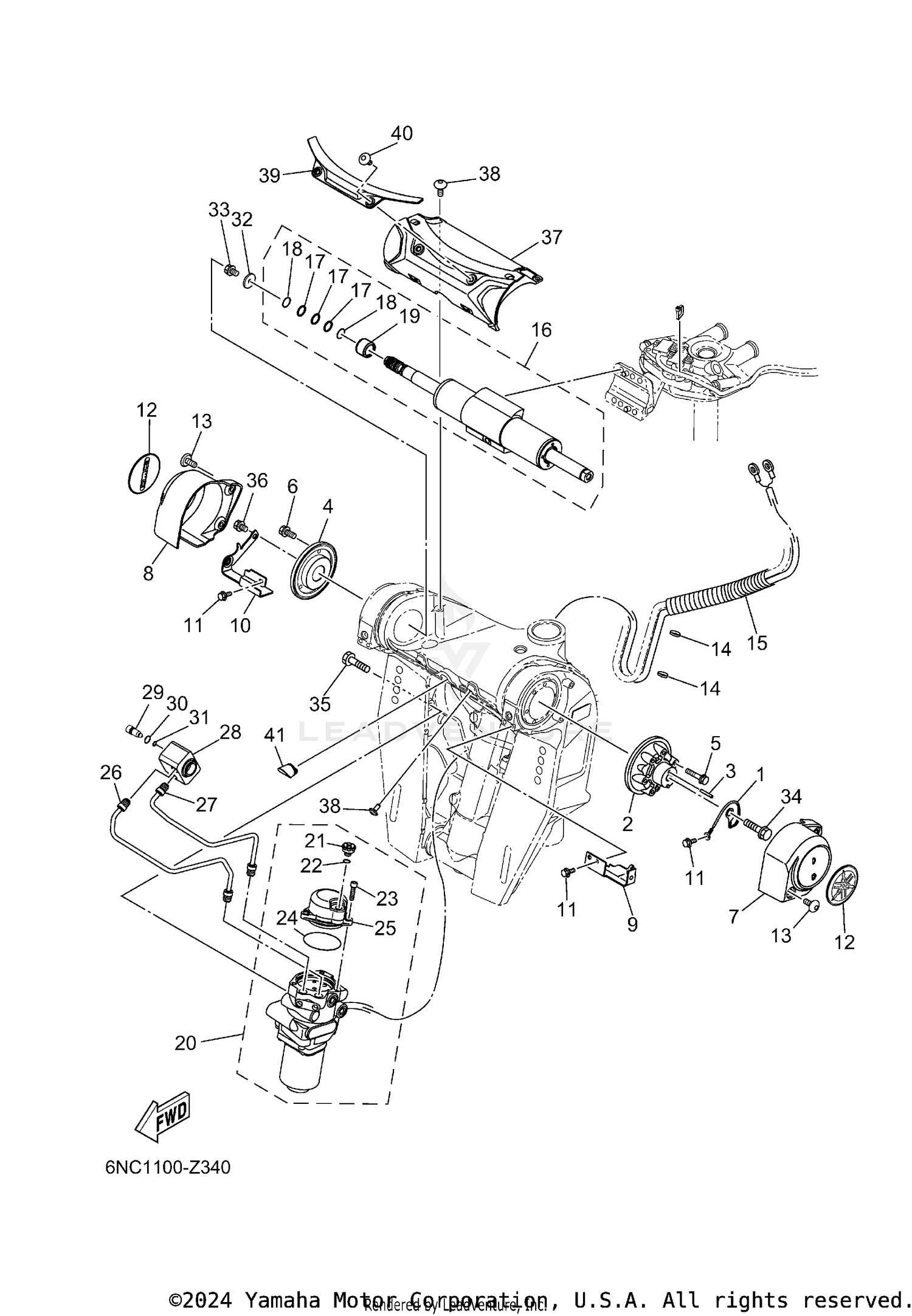

| Ref | Part Number | Description |
|---|
| 1 |
6LH-82147-00-00 |
WIRE, LEAD 5 Price: $17.95 |
| 2 |
6LH-43341-00-00 |
COVER, SWIVEL SODE 1 Price: $144.90 |
| 3 |
91690-40025-00 |
PIN, SPRG Price: $0.65 |
| 4 |
6LH-43342-00-00 |
COVER, SWIVEL SODE 2 Price: $144.90 |
| 5 |
90119-06323-00 |
BOLT, WITH WASHER Price: $8.49 |
| 6 |
97E75-06520-00 |
BOLT, HEXAGON W/W Price: $1.10 |
| 7 |
6LP-43381-00-8D |
COVER, 2 Price: $160.00 |
| 8 |
6NC-43382-00-8D |
COVER, 3 Price: Call Us |
| 9 |
6LP-44526-00-00 |
PLATE Price: $26.80 |
| 10 |
6NC-44536-00-00 |
PLATE 2 Price: $42.60 |
| 11 |
97E95-06512-00 |
BOLT, HEXAGON W/W Price: $2.05 |
| 12 |
6DA-42697-00-00 |
TUNING FORK MARK Price: $28.15 |
| 13 |
90111-06144-00 |
BOLT,HEX. SOCKET BUTTON Price: $4.15 |
| 14 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 15 |
6LH-24864-00-00 |
TUBE Price: $4.00 |
| 16 |
6NC-61501-00-00 |
STEERING CYLINDER ASSY Price: $1,405.75 |
| 17 |
93210-15566-00 |
O-RING This part replaces 93210-15414-00. Price: $8.49 |
| 20 |
6LH-81900-09-00 |
OIL FEED PUMP ASSY Price: $2,154.90 |
| 21 |
6CJ-43829-20-00 |
PLUG, RESERVOIR Price: $18.65 |
| 22 |
6CJ-43861-10-00 |
O-RING Price: $3.15 |
| 23 |
91380-06016-00 |
BOLT Price: $7.49 |
| 24 |
93210-57M00-00 |
O-RING Price: $7.05 |
| 26 |
6LH-2246D-00-00 |
PIPE ASSY 1 Price: $105.95 |
| 27 |
6LH-2246E-00-00 |
PIPE ASSY 2 Price: $99.15 |
| 28 |
6LH-22954-00-00 |
ADAPTER Price: $333.60 |
| 29 |
6LH-22447-00-00 |
NEEDLE, VALVE Price: $54.55 |
| 30 |
93210-11453-00 |
O-RING This part replaces 93210-10107-00. Price: $8.49 |
| 31 |
93210-03494-00 |
O-RING Price: $4.65 |
| 32 |
6LH-43627-00-00 |
STOPPER Price: $4.30 |
| 33 |
97D95-06008-00 |
BOLT, HEXAGON DEEP Price: $0.70 |
| 34 |
90119-10058-00 |
BOLT, WITH WASHER Price: $6.60 |
| 35 |
90119-10058-00 |
BOLT, WITH WASHER Price: $6.60 |
| 36 |
97E95-06512-00 |
BOLT, HEXAGON W/W Price: $2.05 |
| 37 |
6NC-43318-00-8D |
COVER Price: Call Us |
| 38 |
90111-06144-00 |
BOLT,HEX. SOCKET BUTTON Price: $4.15 |
| 39 |
6NC-43319-00-00 |
PLATE Price: $161.35 |
| 40 |
90111-06144-00 |
BOLT,HEX. SOCKET BUTTON Price: $4.15 |
