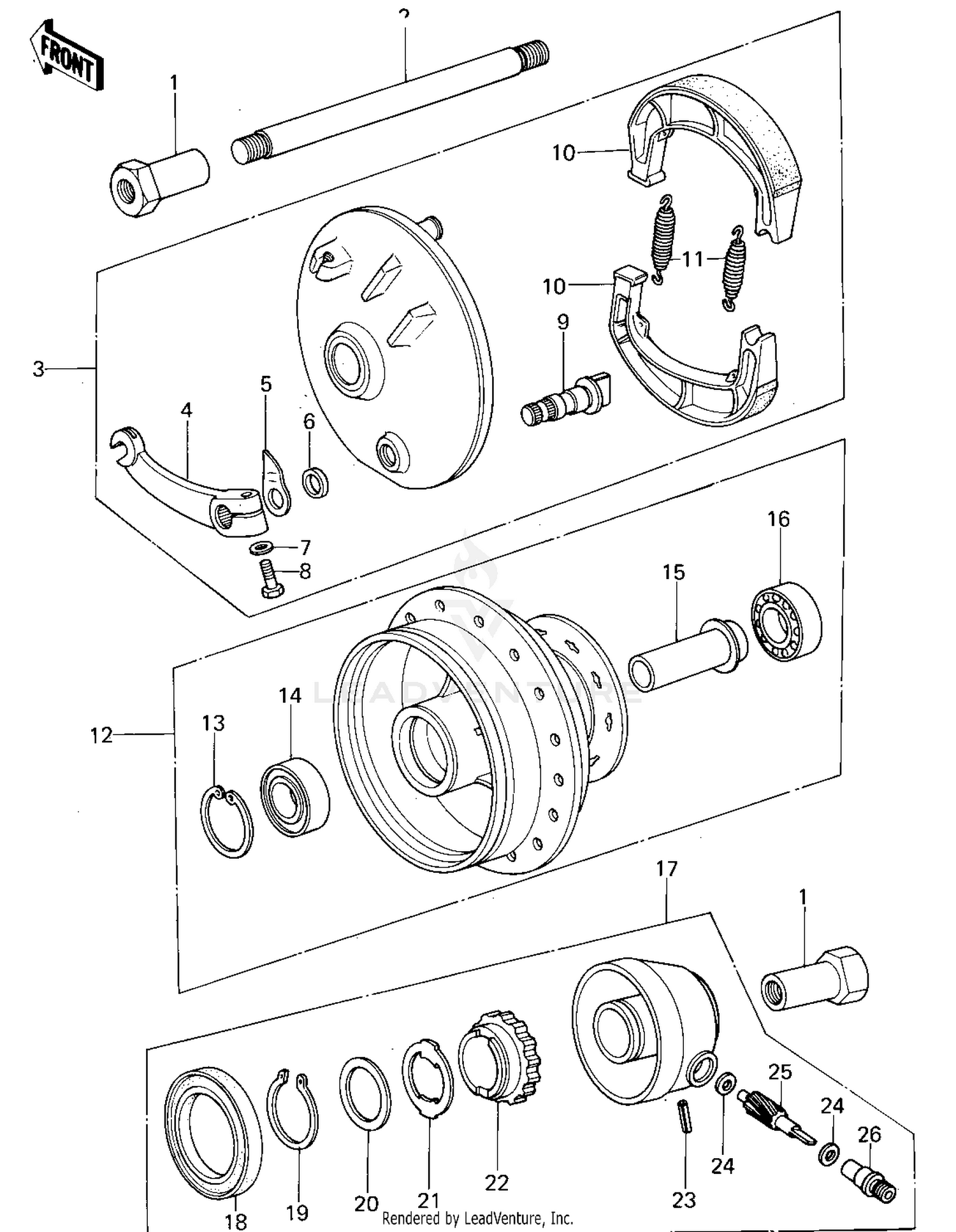

| Ref | Part Number | Description |
|---|
| 1 |
41069-031 |
COLLAR,FRONT AXLE Price: $31.92 |
| 4 |
41053-028 |
LEVER,BRAKE CAM Price: $31.54 |
| 5 |
41085-017 |
INDICATOR,FR BRK SHOE Price: $12.70 |
| 6 |
41051-001 |
SEAL,BRAKE CAM Price: $4.26 |
| 7 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 8 |
112BA0625 |
BOLT-UPSET,6X25 This part replaces 112G0625. Price: $3.72 |
| 9 |
42026-027 |
CAM SHAFT,BRAKE Price: $13.45 |
| 10 |
41048-1068 |
SHOE-BRAKE Price: $27.31 |
| 11 |
42020-004 |
SPRING-BRAKE SHOE Price: $8.51 |
| 13 |
92033-1041 |
RING-SNAP,42MM Price: $6.16 |
| 14 |
92045-1355 |
BEARING-BALL,6302LU/3 This part replaces 92045-033. Price: $23.10 |
| 16 |
601B6302 |
BEARING BALL #6302 Price: $9.05 |
| 17 |
41078-1073 |
CASE-ASSY-METER GEAR This part replaces 41078-011. Price: $117.35 |
| 18 |
654A506509 |
OIL SEAL,#50659 Price: $17.29 |
| 19 |
480J2400 |
CIRCLIP-TYPE-C,24MM Price: $6.32 |
| 20 |
41065-005 |
WASHER,THRUST Price: $4.15 |
| 21 |
41064-015 |
RECEIVER,SPEEDOMETER Price: $8.58 |
| 23 |
41082-001 |
PIN,SPRING Price: $3.92 |
| 24 |
41063-001 |
WASHER,5.1X9X0.4 Price: $4.69 |
