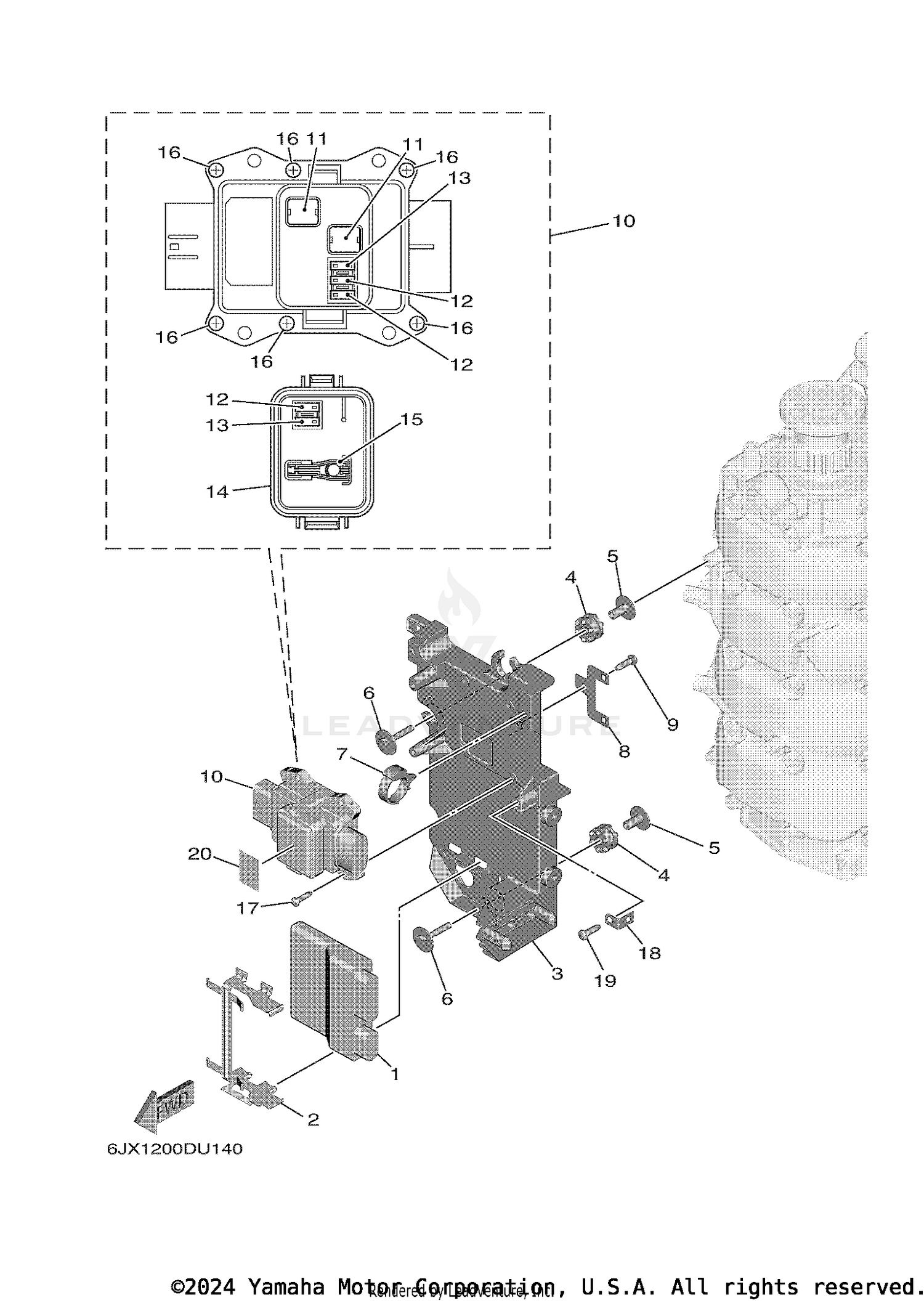

ELECTRICAL 1
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6HK-8591A-02-00 | ENGINE CONTROL UNIT ASSY This part replaces 6HK-8591A-00-00. Price: $1,211.00 |
| 2 | 6FP-8253C-00-00 | SPRING, PLATE LOCK Price: $33.85 |
| 3 | 6FP-81948-10-00 | BRACKET Price: $49.80 |
| 4 | 60V-85564-00-00 | GROMMET Price: $11.40 |
| 5 | 90387-06176-00 | COLLAR Price: $5.95 |
| 6 | 68F-85119-00-00 | BOLT Price: $5.95 |
| 7 | 90464-12183-00 | CLAMP Price: $3.50 |
| 8 | 6C5-8257V-00-00 | PLATE, CONNECTOR Price: $4.15 |
| 9 | 97780-60520-00 | SCREW, TAPPING This part replaces 97780-60620-00. Price: $4.49 |
| 10 | 6FP-82170-02-00 | FUSE BOX ASSY This part replaces 6FP-82170-01-00. Price: $404.85 |
| 12 | 6CB-82151-20-00 | FUSE (20A) Price: $4.20 |
| 13 | 6CB-82151-30-00 | FUSE (30A) Price: $3.35 |
| 14 | 6FP-85544-00-00 | COVER Price: $21.95 |
| 15 | 6CB-2812A-00-00 | PULLER, FUSE Price: $4.15 |
| 16 | 6P2-82113-00-00 | SCREW (M3) Price: $3.65 |
| 17 | 97780-50620-00 | SCREW, TAPPING Price: $3.20 |
| 18 | 68V-85548-01-00 | HOLDER Price: $3.05 |
| 19 | 97780-60520-00 | SCREW, TAPPING This part replaces 97780-60620-00. Price: $4.49 |
