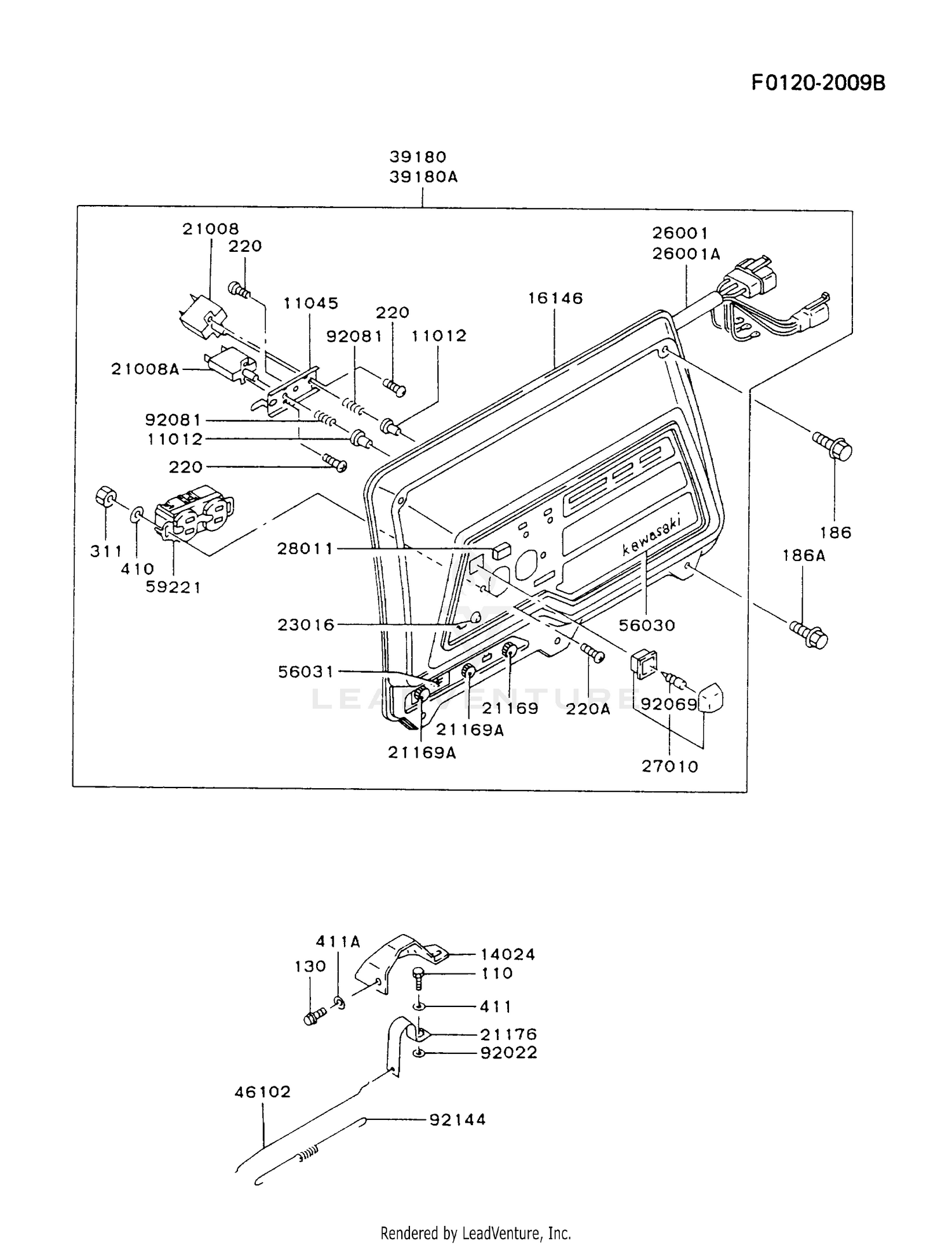

CONTROL-PANEL

CONTROL-PANEL

Parts (31)

RefPart NumberDescription
110 110R0508 BOLT,5X8 Price: $0.48
130 130AA0608 BOLT-FLANGED,6X8 This part replaces 130B0608. Price: $0.68
186 186AB0510 BOLT-UPSET-WP,5X10 This part replaces 186C0510. Price: $0.29
186A 186AB0612 BOLT-UPSET-WP This part replaces 186C0612. Price: $0.97
220 220AA0308 SCREW-PAN-CROS,3X8 This part replaces 220B0308. Price: $0.59
220A 220AB0410 SCREW-PAN-CROS This part replaces 220C0410. Price: $0.68
311 311AA0400 NUT-HEX,4MM This part replaces 311B0400. Price: $0.53
410 410AA0400 WASHER-PLAIN-SMALL,4MM This part replaces 410B0400. Price: $0.49
411 410AA0500 WASHER-PLAIN-SMALL This part replaces 411B0500. Price: $0.47
11012 11012-2201 CAP Price: $0.40
11045 11045-2039 BRACKET Price: $3.00
14024 14024-2052 COVER Price: $3.15
16146 16146-2116-ZT COVER-ASSY Price: $61.39
21008 21008-2112 BREAKER,10A Price: $42.10
21008A 21008-2134 BREAKER,6.1A Price: $42.10
21169 395100-8822-01 TERMINAL (+) This part replaces 21169-2052. Price: $15.20
21169A 395100-8826-01 TERMINAL (-) This part replaces 21169-2053. Price: $15.00
21176 21176-2071 SENSOR Price: $12.91
23016 23016-2063 LAMP-ASSY This part replaces 23016-2055. Price: $15.51
26001A 26001-2352 HARNESS Price: Call Us
27010 27010-2208 SWITCH This part replaces 27010-2129. Price: $33.45
28011 28011-2057 METER Price: $47.82
39180A 39180-2497 PANEL-ASSY-CONTROL Price: Call Us
46102 46102-2060 ROD Price: $1.66
56030 56030-2226 LABEL Price: $15.77
56031 56031-2271 LABEL-MANUAL Price: $0.96
59221 59221-2094 CONNECTOR-CORD Price: $26.92
92022 92022-2228 WASHER Price: $0.54
92069 92069-2051 BULB Price: $8.23
92081 92081-2329 SPRING Price: $0.29
92144 92144-2001 SPRING,ROD Price: $2.50
