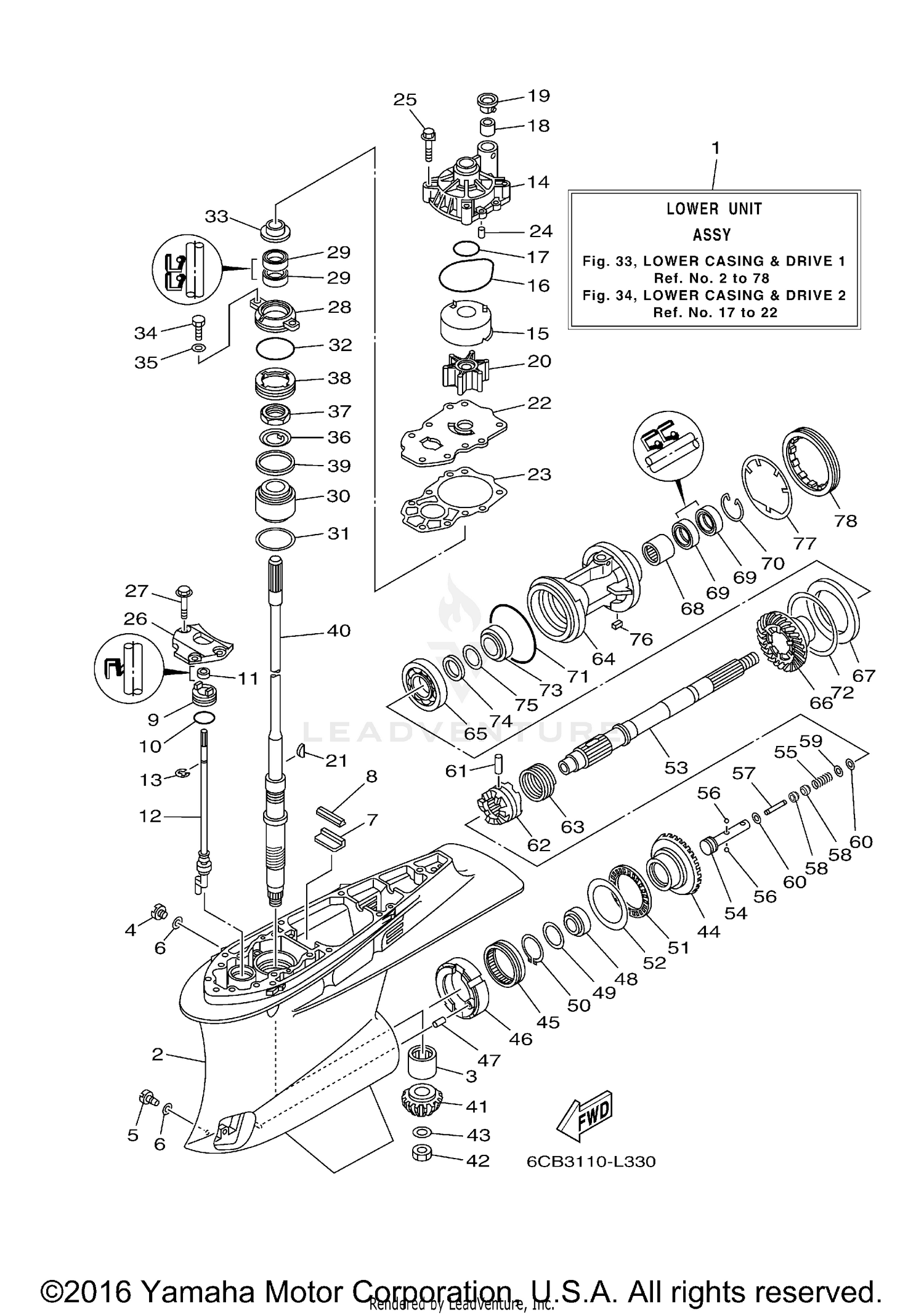

| Ref | Part Number | Description |
|---|
| 1 |
6CB-45300-04-NA |
LOWER UNIT ASSY This part replaces 6CB-45300-01-NA. Price: $5,208.85 |
| 2 |
6CB-45311-01-NA |
CASING, LOWER Price: $1,531.25 |
| 3 |
93311-928U5-00 |
BEARING Price: $144.99 |
| 4 |
90340-08002-00 |
PLUG, STRAIGHT SCREW Price: $12.75 |
| 5 |
688-45341-10-00 |
PLUG, DRAIN Price: $12.70 |
| 6 |
90430-08003-00 |
GASKET This part replaces 90430-08020-00. Price: $1.55 |
| 7 |
663-45376-00-00 |
GUIDE, SEAL DAMPER Price: $14.90 |
| 8 |
688-45375-00-00 |
DAMPER, SEAL Price: $13.75 |
| 9 |
65N-45321-00-00 |
PLATE Price: $12.75 |
| 10 |
93210-33M85-00 |
O-RING This part replaces 93210-33M49-00. Price: $5.55 |
| 11 |
93106-09014-00 |
OIL SEAL Price: $8.40 |
| 12 |
6CB-44150-00-00 |
SHIFT CAM ASSY Price: $203.70 |
| 13 |
99001-08600-00 |
CIRCLIP Price: $9.49 |
| 14 |
61A-44311-01-00 |
HOUSING, WATER PUMP Price: $33.70 |
| 15 |
61A-44322-02-00 |
INSERT, CARTRIDGE Price: $50.50 |
| 16 |
93210-86M38-00 |
O-RING Price: $13.85 |
| 17 |
93210-37M67-00 |
O-RING This part replaces 93210-37160-00. Price: $3.80 |
| 19 |
6E5-44312-00-00 |
COVER, WATER PUMP HOUSING Price: $3.50 |
| 20 |
6E5-44352-01-00 |
IMPELLER Price: $33.65 |
| 21 |
90280-04002-00 |
KEY, WOODRUFF Price: $14.65 |
| 22 |
6CB-44323-00-00 |
OUTER PLATE, CARTRIDGE Price: $23.70 |
| 23 |
6CB-44315-00-00 |
GASKET, WATER PUMP Price: $13.00 |
| 24 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 25 |
90119-08191-00 |
BOLT, WITH WASHER This part replaces 90119-08M14-00. Price: $4.80 |
| 26 |
6CB-44312-00-00 |
COVER, WATER PUMP HOUSING Price: $12.75 |
| 27 |
90119-08180-00 |
BOLT, WITH WASHER This part replaces 90119-08M32-00. Price: $3.80 |
| 28 |
6CB-45335-00-9S |
HOUSING, OIL SEAL Price: $70.20 |
| 29 |
93101-28M16-00 |
OIL SEAL Price: $11.40 |
| 30 |
93332-000A3-00 |
BEARING Price: $158.45 |
| 32 |
93210-58677-00 |
O-RING This part replaces 93210-58144-00. Price: $8.49 |
| 33 |
6E5-45344-00-00 |
COVER, OIL SEAL Price: $19.35 |
| 34 |
97095-08020-00 |
BOLT Price: $4.00 |
| 35 |
92990-08600-00 |
WASHER, PLATE This part replaces 92995-08600-00. Price: $2.70 |
| 36 |
90214-30003-00 |
WASHER, CLAW Price: $6.25 |
| 37 |
90170-30M18-00 |
NUT Price: $16.25 |
| 38 |
6CB-45244-00-00 |
NUT Price: $35.65 |
| 39 |
6CB-45539-00-00 |
SPACER 2 Price: $38.45 |
| 40 |
6CB-45501-01-00 |
DRIVE SHAFT COMP. Price: $754.45 |
| 41 |
6CB-45551-00-00 |
PINION (12T) Price: $290.20 |
| 42 |
90170-16M19-00 |
NUT Price: $11.99 |
| 43 |
90201-16M00-00 |
WASHER, PLATE Price: $5.95 |
| 44 |
6CB-45561-00-00 |
GEAR 1 (21T) Price: $487.90 |
| 45 |
93311-85894-00 |
BEARING Price: $88.00 |
| 46 |
6CB-45824-00-00 |
ADAPTER Price: $67.70 |
| 47 |
93608-16M16-00 |
PIN, DOWEL Price: $2.85 |
| 48 |
93332-000A4-00 |
BEARING Price: $42.00 |
| 49 |
90201-41008-00 |
WASHER, PLATE Price: $23.95 |
| 50 |
99009-47500-00 |
CIRCLIP Price: $10.49 |
| 51 |
93340-67011-00 |
BEARING Price: $92.85 |
| 53 |
6CB-45611-00-00 |
SHAFT, PROPELLER Price: $340.65 |
| 54 |
6CB-45634-00-00 |
SLIDE, SHIFT Price: $110.25 |
| 55 |
90501-10M77-00 |
SPRING, COMPRESSION Price: $7.90 |
| 56 |
93501-04011-00 |
BALL Price: $9.49 |
| 57 |
6H1-45668-00-00 |
SHAFT, FREE 1 Price: $14.90 |
| 58 |
61A-45635-00-00 |
PLUNGER, SHIFT Price: $14.90 |
| 59 |
90201-02M00-00 |
WASHER, PLATE Price: $6.30 |
| 60 |
90183-02M03-00 |
NUT, SPRING Price: $0.50 |
| 61 |
90250-08M07-00 |
PIN, STRAIGHT Price: $9.10 |
| 62 |
6CB-45631-00-00 |
CLUTCH, DOG Price: $383.25 |
| 63 |
6E5-45633-01-00 |
RING, CROSS PIN Price: $16.60 |
| 64 |
6CB-45332-00-CA |
HOUSING, BEARING Price: $183.50 |
| 65 |
93306-209U0-00 |
BEARING Price: $76.99 |
| 66 |
6CB-45571-00-00 |
GEAR 2 (21T) Price: $336.70 |
| 67 |
6CB-45576-00-00 |
WASHER, THRUST 2 Price: $103.35 |
| 68 |
93315-43061-00 |
BEARING Price: $41.99 |
| 69 |
93101-30M17-00 |
OIL SEAL Price: $14.15 |
| 70 |
93450-45M02-00 |
CIRCLIP Price: $7.40 |
| 71 |
93211-02001-00 |
O-RING Price: $15.10 |
| 73 |
93332-000A5-00 |
BEARING Price: $67.15 |
| 74 |
90201-32008-00 |
WASHER, PLATE Price: $15.40 |
| 76 |
90282-05008-00 |
KEY, STRAIGHT Price: $5.55 |
| 77 |
6CB-45383-00-00 |
WASHER, CLAW Price: $24.45 |
