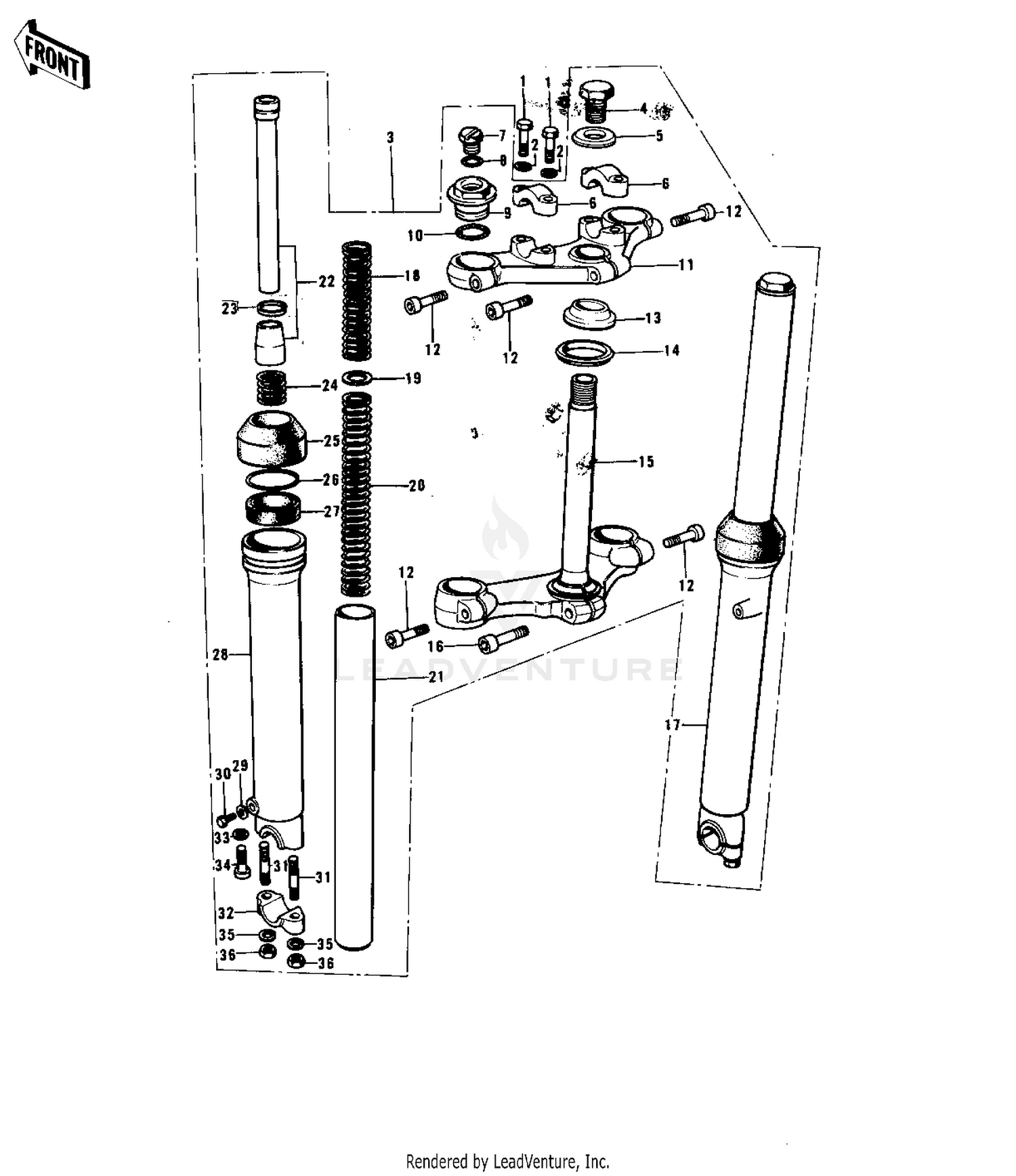

| Ref | Part Number | Description |
|---|
| 1 |
92001-1405 |
BOLT 8X38 Price: $16.50 |
| 2 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 3 |
44001-142 |
FORK-FRONT Price: $745.29 |
| 4 |
44041-077 |
BOLT,STEERING STEM Price: $14.41 |
| 5 |
44043-056 |
WASHER,STEERING STEM Price: $12.51 |
| 6 |
46012-012 |
HOLDER,HANDLEBAR Price: $30.45 |
| 7 |
44041-069 |
BOLT,HEX HEAD,12MM Price: $4.88 |
| 8 |
44045-048 |
O RING Price: $2.73 |
| 9 |
44032-011 |
BOLT,FORK TOP Price: $29.56 |
| 10 |
44046-021 |
O RING,FORK TOP Price: $2.32 |
| 11 |
44039-066 |
HEAD,STEERING STEM Price: $149.69 |
| 12 |
44041-070 |
BOLT,HEX HEAD,8X34 Price: $6.13 |
| 13 |
92047-010 |
CONE STERNG BERG LOW Price: $10.51 |
| 14 |
44010-027 |
SEAL,STEERING STEM Price: $12.32 |
| 15 |
44037-083 |
STEM,STEERING Price: $147.40 |
| 16 |
44041-073 |
BOLT,SPECIAL 10X42 Price: $9.83 |
| 17 |
44006-1045 |
TUBE,RH,FORK OUTER Price: $186.44 |
| 18 |
44026-058 |
SPRING,FORK,SHORT Price: $7.37 |
| 19 |
44029-021 |
SEAT,FORK SPRING Price: $1.73 |
| 20 |
44026-057 |
SPRING,FORK,LONG Price: $23.47 |
| 21 |
44013-047 |
TUBE,FORK INNER Price: $113.55 |
| 22 |
44022-023 |
CYLINDER-FORK Price: $54.18 |
| 23 |
44025-002 |
RING Price: $5.93 |
| 24 |
44026-054 |
SPRING,FORK CYLINDER Price: $5.14 |
| 25 |
44010-026 |
DUST SHIELD,FORK Price: $14.82 |
| 26 |
44044-020 |
RING-SNAP,45MM Price: $13.58 |
| 27 |
44009-018 |
OIL SEAL,FORK Price: $33.77 |
| 28 |
44005-1045 |
TUBE,LH,FORK OUTER Price: $186.44 |
| 29 |
112AA0608 |
BOLT-UPSET This part replaces 112B0608. Price: $0.68 |
| 30 |
44045-052 |
GASKET,DRAIN PLUG This part replaces 44045-047. Price: $6.10 |
| 31 |
92004-1009 |
STUD,8X35 Price: $6.38 |
| 32 |
44063-009 |
HOLDER,FRONT AXLE Price: $38.37 |
| 33 |
44045-051 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 34 |
44041-078 |
BOLT,FORK CYLINDER Price: $9.89 |
| 35 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
