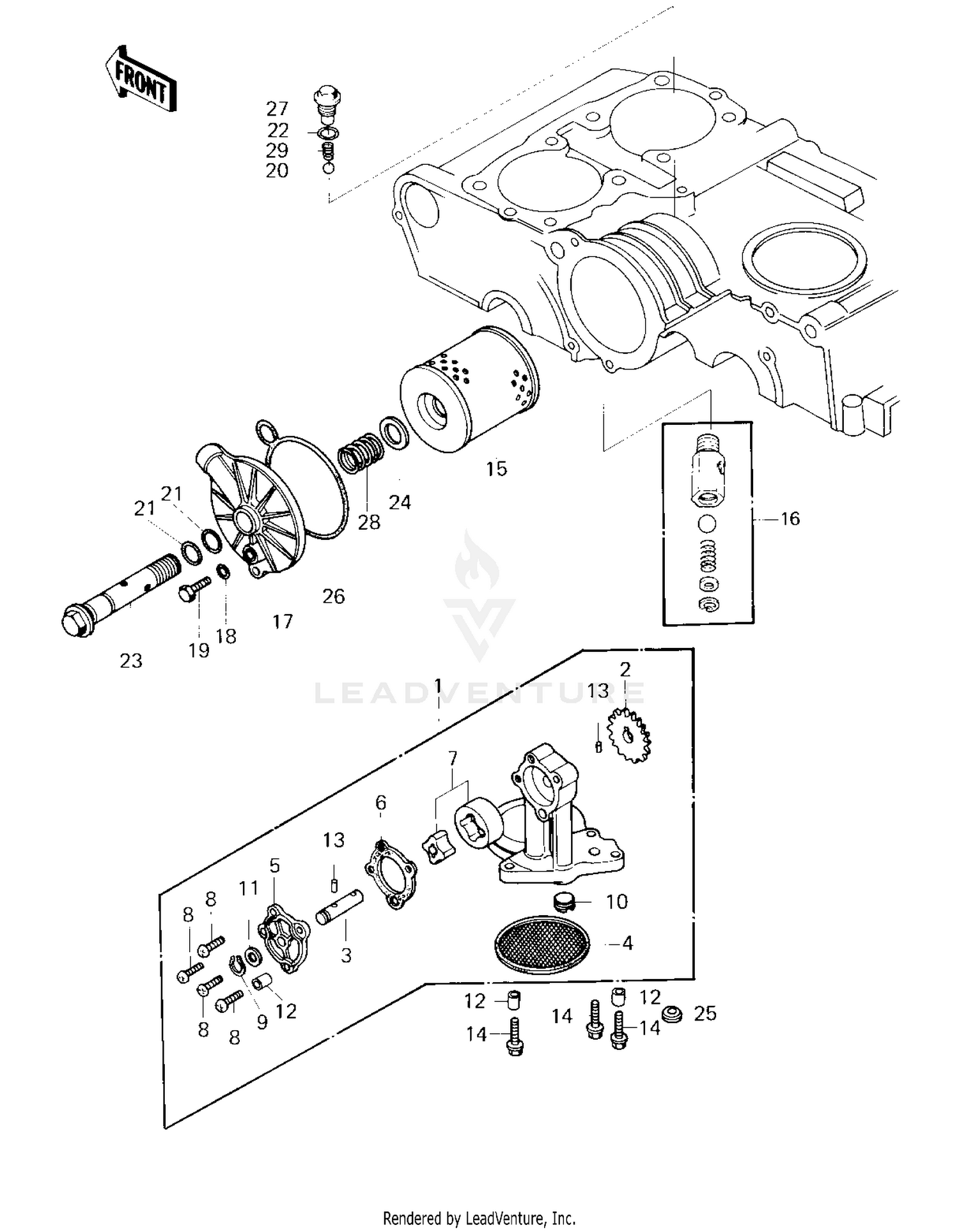

| Ref | Part Number | Description |
|---|
| 1 |
16082-062 |
OIL PUMP ASSY Price: $286.02 |
| 3 |
16086-004 |
SHAFT,OIL PUMP Price: $23.85 |
| 4 |
16111-004 |
STRAINER,OIL PUMP Price: $44.36 |
| 5 |
16142-004 |
COVER,OIL PUMP Price: $32.08 |
| 6 |
16145-003 |
GASKET,OIL PUMP Price: $4.04 |
| 7 |
16154-003 |
ROTOR ASSY,OIL PUMP Price: $88.29 |
| 8 |
220AA0622 |
SCREW-PAN HEAD,6X22 This part replaces 220B0622. Price: $3.97 |
| 9 |
480J1100 |
CIRCLIP-TYPE-C,11MM Price: $1.24 |
| 10 |
92013-008 |
SCREW,SLOTTED Price: $3.68 |
| 11 |
92022-311 |
WASHER,11.2X15X1 Price: $3.92 |
| 12 |
92043-1302 |
PIN,DOWEL,8X10 Price: $1.03 |
| 13 |
92042-041 |
PIN,DOWEL,4X12.8 Price: $6.57 |
| 14 |
92003-109 |
BOLT,HEX HEAD,6X41 Price: $6.67 |
| 15 |
16099-002 |
ELEMENT,OIL FILTER Price: $16.20 |
| 16 |
16130-1001 |
VALVE-ASSY-RELIEF Price: $41.16 |
| 17 |
16146-002 |
COVER,OIL FILTER Price: $31.01 |
| 18 |
670B1508 |
O RING,8MM Price: $1.29 |
| 19 |
92066-024 |
PLUG,OIL DRAIN Price: $16.70 |
| 21 |
670B2016 |
O RING,16MM Price: $1.36 |
| 22 |
670B2018 |
O RING,18MM Price: $1.42 |
| 23 |
92003-189 |
BOLT,OIL FILTER Price: $108.77 |
| 24 |
92022-1012 |
WASHER,20.5X30X1 Price: $4.34 |
| 25 |
92055-048 |
O RING,0.D=18MM Price: $4.80 |
| 26 |
92055-084 |
O RING Price: $32.48 |
| 27 |
92066-050 |
PLUG,FILTER COVER Price: $6.23 |
| 28 |
92081-1018 |
SPRING,OIL FILTER Price: $4.65 |
