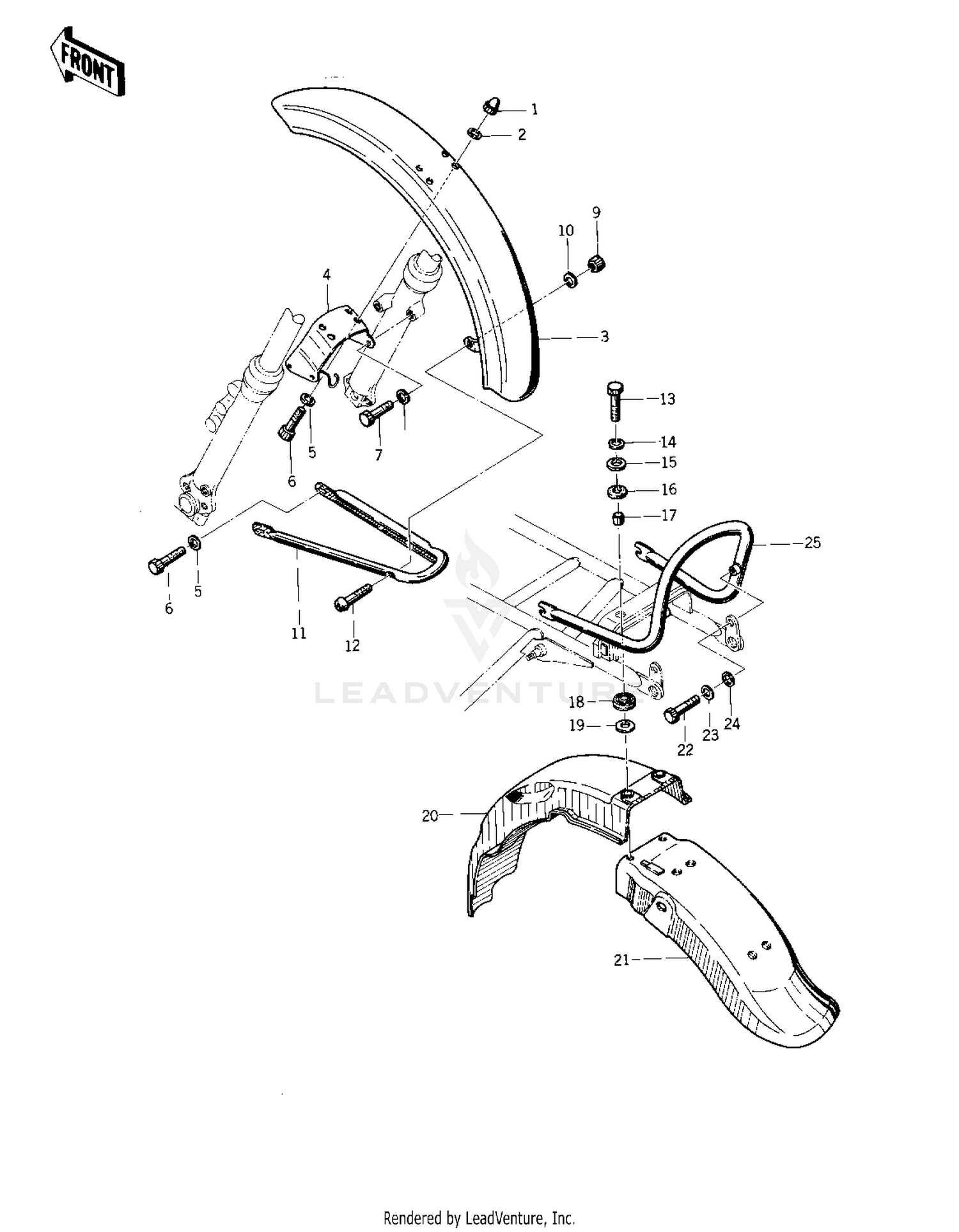

| Ref | Part Number | Description |
|---|
| 1 |
92015-009 |
NUT,6MM Price: $3.73 |
| 2 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 3 |
35004-095 |
FENDER-FR Price: $201.74 |
| 4 |
35009-035 |
BRACE,FRONT FENDER Price: $29.14 |
| 5 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 6 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
| 7 |
115BA0816 |
BOLT-SMALL-UPSET This part replaces 115G0816. Price: $0.70 |
| 8 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 9 |
311AA0500 |
NUT-HEX,5MM This part replaces 311B0500. Price: $0.47 |
| 10 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 11 |
35010-027 |
STAY,FRONT FENDER Price: $67.77 |
| 12 |
222E0516A |
SCREW OVL CNTSNK 5X16 Price: $3.02 |
| 12 |
222E0520A |
SCREW,OVL CNTSNK,5X20 Price: $3.52 |
| 13 |
110N0632 |
BOLT-HEX HEAD,6X32 Price: $6.83 |
| 14 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 16 |
92075-121 |
DAMPER RUBBER,RR FEND Price: $4.56 |
| 17 |
92027-162 |
COLLAR,6.8X10X12 Price: $6.57 |
| 18 |
92075-133 |
DAMPER RUBBER,RR FEND Price: $11.55 |
| 22 |
115AA0814 |
BOLT-SMALL-UPSET,8X14 This part replaces 115B0814. Price: $0.59 |
| 23 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 24 |
411AA0800 |
WASHER-PLAIN,8MM This part replaces 411B0800. Price: $0.96 |
