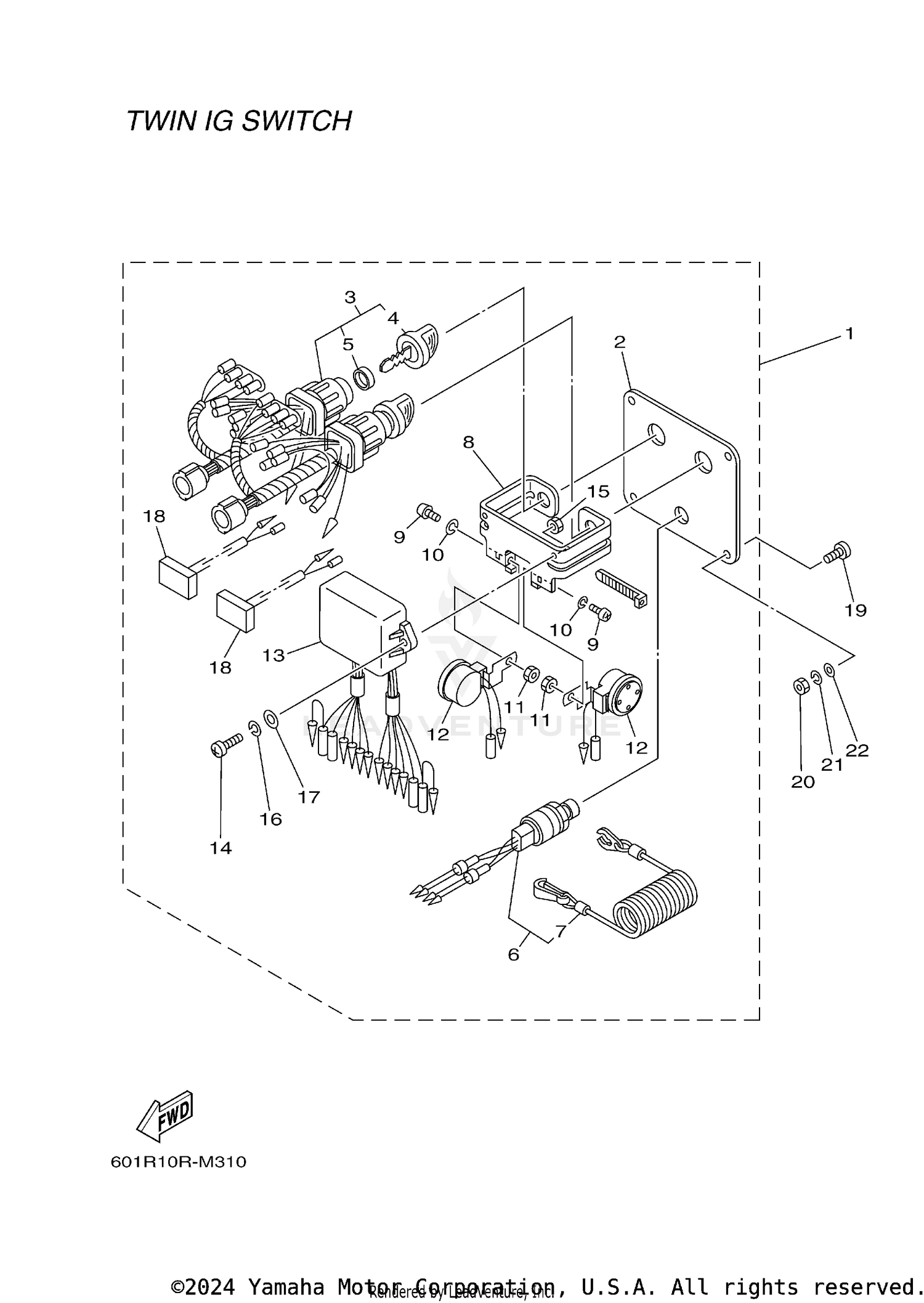

| Ref | Part Number | Description |
|---|
| 2 |
6K1-82571-02-00 |
PLATE, PANEL SWITCH Price: $94.50 |
| 3 |
6K1-82510-08-00 |
MAIN SWITCH ASSY This part replaces 6K1-82510-07-00. Price: $244.75 |
| 4 |
703-82577-00-00 |
CAP, KEY Price: $8.85 |
| 5 |
6K1-82532-00-00 |
CAP Price: $5.55 |
| 6 |
6K1-82575-01-00 |
ENGINE STOP SWITCH ASSY Price: $85.60 |
| 7 |
682-82556-00-00 |
LANYARD, STOP SWITCH Price: $8.20 |
| 8 |
6K1-83614-01-00 |
BRACKET Price: $27.25 |
| 9 |
98980-05010-00 |
SCREW, BIND Price: $2.55 |
| 10 |
92990-05100-00 |
WASHER, SPRING Price: $0.35 |
| 11 |
95380-05600-00 |
NUT Price: $9.49 |
| 12 |
688-83383-12-00 |
BUZZER Price: $62.85 |
| 13 |
6K1-85830-03-00 |
CONTROL UNIT ASSY This part replaces 6K1-85830-02-00. Price: $687.50 |
| 14 |
98980-06020-00 |
SCREW, BIND Price: $9.49 |
| 15 |
95380-06600-00 |
NUT, HEXAGON Price: $4.80 |
| 16 |
92995-06100-00 |
WASHER, SPRING This part replaces 92990-06100-00. Price: $3.45 |
| 17 |
92990-06600-00 |
WASHER, PLATE Price: $2.85 |
| 18 |
6K1-81980-00-00 |
DIODE ASSY Price: $43.45 |
| 19 |
90149-05M05-00 |
SCREW Price: $3.20 |
| 20 |
95380-05600-00 |
NUT Price: $9.49 |
| 21 |
92990-05100-00 |
WASHER, SPRING Price: $0.35 |
