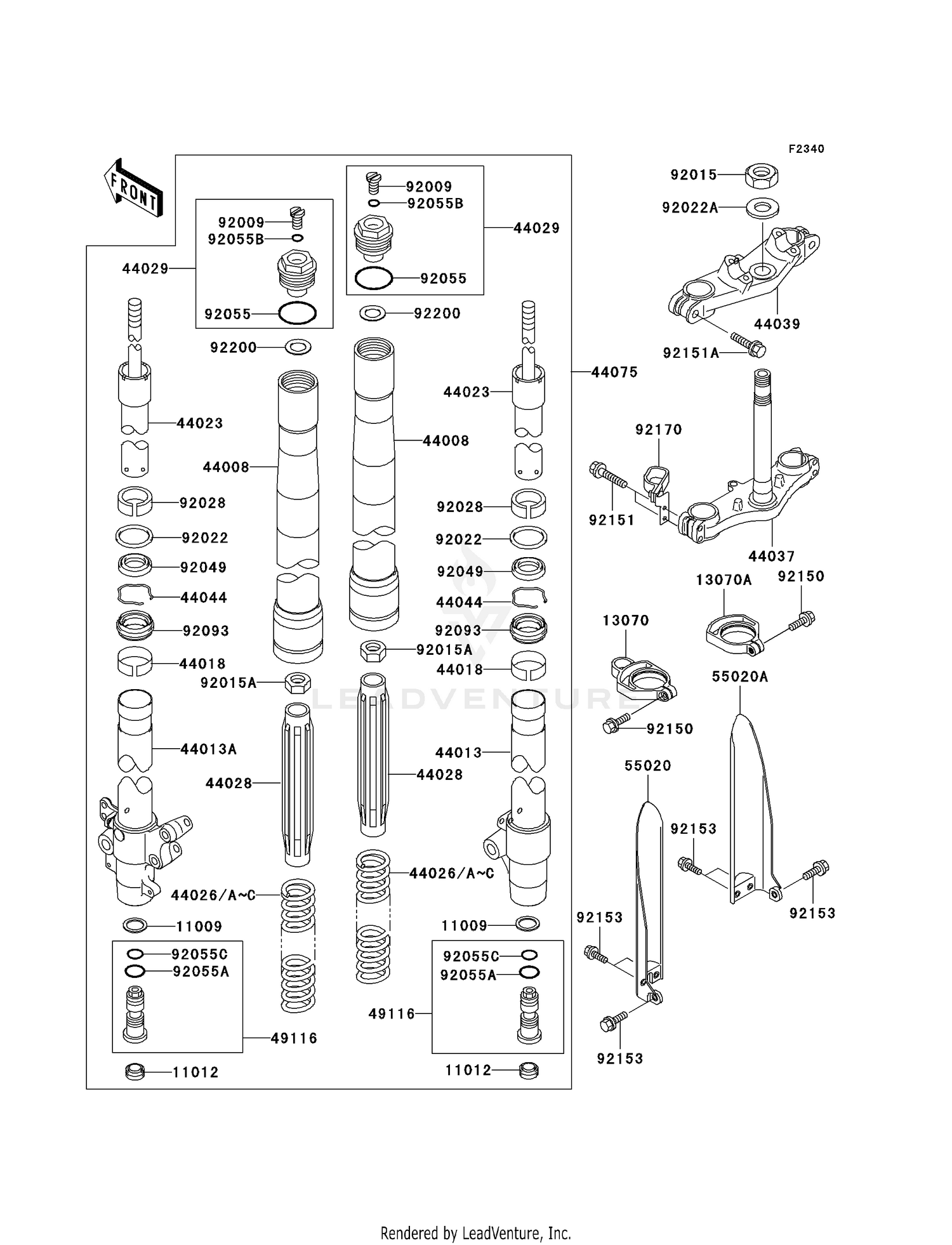

| Ref | Part Number | Description |
|---|
| 11009 |
11009-1592 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 11012 |
11012-1692 |
CAP Price: $6.16 |
| 13070 |
13070-0049-RZ |
GUIDE,PROTECTOR,LH,WH Price: $20.80 |
| 13070A |
13070-0050-RZ |
GUIDE,PROTECTOR,RH,WH Price: $20.80 |
| 44008 |
44008-1041-828 |
PIPE-FORK OUTER,GOLD Price: $465.47 |
| 44013 |
44013-1442 |
PIPE-FORK INNER,RH Price: $305.25 |
| 44013A |
44013-1484 |
PIPE-FORK INNER,LH Price: $270.31 |
| 44018 |
44018-1058 |
PISTON-FORK Price: $21.36 |
| 44023 |
44023-1119 |
CYLINDER-SET-FORK Price: $369.74 |
| 44026A |
44026-1634 |
SPRING-FRONT FORK,K=2.84N/MM Price: $60.49 |
| 44028 |
44028-1090 |
GUIDE-FORK SPRING Price: $40.90 |
| 44029 |
44029-1152 |
SEAT-FORK SPRING Price: $67.65 |
| 44037 |
44037-0032-D3 |
HOLDER-FORK UNDER,M.M Price: $339.58 |
| 44039 |
44039-0023-D3 |
HOLDER-FORK UPPER,M.M Price: $153.40 |
| 44044 |
92033-1100 |
RING-SNAP,FORK OIL This part replaces 44044-015. Price: $14.94 |
| 44075 |
44075-1131-828 |
DAMPER-SET-FORK,GOLD Price: $1,260.07 |
| 49116 |
49116-1153 |
VALVE-ASSY,FORK Price: $141.32 |
| 55020 |
55020-1611-RZ |
GUARD,FORK,LH,WHITE Price: $30.07 |
| 55020A |
55020-1612-RZ |
GUARD,FORK,RH,WHITE Price: $30.07 |
| 92009 |
92009-1568 |
SCREW Price: $7.21 |
| 92015 |
92210-1521 |
NUT,STEERING STEM,22MM This part replaces 92015-1653. Price: $16.69 |
| 92015A |
92015-1839 |
NUT Price: $19.64 |
| 92022 |
92022-1275 |
WASHER,FRONT FORK Price: $7.34 |
| 92022A |
92022-1873 |
WASHER,STEERING STEM Price: $7.45 |
| 92028 |
92028-1656 |
BUSHING Price: $16.18 |
| 92049 |
92049-1394 |
SEAL-OIL,FORK OUTER TUBE Price: $19.64 |
| 92055 |
92055-1123 |
RING-O Price: $6.22 |
| 92055A |
670B2018 |
O RING,18MM This part replaces 92055-1156. Price: $1.42 |
| 92055B |
92055-1441 |
RING-O,2.8X6.6X1.9 Price: $2.93 |
| 92055C |
92055-1502 |
RING-O,FORK VALVE Price: $7.45 |
| 92093 |
92093-1426 |
SEAL,FORK OUTER TUBE Price: $22.90 |
| 92150 |
92150-1802 |
BOLT,5X16 Price: $5.00 |
| 92151 |
132BA0840 |
BOLT-FLANGED-SMALL,8X40 This part replaces 92151-1877. Price: $5.05 |
| 92151A |
132BA0835 |
BOLT-FLANGED-SMALL,8X35 This part replaces 92151-1878. Price: $4.76 |
| 92153 |
92153-0936 |
BOLT,FLANGED,6X14 Price: $2.97 |
| 92170 |
92170-1810 |
CLAMP Price: $9.49 |
