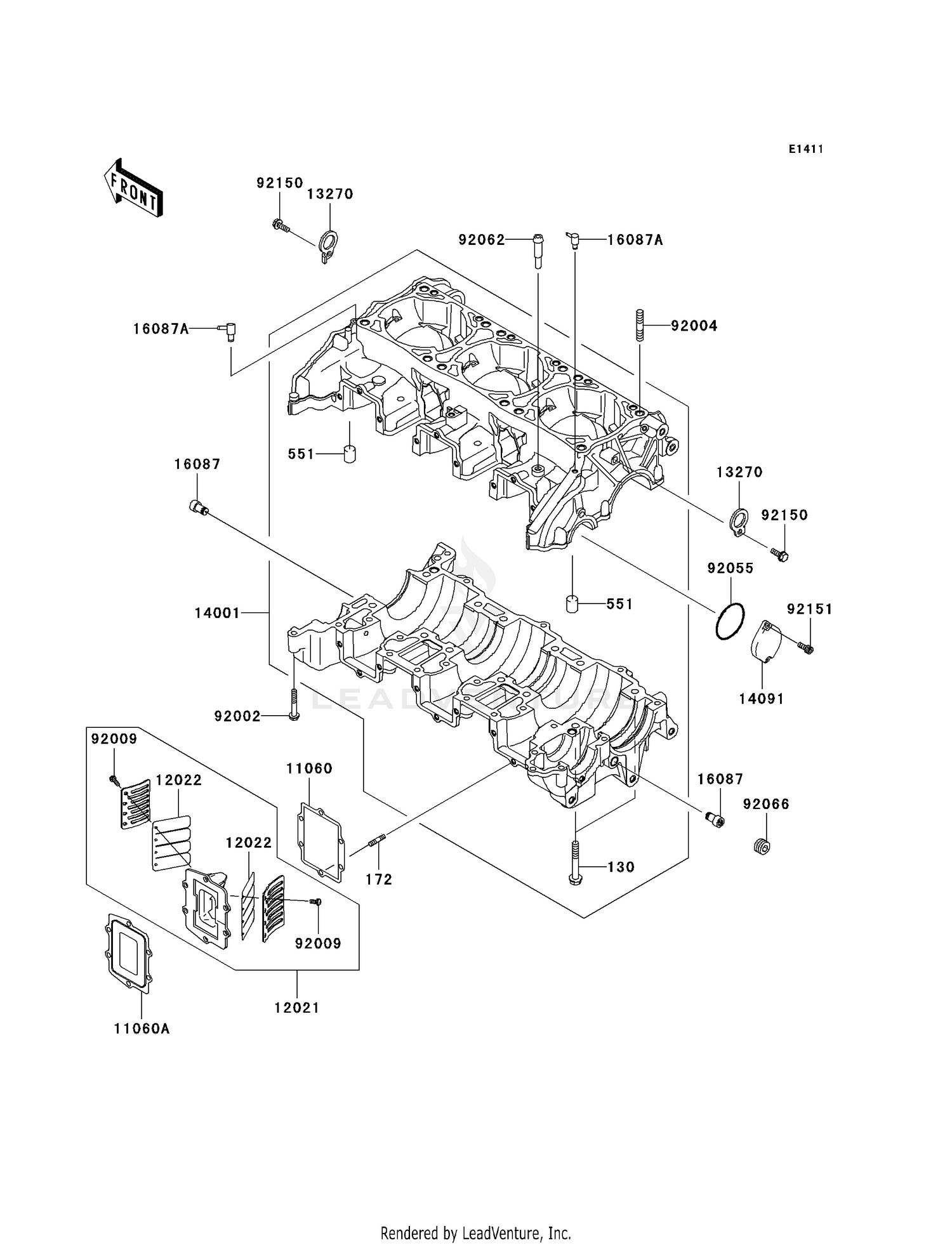

CRANKCASE
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 130CD0855 | BOLT-FLANGED,8X55 This part replaces 130Z0855. Price: $6.18 |
| 172 | 172R0620 | BOLT-STUD Price: $7.83 |
| 551 | 551R1012 | PIN-DOWEL Price: $6.57 |
| 11060 | 11060-3717 | GASKET,REED VALVE Price: $17.78 |
| 11060A | 11060-3757 | GASKET,REED VALVE Price: $17.78 |
| 12021 | 12021-3711 | VALVE-ASSY-REED Price: $142.69 |
| 12022 | 12022-3709 | VALVE-REED Price: $32.29 |
| 13270 | 13270-3899 | PLATE Price: $7.24 |
| 14001 | 14001-5377 | SET-CRANKCASE Price: $917.52 |
| 14091 | 14091-3736 | COVER,BALANCER Price: $34.05 |
| 16087 | 16087-3707 | VALVE-CHECK Price: $36.94 |
| 16087A | 16087-3708 | VALVE-CHECK Price: $22.58 |
| 92002 | 92002-3716 | BOLT,6X40 Price: $5.52 |
| 92004 | 92004-3731 | STUD,10X35 Price: $7.51 |
| 92009 | 92009-1371 | SCREW,3X6 Price: $4.18 |
| 92055 | 92055-1397 | RING-O Price: $5.23 |
| 92062 | 92062-3705 | NOZZLE Price: $8.44 |
| 92066 | 92066-3765 | PLUG Price: $11.64 |
| 92150 | 92150-3729 | BOLT,6X18 Price: $4.69 |
