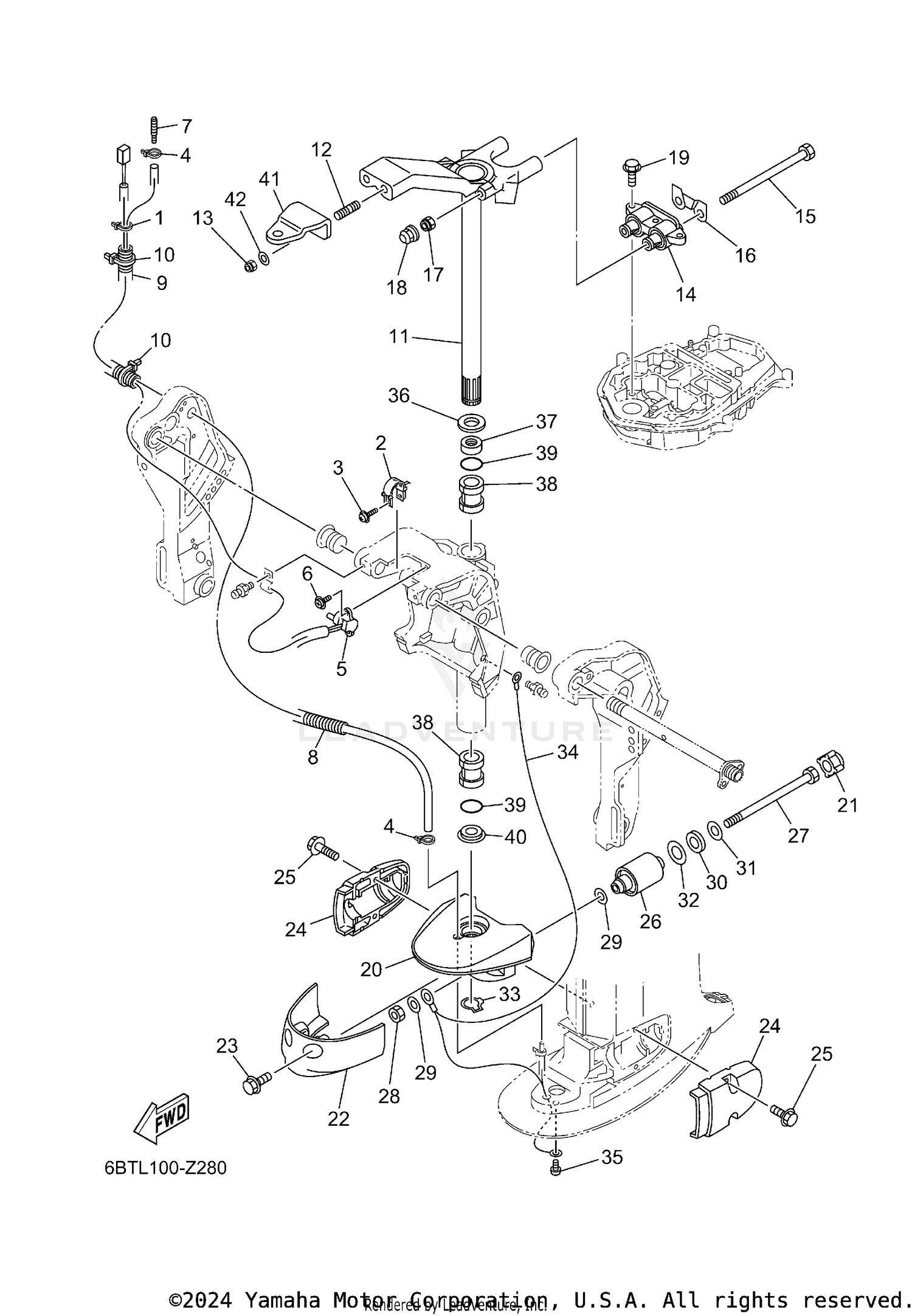

| Ref | Part Number | Description |
|---|
| 1 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 2 |
6K9-43139-11-00 |
CAM, TRIM SENDER Price: $19.50 |
| 3 |
90159-05059-00 |
SCREW, WITH WASHER Price: $3.55 |
| 5 |
67H-83672-03-00 |
TRIM SENDER Price: $178.99 |
| 6 |
97985-06216-00 |
SCREW, WITH WASHER Price: $3.20 |
| 9 |
90447-19014-00 |
TUBE (L300) Price: $5.50 |
| 10 |
90465-13M18-00 |
CLAMP Price: $1.85 |
| 12 |
90116-10063-00 |
BOLT, STUD Price: $4.05 |
| 13 |
90185-10027-00 |
NUT, SELF-LOCKING Price: $2.40 |
| 15 |
90109-08229-00 |
BOLT Price: $18.90 |
| 16 |
66T-44526-30-00 |
PLATE Price: $34.95 |
| 17 |
90185-08018-00 |
NUT, SELF-LOCKING Price: $4.60 |
| 18 |
66T-44194-10-00 |
CAP Price: $7.60 |
| 19 |
97E95-08530-00 |
BOLT, HEXAGON W/W Price: $1.50 |
| 21 |
69W-44575-01-00 |
DAMPER, LOWER MOUNT RUBBER Price: $8.60 |
| 24 |
6C5-44552-00-8D |
HOUSING, LOWER MOUNT RUBBER 2 Price: $68.30 |
| 25 |
90119-08094-00 |
BOLT, WITH WASHER Price: $5.55 |
| 27 |
90109-12MA3-00 |
BOLT Price: $45.95 |
| 28 |
95380-12700-00 |
NUT Price: $9.10 |
| 29 |
90201-12M16-00 |
WASHER, PLATE Price: $4.60 |
| 30 |
90202-21100-00 |
WASHER, PLATE Price: $8.55 |
| 31 |
90201-13M19-00 |
WASHER, PLATE Price: $7.80 |
| 32 |
90201-22M05-00 |
WASHER, PLATE Price: $4.50 |
| 33 |
93410-28M06-00 |
CIRCLIP Price: $14.35 |
| 35 |
97885-06008-00 |
SCREW, PAN HEAD Price: $1.15 |
| 36 |
90201-30M00-00 |
WASHER, PLATE Price: $7.15 |
| 37 |
90386-30M78-00 |
BUSH Price: $7.70 |
| 38 |
90386-30M77-00 |
BUSH Price: $15.65 |
| 39 |
93210-29M94-00 |
O-RING Price: $6.40 |
| 40 |
90386-30M60-00 |
BUSH Price: $8.60 |
| 41 |
65W-48511-01-00 |
HOOK, STEERING Price: $49.20 |
