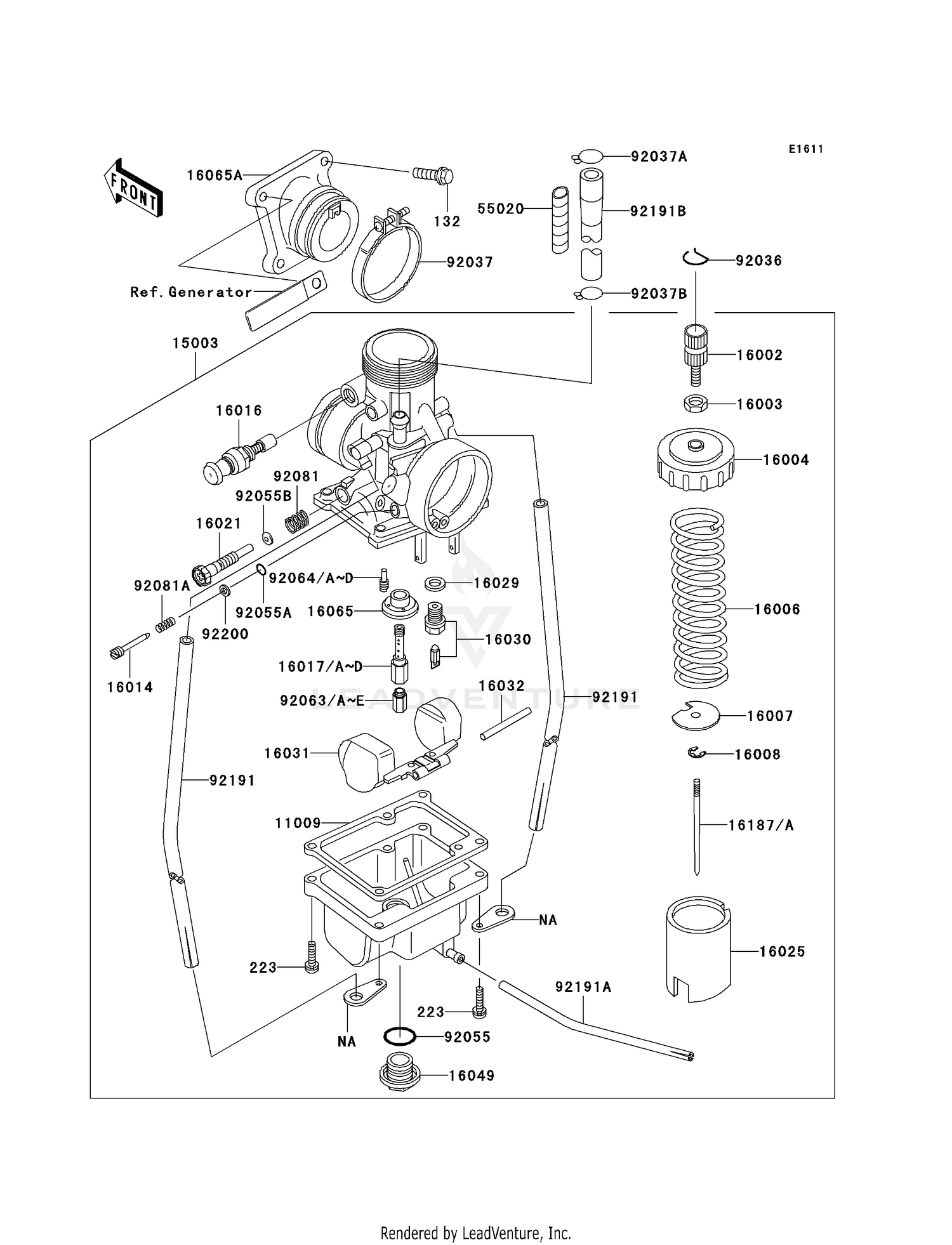

| Ref | Part Number | Description |
|---|
| 132 |
132BC0620 |
BOLT-FLANGED-SMALL,6X20 Price: $1.34 |
| 223 |
223AA0416 |
SCREW-PAN-WS-CROS,4X16 Price: $0.68 |
| 11009 |
11009-1147 |
GASKET,FLOAT CHAMBER Price: $10.19 |
| 15003 |
15003-1669 |
CARBURETOR-ASSY Price: $188.07 |
| 16002 |
16002-011 |
ADJUSTER-CABLE Price: $13.97 |
| 16003 |
16003-006 |
NUT,ADJUST LOCK Price: $7.34 |
| 16004 |
16004-025 |
CAP-CHAMBER Price: $33.28 |
| 16006 |
16006-023 |
SPRING,THROTTLE VALVE Price: $15.02 |
| 16007 |
16007-023 |
SEAT-SPRING,THROTTLE VALVE Price: $10.19 |
| 16008 |
16008-1010 |
CLAMP Price: $3.26 |
| 16014 |
16014-1116 |
SCREW-PILOT AIR Price: $15.24 |
| 16016 |
16016-0008 |
PLUNGER,STARTER Price: $43.32 |
| 16017A |
16017-1413 |
JET-NEEDLE,O-0 Price: $43.99 |
| 16021 |
16021-1224 |
SCREW-THROTTLE STOP Price: $16.14 |
| 16025 |
16025-1040 |
VALVE-THROTTLE,CA1.5 Price: $48.29 |
| 16029 |
16029-004 |
GASKET,FLOAT VALVE SEAT Price: $3.89 |
| 16030 |
16030-1095 |
VALVE-FLOAT,#2.5 Price: $49.99 |
| 16031 |
16031-1005 |
FLOAT Price: $53.59 |
| 16032 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
| 16049 |
16049-1001 |
COVER-MAIN JET Price: $26.99 |
| 16065 |
16065-1020 |
HOLDER,JET NEEDLE Price: $18.54 |
| 16065A |
16065-1366 |
HOLDER-CARBURETOR Price: $65.62 |
| 16187 |
16187-1226 |
NEEDLE-JET,5GSP68 Price: $35.93 |
| 55020 |
55020-1787 |
GUARD,FUEL TUBE Price: $4.96 |
| 92036 |
92036-018 |
RING-SNAP Price: $3.89 |
| 92037 |
92037-1305 |
CLAMP Price: $9.06 |
| 92037A |
92037-147 |
CLAMP,TUBE Price: $7.34 |
| 92037B |
92037-1712 |
CLAMP Price: $5.00 |
| 92055 |
92055-1061 |
RING-O,MAIN JET COVER Price: $8.58 |
| 92055A |
92055-1658 |
RING-O,AIR SCREW Price: $6.00 |
| 92055B |
92055-2068 |
RING-O Price: $1.95 |
| 92063B |
92063-021 |
JET-MAIN,#190 Price: $14.10 |
| 92064B |
92064-1020 |
PILOT JET,#A25 This part replaces 92064-032. Price: $19.34 |
| 92081 |
92081-1152 |
SPRING,THROTTLE ADJUST Price: $6.16 |
| 92081A |
92081-1153 |
SPRING,STOP SCREW Price: $4.96 |
| 92191 |
92191-1495 |
TUBE,3X5X280 Price: $7.30 |
| 92191A |
92191-1496 |
TUBE,3X5X220 Price: $6.31 |
| 92191B |
92191-1611 |
TUBE Price: $2.94 |
