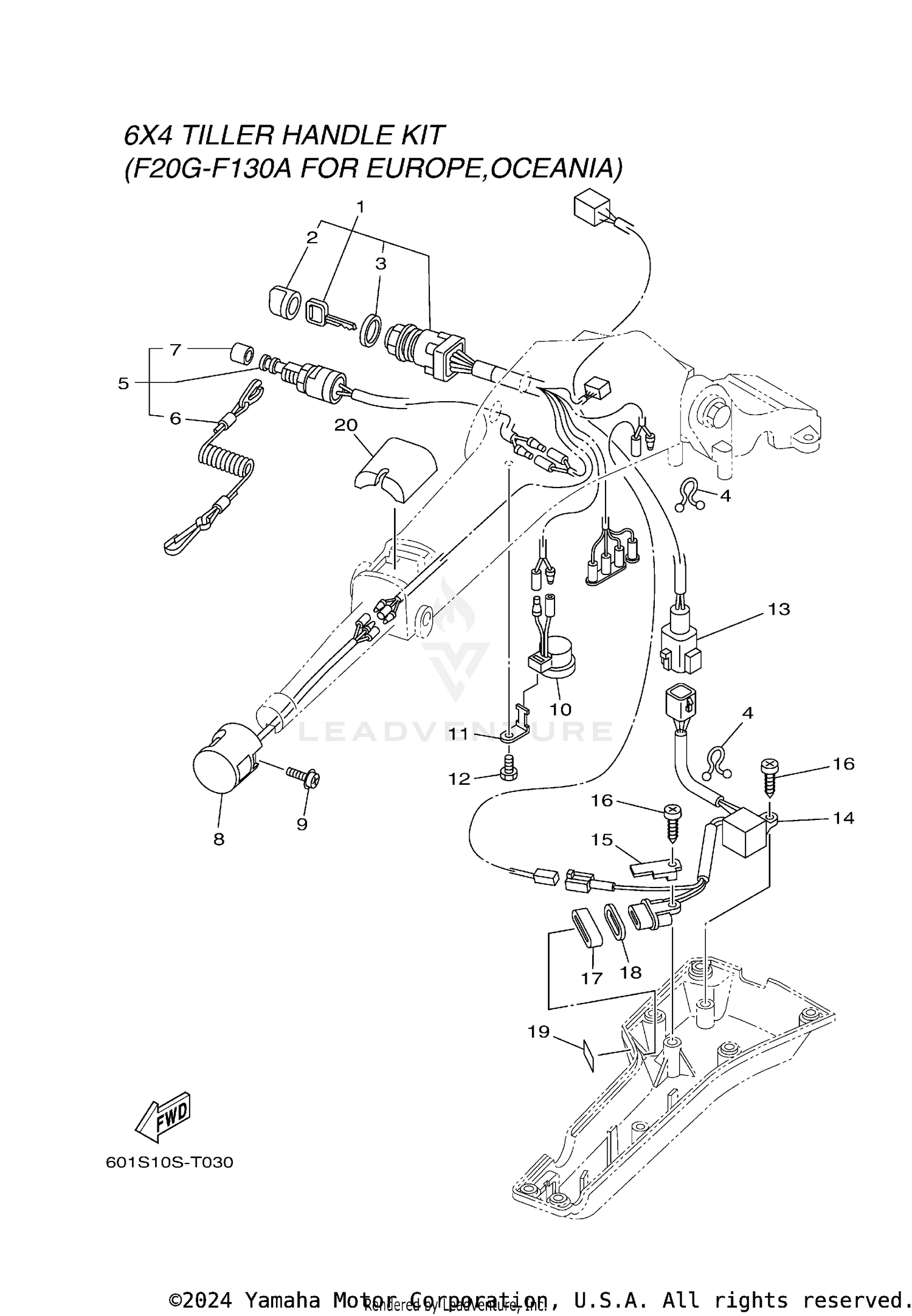

BASE HANDLE ELECTRICAL 2
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6X4-82510-42-00 | MAIN SWITCH ASSY Price: $264.90 |
| 2 | 676-82577-01-00 | CAP, KEY Price: $6.55 |
| 3 | 703-82532-00-00 | CAP Price: $9.45 |
| 4 | 90465-18147-00 | CLAMP This part replaces 90464-08M07-00. Price: $8.49 |
| 5 | 69W-82575-00-00 | ENGINE STOP SWITCH ASSY Price: $84.00 |
| 6 | 682-82556-00-00 | LANYARD, STOP SWITCH Price: $8.20 |
| 7 | 689-8257Y-00-00 | CAP Price: $9.05 |
| 8 | 6X4-82563-01-00 | TRIM & TILT SWITCH ASSY Price: $179.25 |
| 9 | 97985-06216-00 | SCREW, WITH WASHER This part replaces 97980-06216-00. Price: $3.20 |
| 10 | 6X4-83383-00-00 | BUZZER Price: $53.30 |
| 11 | 6X4-83386-00-00 | STAY, BUZZER Price: $4.05 |
| 12 | 97D95-06014-00 | BOLT, HEXAGON DEEP Price: $1.55 |
| 13 | 6X4-83653-20-00 | WIRE, LEAD (L:700MM) Price: $66.05 |
| 14 | 6C5-84301-10-00 | PILOT LIGHT ASSY 1 This part replaces 6C5-84301-00-00. Price: $94.99 |
| 15 | 6X4-44114-00-00 | STOPPER Price: $8.70 |
| 16 | 97780-60520-00 | SCREW, TAPPING This part replaces 97780-60620-00. Price: $4.49 |
| 17 | 6X4-42727-01-00 | GROMMET Price: $3.80 |
| 18 | 6FM-83589-00-00 | GASKET This part replaces 6H4-83589-00-00. Price: $3.55 |
| 19 | 6X4-85415-00-00 | MARK, SIGNAL LAMP Price: $4.20 |
