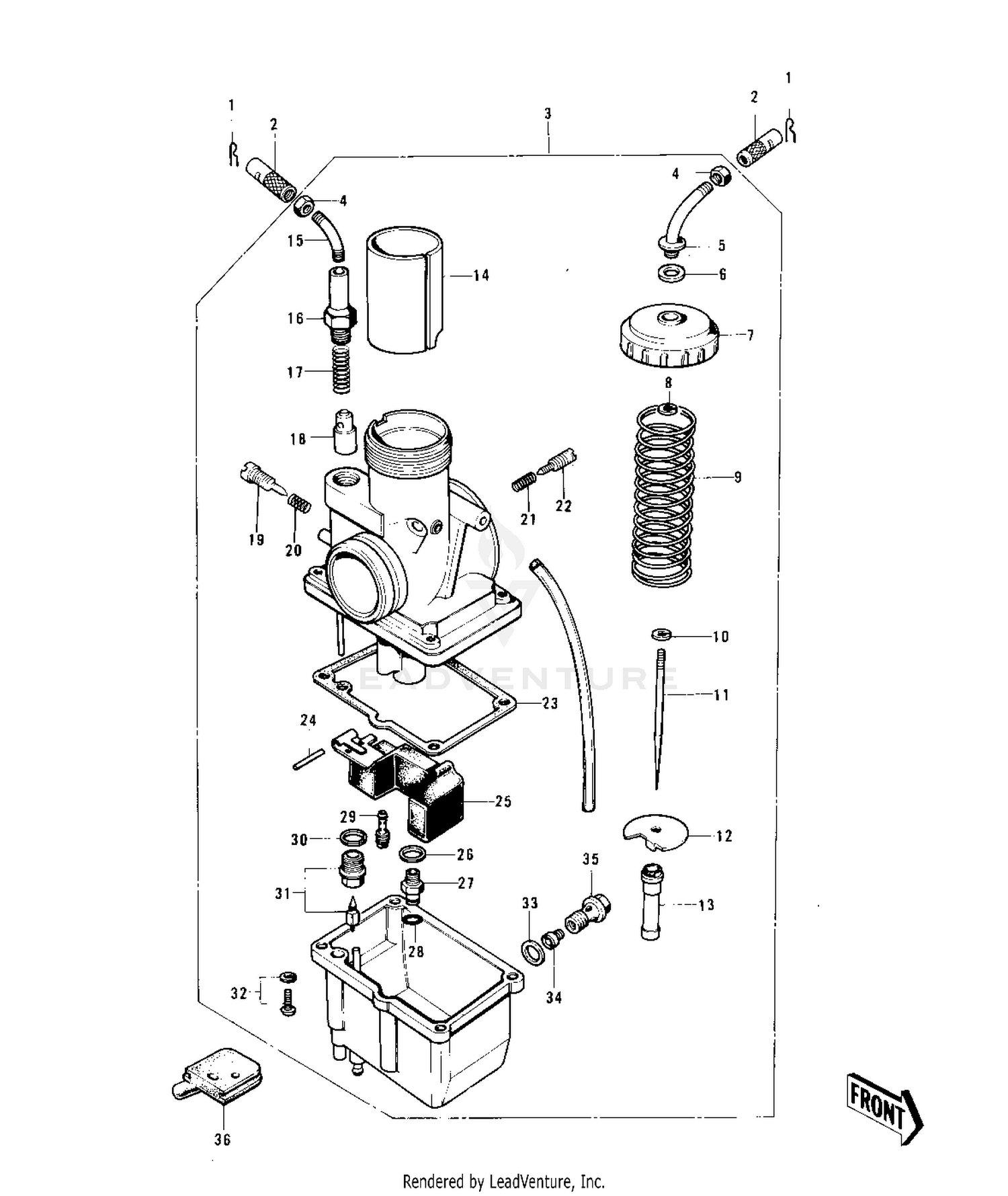

| Ref | Part Number | Description |
|---|
| 1 |
92036-018 |
RING-SNAP Price: $3.89 |
| 2 |
16002-007 |
CABLE ADJUSTER Price: $11.09 |
| 3 |
16001-199 |
CARBURETOR ASSY Price: $322.42 |
| 4 |
16003-004 |
NUT CABLE ADJUST LOCK Price: $7.34 |
| 5 |
16077-011 |
GUIDE,CABLE Price: $20.65 |
| 6 |
16029-007 |
GASKET,CABLE GUIDE Price: $10.37 |
| 7 |
16004-024 |
CAP,MIXING CHAMBER Price: $15.77 |
| 8 |
16008-011 |
CIRCLIP,CABLE GUIDE Price: $6.85 |
| 9 |
16006-029 |
SPRING,THROTTLE VALVE Price: $25.52 |
| 10 |
16008-010 |
CIRCLIP Price: $9.21 |
| 11 |
16009-040 |
JET NEEDLE 4EJ3 Price: $51.24 |
| 12 |
16007-023 |
SEAT-SPRING,THROTTLE VALVE Price: $10.19 |
| 13 |
16017-085 |
NEEDLE JET,O-4 Price: $33.83 |
| 15 |
16077-010 |
GUIDE,CABLE Price: $21.56 |
| 16 |
16012-017 |
CAP,STARTER PLUNGER Price: $23.04 |
| 17 |
16013-003 |
SPRING-PLUNGER Price: $6.16 |
| 18 |
16016-002 |
PLUNGER-ENRICHNER Price: $31.85 |
| 19 |
16021-023 |
SCREW,THROTTLE STOP Price: $23.41 |
| 20 |
16022-005 |
SPRING THR STOP SCREW Price: $8.68 |
| 21 |
16022-007 |
SPRING,PILOT AIR SCREW Price: $8.13 |
| 22 |
16014-002 |
SCREW PILOT AIR ADJST Price: $18.22 |
| 23 |
16019-023 |
GASKET,FLOAT CHAMBER Price: $19.49 |
| 24 |
16032-006 |
FLOAT PIN Price: $7.29 |
| 25 |
16031-026 |
FLOAT Price: $67.26 |
| 26 |
16034-001 |
WASHER MAIN JET Price: $4.31 |
| 27 |
16065-008 |
HOLDER-NEEDLE JET Price: $22.74 |
| 28 |
92055-044 |
RING-O Price: $10.38 |
| 29 |
92064-022 |
JET-PILOT,#30 Price: $17.03 |
| 30 |
16029-004 |
GASKET,FLOAT VALVE SEAT Price: $3.89 |
| 31 |
16030-025 |
FLOAT VALVE ASSY,#2.6 Price: $125.08 |
| 32 |
223AA0414 |
SCREW-PAN-WS-CROS,4X14 This part replaces 223B0414. Price: $1.52 |
| 33 |
16034-005 |
GASKET-BANJO BOLT Price: $7.20 |
| 35 |
92001-097 |
BOLT-BANJO Price: $22.55 |
