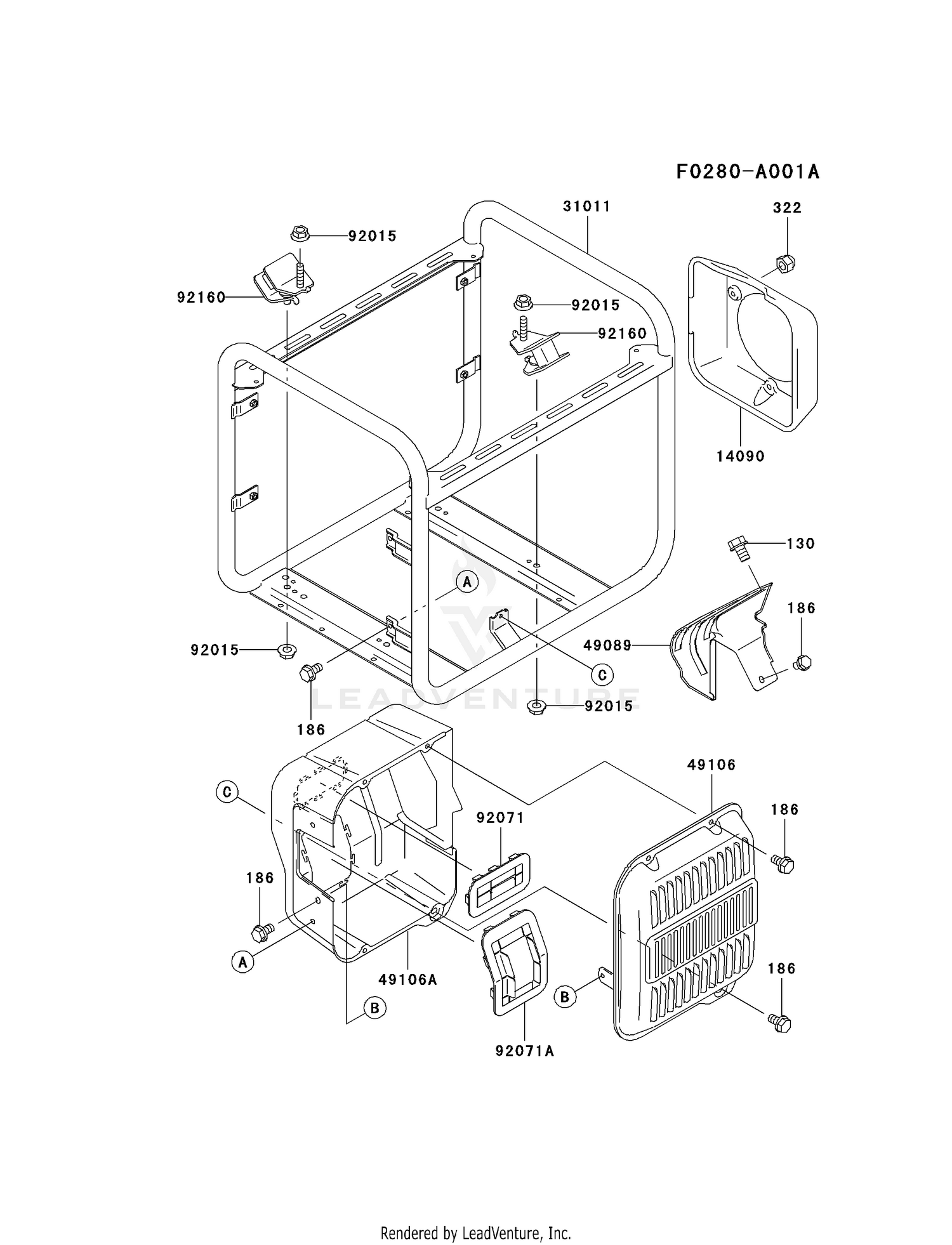

FRAME
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 130AA0812 | BOLT-FLANGED,8X12 This part replaces 130B0812. Price: $0.78 |
| 186 | 186AB0612 | BOLT-UPSET-WP This part replaces 186C0612. Price: $0.97 |
| 14090 | 14090-2050-9H | COVER Price: $30.44 |
| 31011 | 31011-2090-XM | FRAME Price: $305.10 |
| 49089 | 49089-2381-9H | SHROUD-ENGINE Price: $29.61 |
| 49106 | 49106-2454-9H | COVER-MUFFLER Price: $29.28 |
| 49106A | 49106-2534-9H | COVER-MUFFLER Price: $55.87 |
| 92015 | 92015-1014 | NUT,FLANGED,8MM Price: $0.65 |
| 92071 | 92071-2128 | GROMMET Price: $6.97 |
| 92071A | 92071-2141 | GROMMET Price: $11.56 |
| 92160 | 92160-2035 | DAMPER Price: $20.02 |
